Hayward 2025ADC PoolVac XL Automatic Suction Pool Cleaner Instruction Manual

1. Uvod

The Hayward PoolVac XL is an automatic suction pool cleaner designed specifically for concrete pools. It operates silently by utilizing your existing pool filtration system, eliminating the need for an additional booster pump. Its exclusive AquaPilot programmed steering ensures thorough and systematic cleaning of your pool's floor and coves.

Key features of the PoolVac XL include:

• Proven and reliable suction cleaner technology.
• SmartDrive steering for comprehensive pool coverage.
• Enhanced suction path designed for efficient and faster debris pickup.
• Easy connection in under 10 minutes, requiring no tools.
• Silent operation, contributing to a peaceful pool environment.

2. Postavljanje i instalacija

Before installation, ensure your pool's filtration system is running. Connect the PoolVac XL directly to your skimmer or a dedicated suction port. No special tools are required for this process, making setup quick and straightforward.

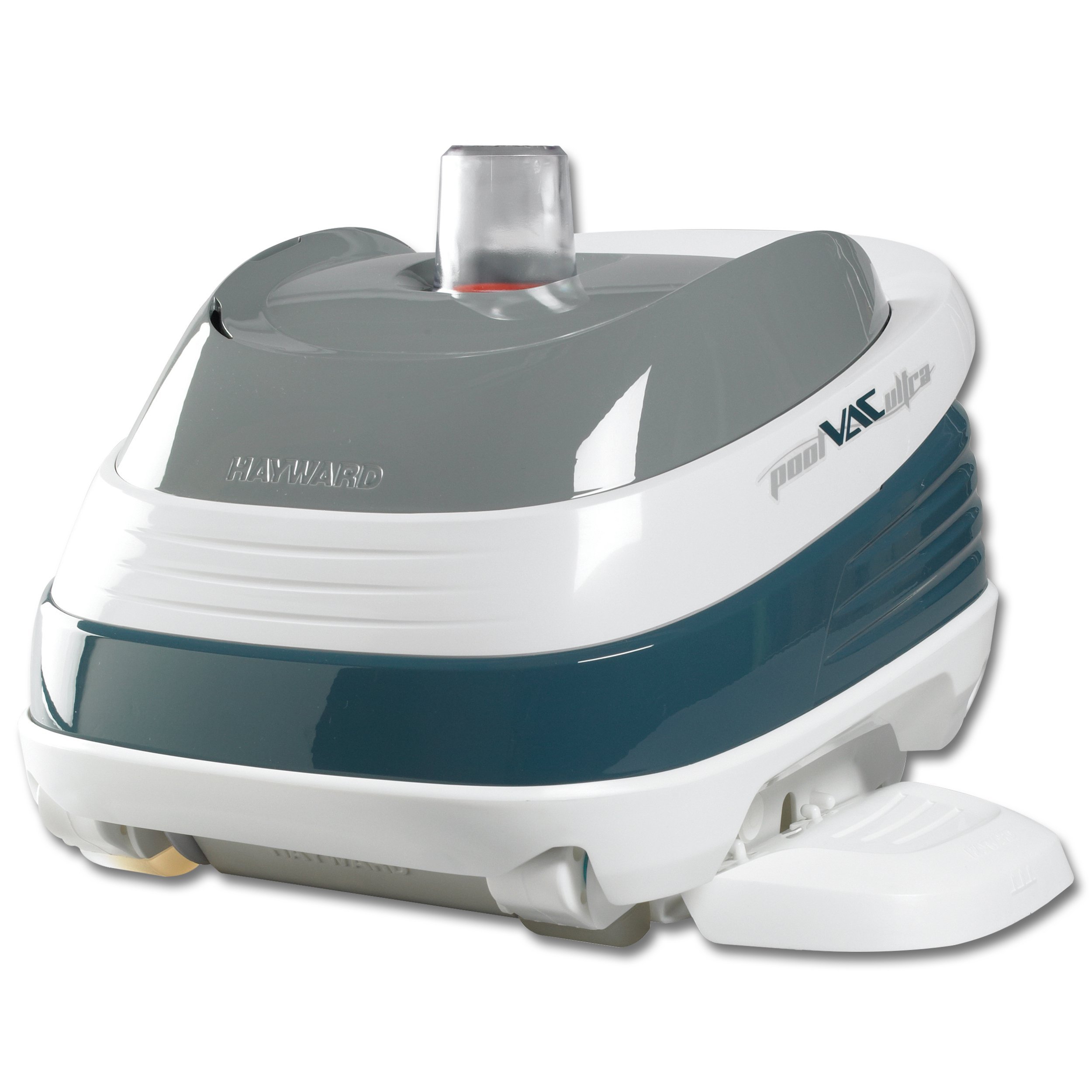

Image: Hayward 2025ADC PoolVac XL Automatic Suction Pool Cleaner, shown from a top-front angle, white and blue-gray in color.

Hose Length Adjustment: Proper hose length is crucial for optimal cleaning performance. The cleaner should be able to reach all areas of your pool without excess hose causing tangles. Start with the manufacturer's recommended length and adjust by removing or adding hose sections as needed. An overly long hose can lead to tangling, while a short hose will limit coverage and prevent the cleaner from reaching all pool surfaces.

3. Operacija

Once connected and the filtration system is active, the PoolVac XL begins its cleaning cycle. It utilizes its exclusive AquaPilot programmed steering system, which guides the cleaner in a predetermined series of turns. This ensures systematic coverage of the pool floor and coves, maximizing cleaning efficiency.

The unique turbine-drive system facilitates smooth and silent movement across the pool surface. The cleaner's enhanced vacuum wings and skirt are specifically designed to maintain constant suction power, effectively picking up various types of debris, from small particles to larger leaves. All collected debris is directed into your pool's existing filtration system.

4. Održavanje

Regular maintenance is essential to ensure the longevity and optimal efficiency of your PoolVac XL. Periodically inspect the cleaner for any visible wear on components such as the vacuum wings, skirt, and hose sections. While designed for durability, continuous operation and exposure to pool chemicals can cause certain parts to wear over time.

Checking for Clogs: If the cleaner's movement becomes sluggish, erratic, or stops entirely, check for debris accumulation. Inspect the suction path, the turbine system, and the hose for any trapped leaves, twigs, or other obstructions. Remove any blockages to restore proper function.

Zamjena dijela: Wearable parts, including the side flappers and internal gears responsible for movement, may require replacement after several years of use. Consult your authorized Hayward dealer or service center for genuine Hayward replacement parts to ensure continued performance and compatibility.

5. Rješavanje problema

• Cleaner Not Moving or Stuck:
  • Ensure adequate suction from your pool pump. Adjust valves to direct more suction to the cleaner's port if necessary.
  • Check for clogs in the cleaner's intake, turbine, or hose. Remove any trapped debris.
  • Verify the hose length is appropriate for your pool size to prevent tangling or restricted movement.
  • Inspect the internal steering mechanism for damage or obstruction.
• Incomplete Pool Coverage:
  • Confirm the hose length allows the cleaner to reach all areas of the pool.
  • Check for proper water flow and suction from the pump.
  • Ensure the cleaner is not getting stuck on obstacles or pool features.

6. Specifikacije

7. Jamstvo i podrška

The Hayward 2025ADC PoolVac XL is generally covered by a 2-year warranty. However, the manufacturer's specific warranty description states a 1-year warranty. Please refer to the documentation included with your product for the precise warranty terms, conditions, and registration details applicable to your purchase.

For technical assistance, replacement parts, or warranty claims, please contact Hayward customer support or an authorized Hayward service center. It is recommended to keep your purchase receipt and the product's model number (2025ADC) readily available when seeking support.
