1. Uvod i krajview
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Litex E-WOD52WW5C 52-inch Indoor/Outdoor Ceiling Fan. Please read all instructions carefully before beginning installation to ensure proper function and safety.
The Litex All Weather Collection ceiling fan is designed for versatile use in both indoor and outdoor environments. It features five white ABS blades and a single light kit with frost glass, offering both functionality and a modern aesthetic. This fan is engineered for reliable performance and quiet operation.

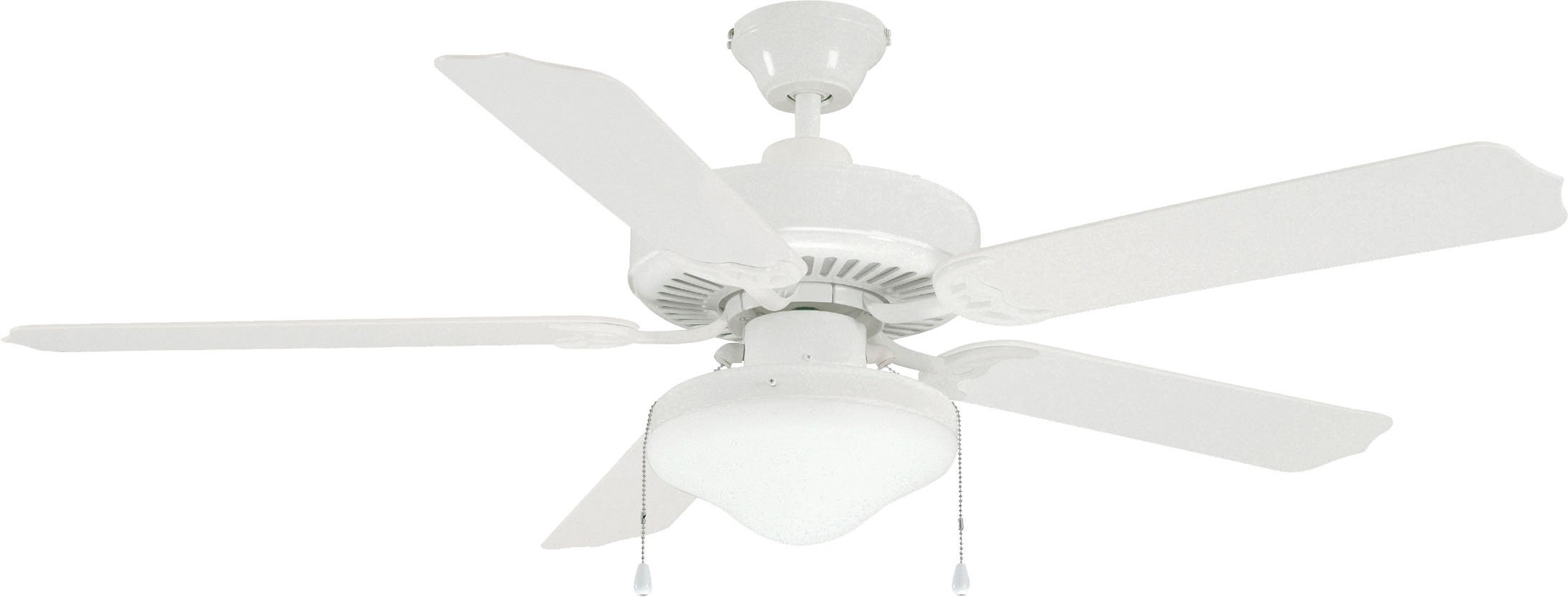

Image 1.1: Litex E-WOD52WW5C 52-inch Indoor/Outdoor Ceiling Fan. This image displays the complete ceiling fan assembly, including the motor housing, five white ABS blades, and the integrated light kit with frosted glass.
2. Sigurnosne informacije
UPOZORENJE: To reduce the risk of fire, electric shock, or personal injury, always follow these safety guidelines:
- Prije instalacije ili servisiranja isključite napajanje na prekidaču ili kutiji s osiguračima.
- Sve ožičenje mora biti u skladu s nacionalnim i lokalnim električnim propisima. Ako niste upoznati s ožičenjem, obratite se kvalificiranom električaru.
- Provjerite može li mjesto postavljanja podnijeti težinu ventilatora (otprilike 18 funti).
- Ne koristite ventilator s oštećenim lopaticama ili kućištem.
- Izbjegavajte postavljanje predmeta na putanju lopatica ventilatora.
- Provjerite jesu li svi spojevi sigurni i pravilno izolirani.
3. Sadržaj paketa
Carefully unpack your ceiling fan and inspect the contents. Ensure all items listed below are present and undamaged. If any parts are missing or damaged, contact customer service.
- Kućište motora stropnog ventilatora
- Five (5) White ABS Blades
- Light Kit with Frost Glass
- Two (2) Candelabra Bulbs (60W max each)
- 6-Inch Down-rod
- Montažni nosač i hardver
- Daljinski upravljač i prijemnik
- Priručnik s uputama
4. Postavljanje i instalacija
This ceiling fan supports dual-mount installation: flush-mount for lower ceilings or down-rod mounting. The included 6-inch down-rod accommodates ceiling slopes up to 30 degrees.
4.1 Koraci prije instalacije
- Isključite napajanje: Pronađite prekidač ili kutiju s osiguračima i isključite napajanje ventilatora.
- Pripremite mjesto montaže: Provjerite je li električna kutija sigurno montirana i može li podnijeti težinu ventilatora.
4.2 Montiranje ventilatora
- Pričvrstite montažni nosač na električnu kutiju pomoću priloženih vijaka.
- Assemble the down-rod (if using) to the fan motor housing.
- Pažljivo podignite sklop ventilatora i objesite ga na nosač za montažu.
4.3 Spajanje ožičenja
- Connect the fan's electrical wires to the household wiring according to the wiring diagram in the full manual (not provided here). Ensure all connections are secure with wire nuts.
- Install the remote receiver into the canopy.
4.4 Pričvršćivanje oštrica i kompleta svjetla
- Attach the five white ABS blades to the blade arms, then secure the blade arms to the motor housing.
- Ugradite komplet svjetla na dno kućišta motora ventilatora.
- Insert the two candelabra bulbs into the light kit sockets and attach the frost glass shade.
Bilješka: The fan's installed dimensions are approximately 11.25 inches from ceiling to blade and 17.75 inches from ceiling to the bottom of the light kit glass.
5. Upute za rad
Your Litex E-WOD52WW5C ceiling fan can be operated using the included remote control or the integrated pull chain.
5.1 Rad daljinskog upravljača
- Brzina ventilatora: Use the speed buttons to cycle through 3 fan speeds (Low, Medium, High).
- Uključivanje/isključivanje ventilatora: Pritisnite gumb ventilatora da biste uključili ili isključili ventilator.
- Svjetlo uključeno/isključeno: Press the light button to turn the light kit on or off.
5.2 Pull Chain Operation
- Brzina ventilatora: Pull the fan chain to cycle through the 3 fan speeds and off.
- Svjetlo uključeno/isključeno: Pull the light chain to turn the light kit on or off.
The high-performance motor delivers powerful air movement with quiet performance, creating a comfortable breeze.
6. Održavanje
Redovito održavanje pomaže u osiguravanju dugotrajnosti i optimalnih performansi vašeg stropnog ventilatora.
- Čišćenje: Koristite meku, damp cloth to clean the fan's surfaces. Do not use abrasive cleaners or solvents, as they may damage the finish or blades.
- Čišćenje oštrice: Wipe the fan blades regularly to prevent dust buildup, which can affect balance and air circulation.
- Zategnite pričvršćivače: Periodically check and tighten all screws and connections to ensure they are secure.
- Žarulje: Replace light bulbs with candelabra-base bulbs, not exceeding 60 watts per bulb.
7. Rješavanje problema
Ako imate problema sa stropnim ventilatorom, pogledajte sljedeće uobičajene probleme i rješenja:
| Problem | Mogući uzrok | Otopina |
|---|---|---|
| Ventilator se ne pokreće | Nema napajanja ventilatora; Labavi spojevi žica; Prazna baterija daljinskog upravljača. | Check circuit breaker/fuse; Ensure all wires are securely connected; Replace remote control battery. |
| Svjetlo ne radi | Loose wire connection; Faulty bulb; Light switch off. | Check light kit wiring; Replace bulb; Ensure light is switched on via remote or pull chain. |
| Ventilator se ljulja | Labavi vijci oštrice; Neuravnotežene oštrice; Labav nosač za montažu. | Zategnite sve vijke noža; Koristite komplet za balansiranje noža (nije uključen); Provjerite je li nosač za montažu pričvršćen. |
| Bučan rad | Loose screws; Motor housing rubbing; Blades hitting an obstruction. | Check and tighten all screws; Ensure no parts are rubbing; Verify blades have clearance. |
8. Specifikacije
| Marka | Litex |
| Naziv modela | Litex WOD52WW5L All Weather Collection |
| Broj modela | 16916 |
| Veličina | 52-inčni |
| Boja | Bijela |
| Broj oštrica | 5 |
| Materijal oštrice | Akrilonitril butadien stiren (ABS) |
| Svjetlosni komplet | Single Light Kit with Frost Glass |
| Žarulje uključene | 2 x 60 Watt Max Candelabra Bulbs |
| Vrsta montaže | Dual Mount (Flush or Downrod) |
| Duljina spuštene šipke | 6-Inch (included) |
| Voltage | 120 V |
| Wattage | 61 W |
| Broj brzina | 3 |
| Metoda kontrole | Remote Control, Pull Chain |
| Unutarnja/vanjska upotreba | Unutarnji/Ovanjski |
| Težina artikla | 18 funti |
| Proizvođač | Litex Industries |
9. Jamstvo i podrška
This Litex ceiling fan comes with a limited lifetime warranty. For specific details regarding warranty coverage, parts, or technical support, please contact Litex customer service.
Kontakt službe za korisnike: 800-527-1292
