Firecore FIR411R Red Laser Level Instruction Manual

1. Uvod

Thank you for choosing the Firecore FIR411R Red Laser Level. This professional-grade, self-leveling laser tool is designed for precise measurement and alignment tasks in construction and renovation. It projects 5 lines (4 vertical, 1 horizontal) and a plumb point, offering versatility for various applications. Please read this manual thoroughly before operation to ensure safe and efficient use.

Sigurnosne informacije

• Lasersko zračenje: This product is a Class 2 laser product with an output power of ≤ 1 mW. Do not stare directly into the laser beam. Avoid direct eye exposure.
• Ne rastavljajte uređaj. Popravke smije obavljati samo ovlašteno servisno osoblje.
• Držite uređaj izvan dohvata djece.
• Koristite samo propisane baterije i punjače.

Što je u kutiji

The Firecore FIR411R package includes:

• FIR411R Laser Level
• FD20 Laser Detector
• Kit Box
• Laserske naočale
• Priključak za stativ
• Punjač AC
• korisnički priručnik

Image 1.1: Contents of the Firecore FIR411R Laser Level kit, including the laser unit, detector, glasses, charger, and case.

2. Značajke proizvoda

• 5-Line Projection: Projects 4 vertical lines, 1 horizontal line, and 1 plumb point for comprehensive leveling and alignment.
• Funkcija samoniveliranja: Automatically levels within its range, ensuring accuracy.
• Visoka točnost: ± 0.2 mm/m precision for reliable measurements.
• Prošireni raspon: Up to 50m working range with the included Firecore FD20 laser detector.
• Punjiva litijeva baterija: High-capacity battery provides up to 5 hours of continuous operation.
• 360° Rotating Fine Adjustment Base: Two micro-rotating knobs allow precise 360° adjustment during operation.
• Višenamjenski načini rada: Vertical and horizontal lines can be operated separately or together.
• Izdržljiva konstrukcija: Made from ABS plastic and rubber for robust use.

Slika 2.1: Prednja strana view of the Firecore FIR411R Laser Level, highlighting its 360-degree rotation capability.

3. Postavljanje

3.1 Ugradnja i punjenje baterije

1. Pronađite odjeljak za baterije na uređaju.
2. Umetnite priloženu litijevu bateriju, pazeći na ispravan polaritet.
3. To charge, connect the AC charger to the device and plug it into a power outlet. The power indicator will show charging status.
4. A full charge supports approximately 5 hours of continuous operation with all lasers active.
5. Važno: Do not overcharge or over-discharge the battery to prolong its lifespan. Recharge promptly when the power indicator starts flashing.

3.2 Montaža uređaja

The FIR411R can be placed on a stable surface or mounted:

• Nosač stativa: Use the 5/8 inch female interface on the base to attach the laser level to a compatible tripod.
• Rotirajuća baza: The integrated rotating base allows for stable placement and fine angular adjustments.

3.3 Početno uključivanje

Slide the main power switch to the 'ON' position. The device will initiate its self-leveling sequence. Once leveled, the laser lines will activate.

4. Upute za rad

4.1 Način samoniveliranja

When powered on, the FIR411R automatically enters self-leveling mode. If the device is outside its leveling range, the laser lines may flash or an audible alarm may sound. Adjust the device's position until it self-levels and the lines become stable.

4.2 Prebacivanje laserskih linija

Use the dedicated vertical and horizontal buttons on the control panel to activate or deactivate specific laser lines. You can display cross-lines, vertical lines, horizontal lines, or combinations as needed for your task.

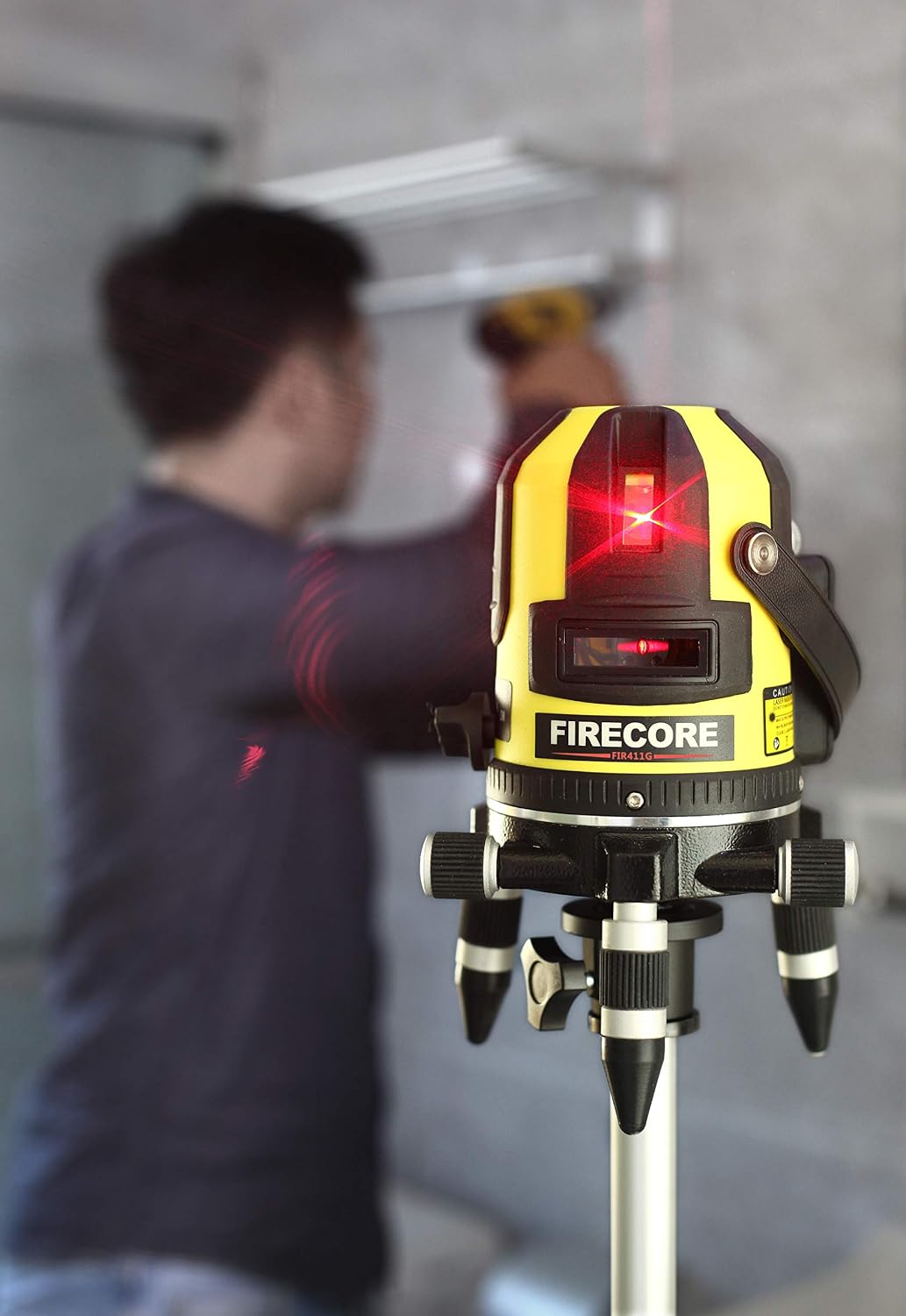

Image 4.1: The Firecore FIR411R Laser Level in operation, projecting clear red laser lines for alignment.

4.3 Using the 360° Rotating Base

The base of the laser level features two micro-rotating knobs. These allow for precise, incremental 360-degree rotation of the laser unit without moving the entire setup, which is ideal for fine adjustments and aligning lines to specific points.

4.4 Using the FD20 Laser Detector

For outdoor use or in bright conditions where laser lines are difficult to see, use the Firecore FD20 laser detector. Turn on the detector and move it along the desired surface. The detector will indicate the position of the laser line with visual and/or audible signals, extending the working range up to 50 meters.

Image 4.2: The Firecore FIR411R Laser Level mounted on a measuring pole, demonstrating its use in a construction setting.

5. Održavanje

5.1 Čišćenje

• Redovito čistite laserske prozore i kućište mekom krpomamp tkanina.
• Do not use abrasive cleaners or solvents, as they may damage the plastic parts or optical components.
• Prije skladištenja provjerite je li uređaj suh.

5.2 Skladištenje

• Store the laser level in its original kit box in a cool, dry place, away from direct sunlight and extreme temperatures.
• Ako skladištite dulje vrijeme, izvadite bateriju kako biste spriječili curenje.

5.3 Njega baterija

• Charge the lithium battery regularly, even if not in use, to maintain its health.
• Izbjegavajte često potpuno pražnjenje baterije.

6. Rješavanje problema

• Laser lines are flashing or alarm sounds: The device is out of its self-leveling range. Adjust its position on a more level surface.
• Laser se ne uključuje: Check if the battery is charged and correctly inserted. Ensure the power switch is fully in the 'ON' position.
• Laserske linije su slabe ili nevidljive na otvorenom: Use the FD20 laser detector for improved visibility and extended range. Ensure laser glasses are worn for better visibility of the red beam.
• Netočna mjerenja: Ensure the device is properly self-leveled. Check for any obstructions or damage to the laser windows.

If problems persist, contact Firecore customer support for assistance.

7. Specifikacije

8. Jamstvo i podrška

Firecore products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Firecore website. If you encounter any issues or require technical assistance, please contact Firecore customer support through their official channels.
