EASE2U E 4-in-1 LED 32W Emergency Strobe Light Bar Instruction Manual

1. Uvod

Thank you for choosing the EASE2U E 4-in-1 LED 32W Emergency Strobe Light Bar. This product is designed to provide high-visibility warning and hazard lighting for various vehicles, including off-road vehicles, ATVs, and trucks. This manual provides essential information for the safe installation, operation, and maintenance of your new strobe light system. Please read these instructions thoroughly before installation and use.

2. Sigurnosne informacije

Always observe the following safety precautions to prevent injury and damage to the product or vehicle:

• Ensure the vehicle's power is disconnected before beginning any installation or wiring work.
• Provjerite je li izvor napajanja glasnoćetage matches the product's specifications (12V/24V).
• Do not look directly into the LED lights when they are active, as this may cause temporary vision impairment.
• Mount the lights securely to prevent detachment during vehicle operation.
• Ensure all wiring connections are properly insulated and protected from environmental elements.
• Consult local regulations regarding the use of emergency warning lights on public roads.

3. Sadržaj paketa

Molimo provjerite paket kako biste bili sigurni da su svi artikli prisutni:

• 4 x COB-LED 8W Mini Light Bars
• 1 x On/Off Switch and Mode Switch Controller
• 8 x vijka za pričvršćivanje

Image: The complete package includes four blue LED strobe light units.

4. Značajke proizvoda

• Visoka vidljivost: 32 watts of powerful COB LED illumination for superior warning.
• Izdržljiva konstrukcija: Die-casting aluminum-alloy housing ensures longevity.
• Otporan na vremenske uvjete: IP65 waterproof rating allows for safe exterior mounting in challenging conditions.
• Svestrana montaža: Supports both roof and side installation with removable and adjustable brackets.
• Multiple Flash Patterns: Features 7 selectable flash patterns, including a steady-on mode.
• Jednostavna kontrola: Patterns are easily changed via a dedicated button on the included controller.
• Fleksibilna snaga: Can be powered by a cigarette lighter or other 12V/24V power sources.

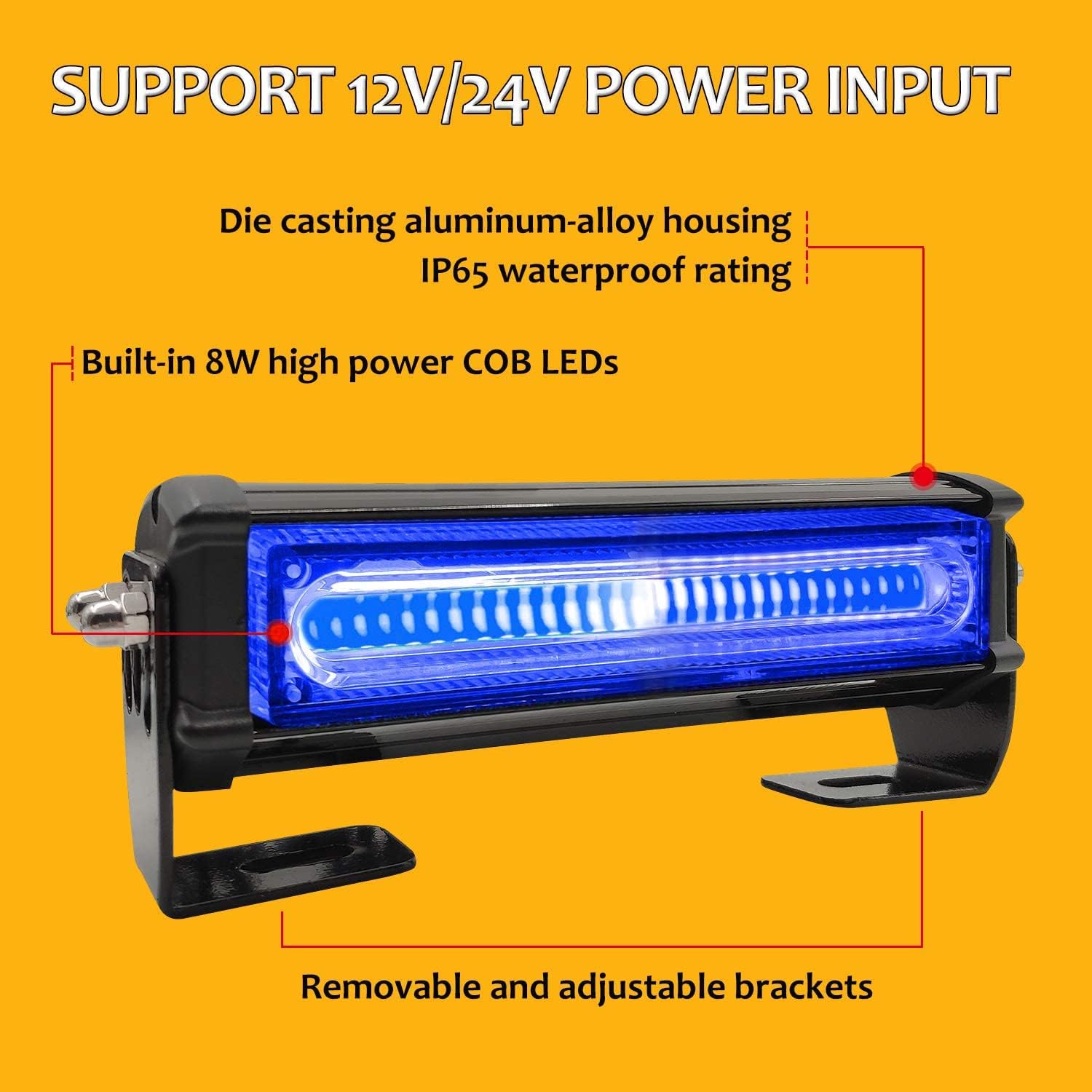

Image: A single strobe light unit highlighting its COB LED design, IP65 waterproof rating, and durable housing.

5. Tehničke specifikacije

Image: Detailed dimensions of a single strobe light unit.

6. Upute za instalaciju

6.1. Mounting the Light Bars

The light bars offer two primary mounting methods:

1. Surface Mounting with Built-in Screws: Directly attach the light bar to the desired surface using the built-in screws. The location of these screws can be adjusted.
2. Montaža nosača: Remove the brackets from the light bars. Mount the brackets to the vehicle surface first, then install the light bars onto the brackets. This method provides additional flexibility for positioning.

Ensure the mounting location is flat, stable, and allows for proper light projection. The lights can be installed on the roof or around the sides of the vehicle.

Image: Illustration of the two-way mounting solutions for the strobe lights.

6.2. Spajanje ožičenja

The light system is designed for simple plug-and-play installation. The wires between the individual light bars are pre-connected.

1. Identify the main wiring harness connected to the controller.
2. Connect the main power input of the harness to your vehicle's 12V or 24V power source. This can be done via the included cigarette lighter plug for temporary use or by hardwiring to a suitable power supply for permanent installation.
3. Ensure all connections are secure and properly insulated to prevent short circuits and water ingress.

Image: Wiring diagram showing the connections and cable lengths for the light system.

7. Operacija

The EASE2U E strobe light system is controlled by a single switch unit.

7.1. Uključivanje/isključivanje

Locate the controller unit. The red rocker switch on the controller is the main power On/Off switch. Flip the switch to the 'I' position to turn the lights on, and to the 'O' position to turn them off.

7.2. Changing Flash Patterns

The round red button on the controller is the pattern switch. Press this button repeatedly to cycle through the 7 available flash patterns. The system will remember the last selected pattern when powered off and on again.

The 7 flash patterns include various strobe sequences and a steady-on mode.

Image: The controller unit with clearly marked power and pattern switches.

8. Održavanje

To ensure optimal performance and longevity of your strobe lights, follow these maintenance guidelines:

• Čišćenje: Redovito čistite leću i kućište mekom, damp cloth. Avoid abrasive cleaners or solvents that could damage the polycarbonate lens or housing finish.
• Inspekcija: Periodically check all mounting hardware for tightness and ensure the lights are securely attached. Inspect wiring for any signs of wear, fraying, or damage.
• Hidroizolacija: While the lights are IP65 rated, ensure that all cable entries and connections remain sealed to maintain water resistance.

9. Rješavanje problema

If you encounter issues with your strobe light system, refer to the following table for common problems and solutions:

10. Jamstvo i podrška

For warranty information or technical support, please refer to the product packaging or contact EASE2U E customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
