KuWFi CPE200M Vanjski bežični most Upute za uporabu

Uvod

The KuWFi CPE200M is a 900Mbps long-range outdoor wireless bridge designed for stable point-to-point (PTP) and point-to-multipoint (PTMP) wireless connections. It supports various operation modes including Access Point (AP) and Repeater, making it suitable for extending Wi-Fi coverage up to 2-3 kilometers. This device is built to withstand outdoor conditions, featuring waterproof, dustproof, and lightning protection. This manual provides detailed instructions for setting up, operating, and maintaining your CPE200M units.

Image: Two KuWFi CPE200M outdoor wireless bridge units, showcasing njihov elegantan bijeli dizajn.

Sadržaj paketa

Paket uključuje sljedeće stavke:

• 2 x KuWFi CPE200M Wireless Bridge Units
• 2 x PoE Power Adapters (24V 0.5A)
• 1 x Vodič za brzi početak
• 4 x Metal Rings with Screws for mounting

Značajke proizvoda

The KuWFi CPE200M offers a robust set of features for reliable outdoor wireless connectivity:

• Bežični standard: Complies with IEEE 802.11ac/a for 900 Mbps data rates.
• Priključci: 1x 10/100 Mbps WAN port, 1x 10/100 Mbps LAN port.
• Memorija: 8MB FLASH, 64MB DDR2.
• Antena: Integrated 11 dBi MIMO panel antenna for enhanced signal strength and coverage.
• Napajanje preko Etherneta (PoE): Supports passive PoE on the WAN port.
• Upravljanje SSID-om: Supports SSID broadcasting and up to 4 Multi SSIDs.
• Načini rada: Wireless AP and Repeater modes.
• Sigurnosne značajke: Integrated firewall with IP filter, URL filter, and MAC filter.
• Napredne bežične tehnologije: IEEE 802.3az compliant, beamforming technology, RF power adjustment, and frequency analyzer.
• Mrežni protokoli: Supports DDNS, VPN pass-through, port forwarding, and DMZ host.
• Bežična sigurnost: WEP 64/128-bit, WPA 128-bit (TKIP/AES).
• Izlazna snaga: Up to 28 dBm.
• Zaštita okoliša: Waterproof, dustproof, and lightning protection.
• Radna temperatura: -30°C do 55°C.
• Temperatura skladištenja: -40°C do 70°C.

Postavljanje

The KuWFi CPE200M units are designed for straightforward setup. Follow these steps for initial configuration:

1. Fizička veza

Connect one end of an Ethernet cable to the LAN port of the CPE unit and the other end to the PoE port of the provided PoE adapter. Connect another Ethernet cable from the LAN port of the PoE adapter to your computer or network device. Plug the PoE adapter into a power outlet.

Image: This diagram illustrates how to connect the CPE unit to the PoE adapter and then to an IP camera or a network switch/computer. The CPE WAN port connects to the PoE adapter's PoE port, and the IP camera or switch connects to the PoE adapter's LAN port.

2. Master/Slave Configuration (Auto-Pairing)

The CPE200M units can be configured as Master (transmitter) and Slave (receiver). For quick setup, the units support automatic pairing.

• Power on both CPE units using their respective PoE adapters.
• Observe the LED display on each unit. The display shows the operation mode, channel, and signal strength.
• To initiate auto-pairing, press the reset button on each unit for approximately 1 second. The units will attempt to pair automatically.
• The H/C switch on the unit controls the Master/Slave role. Ensure one unit is set as Master and the other as Slave for a point-to-point link.

Image: This image shows the LED display and the H/C switch on the KuWFi CPE200M unit. The LED display provides information on the device's status, while the H/C switch allows selection between Master (H) and Client/Slave (C) modes.

Slika: Stražnji dio view of the KuWFi CPE200M unit, displaying product labels, model number, and default IP addresses for Master (192.168.188.253) and Slave (192.168.188.100) configurations.

3. Advanced Configuration (Optional)

For advanced settings or if automatic pairing fails, you can access the web-based management interface. Connect your computer directly to the CPE unit's LAN port (via the PoE adapter) and configure your computer's IP address to be in the same subnet as the CPE (e.g., 192.168.188.x). Then, open a web browser and navigate to the default IP address of the CPE (e.g., 192.168.188.253 for Master or 192.168.188.100 for Slave). Refer to the Quick Start Guide for default login credentials.

If you encounter issues with incorrect gateway or DNS information, consider setting a manual IP address, gateway, and DNS on the connected devices.

Načini rada

The KuWFi CPE200M supports multiple operating modes to suit various network requirements:

1. Point-to-Point (PTP) Connection

In this mode, two CPE units establish a direct wireless link to extend network coverage over a long distance (up to 2-3 KM). One unit acts as the Master (transmitter) and the other as the Slave (receiver).

Image: An illustration demonstrating the long-range capability of the KuWFi CPE200M, showing two units establishing a wireless link between two houses, covering a maximum distance of 2-3 kilometers.

Image: This diagram illustrates a typical Point-to-Point WiFi coverage setup. A Master CPE unit connects to a router and transmits wirelessly to a Slave CPE unit, which then provides network access to a remote location.

2. Point-to-Multipoint (PTMP) Connection

One CPE unit can act as a central Access Point (AP) to connect to multiple other CPE units configured in Repeater mode. This is useful for distributing network access to several remote locations from a single source.

Image: A diagram showing a multi-to-multi connection scenario where multiple CPE units in Repeater mode connect to a central CPE unit in AP mode, often used for surveillance camera networks.

Image: This diagram illustrates a Point-to-Multipoint connection, where a single Master CPE unit in AP mode serves multiple Slave CPE units in Repeater mode, typically for extending network to several IP cameras or remote devices.

3. Način ponavljanja

In Repeater mode, the CPE unit extends the range of an existing wireless network. It receives a wireless signal and re-transmits it, effectively boosting coverage.

4. IP Surveillance Camera Integration

The CPE200M can be used to extend surveillance coverage. Connect an IP camera to the secondary LAN port of a CPE unit (acting as a client) and transmit the video feed wirelessly back to your network DVR or monitoring station.

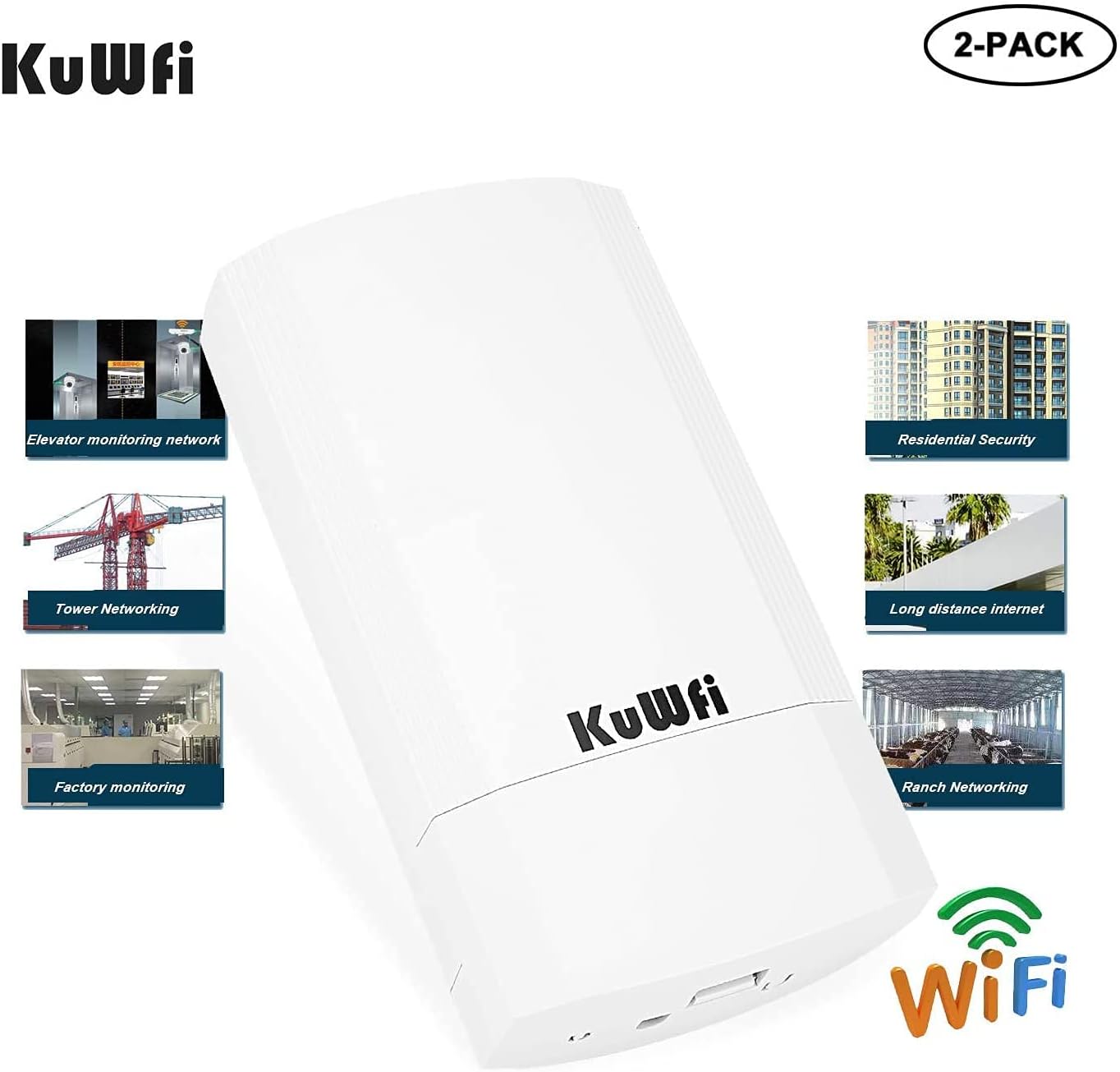

Image: This image highlights various applications for the KuWFi CPE200M, including elevator monitoring networks, residential security, tower networking, long-distance internet access, factory monitoring, and ranch networking.

Održavanje

The KuWFi CPE200M is designed for outdoor use with waterproof, dustproof, and lightning protection features, requiring minimal maintenance. To ensure optimal performance and longevity, consider the following:

• Zaštita okoliša: Ensure the units are securely mounted and connections are properly sealed to maintain their waterproof and dustproof integrity.
• Vidno polje: For optimal performance, maintain a clear line of sight between the Master and Slave units. Obstructions can degrade signal quality.
• Čišćenje: Periodically clean the exterior of the units to remove dirt or debris that might accumulate, especially on the antenna surface, using a soft, damp tkanina. Nemojte koristiti jake kemikalije.
• Ažuriranja firmvera: Provjerite proizvođača webpovremeno provjeravajte ažuriranja firmvera kako biste osigurali optimalne performanse i sigurnost.

Rješavanje problema

If you encounter issues with your KuWFi CPE200M, refer to the following troubleshooting tips:

• Bez napajanja: Ensure the PoE adapter is correctly connected to the CPE unit and a working power outlet. Check all cable connections.
• No Wireless Link:
  • Verify that both units are powered on and the LED indicators are active.
  • Ensure one unit is configured as Master and the other as Slave (or Client).
  • Check for clear line of sight between the units. Obstacles like trees or buildings can block the signal.
  • Try pressing the reset button on both units for 1 second to re-initiate auto-pairing.
• Slab signal/niska brzina:
  • Adjust the alignment of the units to ensure they are pointing directly at each other.
  • Reduce the distance between the units if possible.
  • Check for potential sources of interference (e.g., other 5GHz devices).
  • Ensure the units are mounted securely and not swaying in the wind.
• Ne mogu pristupiti Web sučelje:
  • Verify your computer's IP address is in the same subnet as the CPE (e.g., 192.168.188.x).
  • Ensure the Ethernet cable is connected correctly from your computer to the PoE adapter's LAN port, and from the PoE adapter's PoE port to the CPE.
  • Try using the default IP addresses (Master: 192.168.188.253, Slave: 192.168.188.100).
  • Reset the unit to factory defaults (press and hold the reset button for 5-10 seconds) if you have forgotten the login credentials or made incorrect configurations. Note: This will erase all custom settings.
• Incorrect Gateway/DNS Information: If connected devices receive incorrect network information, manually configure the IP address, gateway, and DNS settings on those devices.

Tehnički podaci

Jamstvo i podrška

KuWFi provides a 2-year manufacturer's warranty for the CPE200M. For quality-related issues, a replacement or full refund is offered within 12 months of purchase. Additionally, customers can return undamaged KuWFi products for any reason within 30 days of purchase for a full refund.

For technical support or warranty claims, please contact KuWFi customer service through their official channels or the retailer where the product was purchased.
