Bosch Climate 3000i korisnički priručnik

1. Proizvod je gotovview

The Bosch Climate 3000i is an advanced inverter split air conditioning system designed for efficient cooling and heating of indoor spaces. With a capacity of 12000 BTU, it provides powerful climate control while incorporating energy-saving technologies and user-friendly features.

Ključne karakteristike:

• Funkcija grijanja i hlađenja: Pruža udobnost tijekom cijele godine.
• Odvlaživač zraka: Reduces humidity levels for a more comfortable environment.
• Kapacitet 12000 BTU: Suitable for medium to large rooms.
• Inverterska tehnologija: Osigurava preciznu kontrolu temperature i energetsku učinkovitost.
• Ušteda energije: Up to 20% energy savings with Eco-Mode function.
• Tihi način rada: Operates at a low noise level of 20 dB(A) for quiet comfort.
• Direct Blowing Function: Controls airflow direction for optimal distribution.
• i-Clean Function: Automatically cleans the indoor unit, removing up to 99% of harmful bacteria.
• Filter visoke gustoće: Improves air quality by capturing dust and allergens.
• Bosch HomeCom Easy Online Control: Enables remote control and monitoring via a smart device.

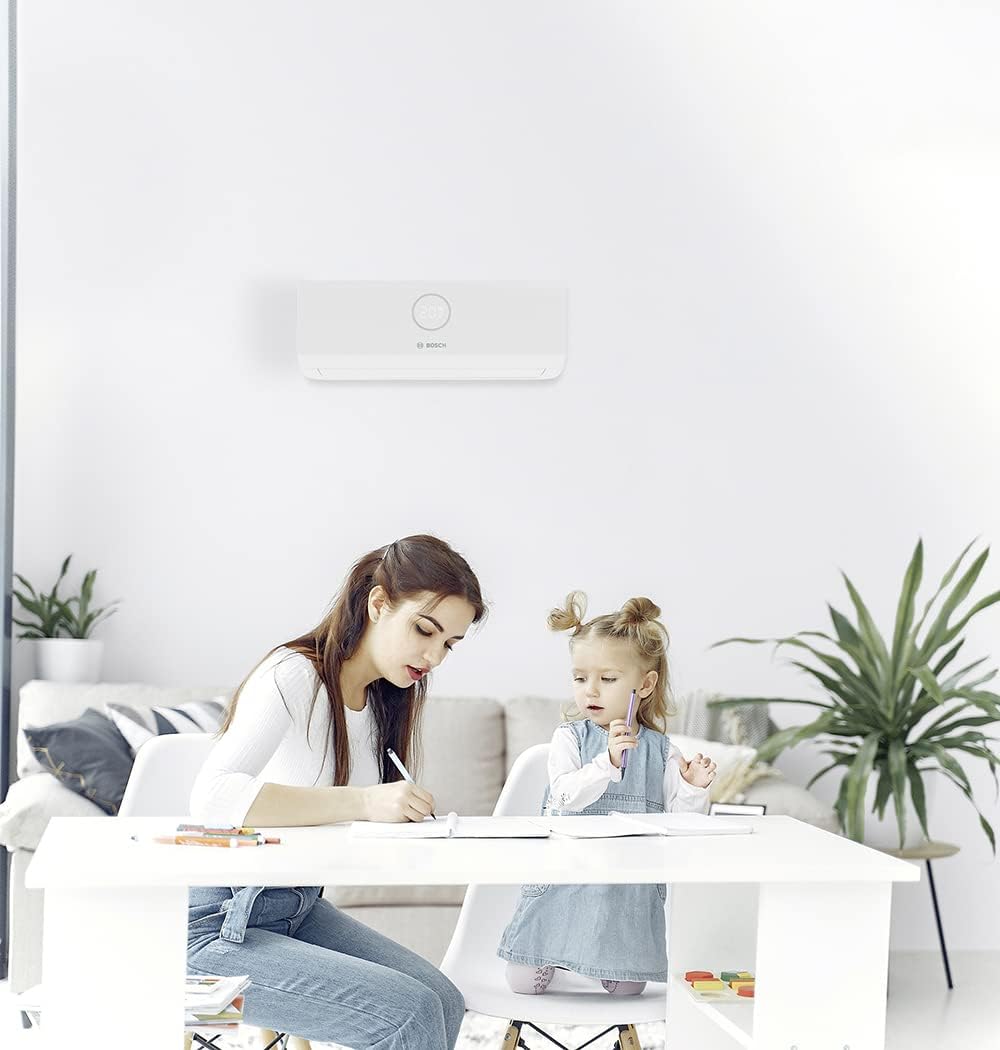

Figure 1.1: The sleek design of the Bosch Climate 3000i indoor unit, featuring a central display.

2. Sigurnosne informacije

Please read all safety warnings and instructions carefully before installing, operating, or performing maintenance on the air conditioner. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.

• Installation must be performed by qualified and authorized personnel in accordance with local and national electrical codes.
• Do not attempt to repair or modify the unit yourself. Contact authorized service personnel for all repairs.
• Ensure the power supply is disconnected before performing any cleaning or maintenance.
• Ne stavljajte prste ili predmete u otvor za ulaz/izlaz zraka.
• Držite uređaj dalje od zapaljivih plinova ili zapaljivih materijala.
• Osigurajte odgovarajuću ventilaciju oko vanjske jedinice kako biste spriječili pregrijavanje.
• Ovaj uređaj nije namijenjen za korištenje od strane osoba (uključujući djecu) sa smanjenim fizičkim, osjetilnim ili mentalnim sposobnostima, ili nedostatkom iskustva i znanja, osim ako nisu pod nadzorom ili su dobili upute o korištenju uređaja od strane osobe odgovorne za njihovu sigurnost.

3. Postavljanje i instalacija

The Bosch Climate 3000i is a split system air conditioner, requiring both an indoor and an outdoor unit. Professional installation is highly recommended to ensure proper functioning and safety.

3.1 Raspakiranje

• Carefully remove all packaging materials from both the indoor and outdoor units.
• Check for any visible damage. If damage is found, do not proceed with installation and contact your supplier.
• Sačuvajte ambalažu za budući transport ili skladištenje ako je potrebno.

3.2 Razmatranja smještaja

• Unutarnja jedinica: Odaberite mjesto koje omogućuje ravnomjernu raspodjelu zraka po prostoriji, dalje od izravne sunčeve svjetlosti ili izvora topline. Osigurajte dovoljno prostora oko uređaja za održavanje.
• Vanjska jedinica: Select a well-ventilated area, free from obstructions, and with adequate clearance for airflow. Avoid placing it near bedrooms due to potential noise.

3.3 Električni priključak

• Ensure the power supply matches the specifications listed on the unit's rating label.
• A dedicated circuit breaker is recommended for the air conditioner.
• Sve električne instalacije moraju biti u skladu s lokalnim i nacionalnim propisima.

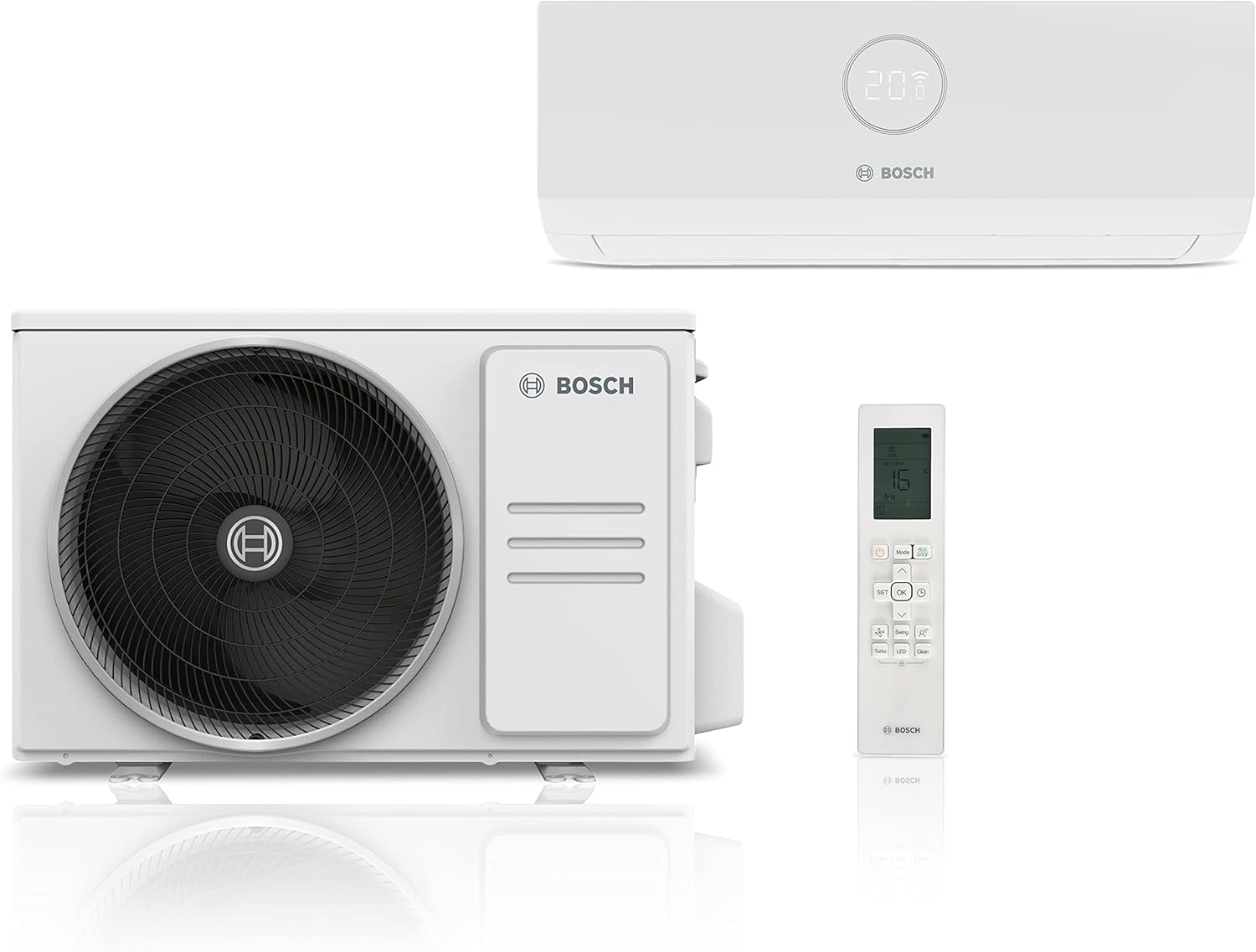

Figure 3.1: Components of the Bosch Climate 3000i system, including the indoor unit, outdoor unit, and remote control.

4. Upute za rad

The Bosch Climate 3000i can be operated using the supplied wireless remote control or via the Bosch HomeCom Easy app for online control.

4.1 Daljinski upravljačview

Upoznajte se s tipkama na daljinskom upravljaču:

• Gumb POWER: Uključuje ili isključuje jedinicu.
• Gumb MODE: Cycles through operating modes (Auto, Cool, Dry, Heat, Fan).
• Tipke TEMP ▲/▼: Podešava željenu temperaturu.
• Gumb FAN: Odabire brzinu ventilatora (Automatska, Niska, Srednja, Visoka).
• Gumb SWING: Podešava okomiti smjer strujanja zraka.
• Tipka TIMER: Postavlja tajmere za UKLJUČIVANJE/ISKLJUČIVANJE.
• Gumb ECO: Aktivira način rada za uštedu energije.
• SILENT Button: Activates ultra-quiet operation.
• i-CLEAN Button: Initiates the self-cleaning function.

4.2 načina rada

• Način hlađenja: Za hlađenje prostorije. Podesite željenu temperaturu i brzinu ventilatora.
• Način grijanja: For heating the room. Set desired temperature and fan speed.
• Način rada odvlaživača (DRY): Smanjuje vlažnost bez značajnih promjena temperature.
• Način ventilatora: Kruži zrak bez hlađenja ili grijanja.
• Automatski način rada: The unit automatically selects the appropriate mode (Cool, Heat, Fan) based on the room temperature.

4.3 Posebne funkcije

• Tihi način rada: Reduces fan speed and compressor operation to minimize noise, ideal for sleeping.
• Eko način rada: Optimizes operation for maximum energy efficiency, saving up to 20% on energy consumption.
• i-Clean Function: A self-cleaning cycle that helps prevent the growth of mold and bacteria inside the indoor unit, ensuring cleaner air.
• Direct Blowing Function: Allows for precise control over the direction of the airflow, directing it away from or towards occupants as desired.
• Bosch HomeCom Easy Online Control: Download the Bosch HomeCom Easy app to control your air conditioner remotely from your smartphone or tablet. This feature allows for scheduling, mode changes, and monitoring from anywhere.

Figure 4.1: The indoor unit's integrated display showing the current temperature setting.

5. Održavanje

Regular maintenance ensures optimal performance, energy efficiency, and longevity of your Bosch Climate 3000i air conditioner. Always disconnect power before performing any maintenance.

5.1 Čišćenje filtera

The high-density filter should be cleaned regularly, typically every two weeks, or more frequently depending on usage and air quality.

1. Otvorite prednju ploču unutarnje jedinice.
2. Pažljivo uklonite zračne filtere.
3. Clean the filters using a vacuum cleaner or wash them with lukewarm water (below 40°C).
4. Prije ponovnog umetanja, ostavite filtere da se potpuno osuše na zasjenjenom mjestu. Ne izlažite ih izravnoj sunčevoj svjetlosti.
5. Čvrsto zatvorite prednju ploču.

5.2 i-Clean Function

Utilize the i-Clean function periodically to ensure the internal components of the indoor unit remain clean and free from bacteria. Refer to your remote control instructions for activating this cycle.

5.3 Čišćenje uređaja

• Obrišite vanjski dio unutarnje jedinice mekom,amp cloth. Do not use harsh detergents, abrasive cleaners, or solvents.
• For the outdoor unit, ensure the coils are free from debris, leaves, and dirt. Use a soft brush or vacuum cleaner if necessary.
• Do not spray water directly onto the electrical components.

Figure 5.1: Illustration of the airflow from the indoor unit, highlighting the importance of clear air paths for efficient operation.

6. Rješavanje problema

This section provides solutions to common issues you might encounter. If the problem persists, contact authorized service personnel.

7. Tehničke specifikacije

Detailed specifications for the Bosch Climate 3000i:

8. Jamstvo i podrška

Your Bosch Climate 3000i air conditioner comes with a manufacturer's warranty to ensure your peace of mind.

8.1 Informacije o jamstvu

Proizvod je pokriven 2-godišnje ograničeno jamstvo od datuma kupnje. Ovo jamstvo pokriva nedostatke u materijalu i izradi pri normalnoj uporabi. Molimo sačuvajte dokaz o kupnji za reklamacije.

8.2 Korisnička podrška

For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Bosch customer support or visit the official Bosch webweb-mjestu. Više informacija i kontaktnih podataka možete pronaći na Trgovina robne marke Bosch or your local Bosch service center.
