Tefal Oleoclean Compact friteza s uputama za uporabu

Uvod

Thank you for choosing the Tefal Oleoclean Compact Deep Fryer. This appliance is designed to provide a convenient and efficient way to prepare delicious fried foods with its innovative automatic oil filtration system and easy-to-clean components. Please read this manual thoroughly before first use to ensure safe operation and optimal performance.

Image: The Tefal Oleoclean Compact Deep Fryer, showcasing its sleek stainless steel and black design with the control panel visible on top.

Važne sigurnosne upute

• Always place the fryer on a stable, heat-resistant surface away from walls and flammable materials.
• Ne uranjajte električni uređaj, kabel ili utikač u vodu ili bilo koju drugu tekućinu.
• Ensure the oil level is between the MIN and MAX marks to prevent overflow or insufficient frying.
• Allow the oil to cool completely before activating the oil filtration system or cleaning the appliance.
• Čuvati izvan dohvata djece i kućnih ljubimaca.

Postavljanje i montaža

Before first use, carefully unpack all components and remove any packaging materials. It is recommended to wash all removable parts before initial operation.

Identifikacija komponente

• Removable Frying Basket with Handle
• Removable Frying Bowl (Tank)
• Lid with Permanent Filter and Viewotvaranje prozora
• Grijaći element s upravljačkom jedinicom
• Oilbox (Oil Storage Container)
• Base Unit with Oil Filtration Control Knob

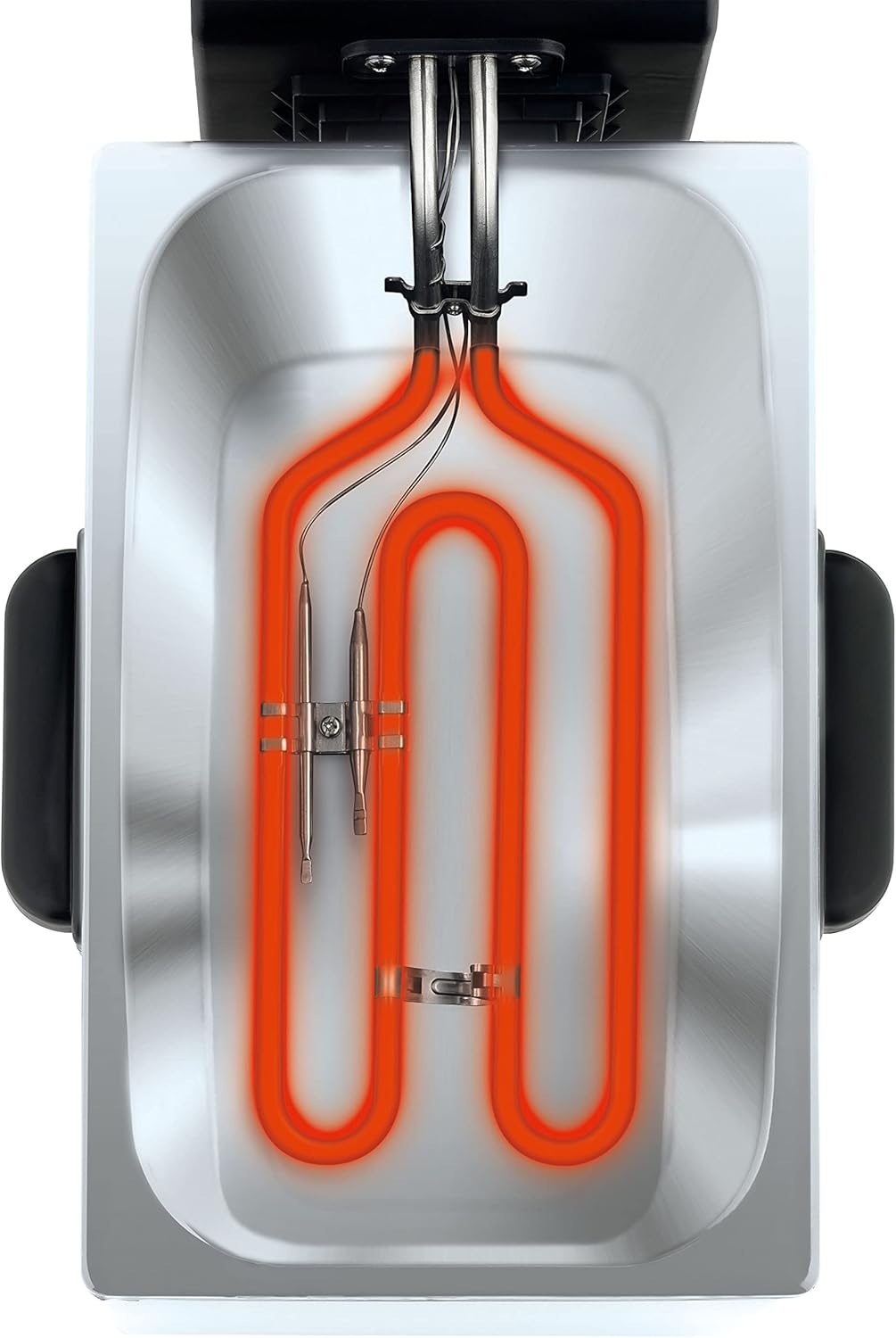

Slika: Detaljna view of the submerged heating element, which ensures rapid heating of the oil.

Početna montaža

1. Place the Oilbox into the designated slot at the bottom of the base unit.
2. Insert the removable frying bowl into the base unit.
3. Position the heating element with the control unit securely onto the back of the frying bowl. Ensure it is properly seated.
4. Place the frying basket inside the frying bowl.
5. Čvrsto zatvorite poklopac.

Dodavanje ulja

Pour cooking oil into the frying bowl. Ensure the oil level is between the MIN and MAX indicators marked on the inside of the bowl. The fryer has a 2-liter oil capacity.

Upute za rad

Predgrijavanje ulja

1. Ensure the oil filtration control knob is set to the "Fry" position.
2. Plug the power cord into a suitable electrical outlet. The indicator light on the control unit will illuminate, indicating that the fryer is heating.
3. Turn the adjustable thermostat knob to your desired frying temperature. Recommended temperatures for common foods are often indicated on the control unit.
4. Wait for the indicator light to turn off, signifying that the oil has reached the set temperature and is ready for frying.

Image: The control dial showing various temperature settings and icons for different frying modes, including the automatic oil filtration setting.

Prženje hrane

1. Carefully place the food into the frying basket. Do not overload the basket to ensure even cooking and maintain oil temperature. The fryer can handle up to 800g of food.
2. Polako spustite košaru u vruće ulje.
3. Close the lid. Monitor the cooking process through the viewing prozor.
4. Once food is cooked to your preference, carefully lift the basket and hook it onto the edge of the frying bowl to allow excess oil to drain.
5. Izvadite hranu iz košare i stavite je na papirnate ručnike kako bi upili preostalu masnoću.

Održavanje i čišćenje

The Tefal Oleoclean Deep Fryer is designed for easy cleaning, with many parts being dishwasher compatible.

Automatic Oil Filtration

After each use, allow the oil to cool completely (to room temperature) before activating the filtration system. This typically takes several hours.

1. Once the oil is cool, turn the oil filtration control knob to the "Automatic Oil Filtration" position.
2. The oil will automatically drain and filter into the Oilbox below, separating food debris.
3. Once filtration is complete, turn the knob back to the "Oil Box" position to seal the Oilbox for storage.

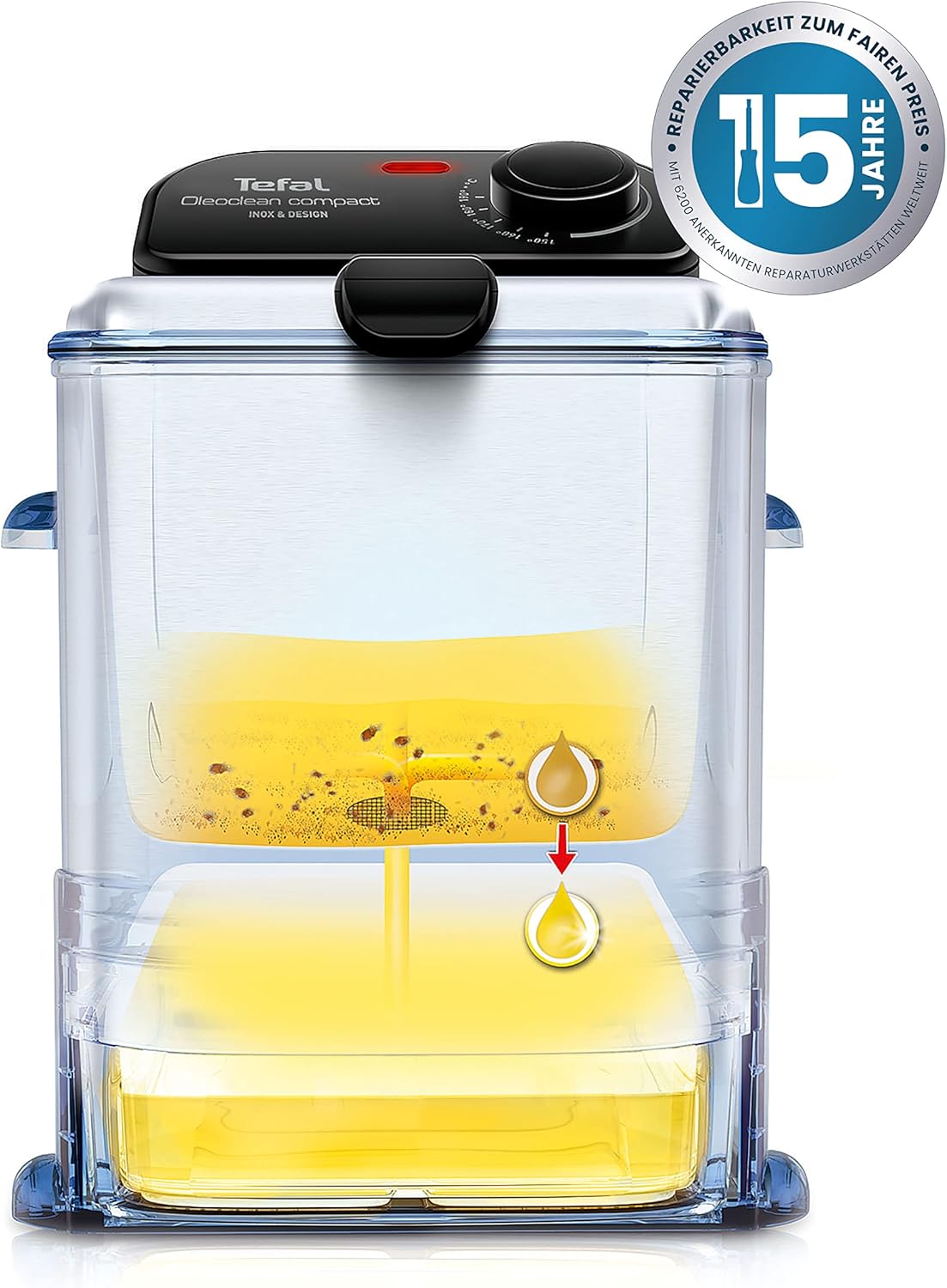

Image: A transparent diagram illustrating how used oil is filtered and stored in the integrated Oilbox, ensuring cleanliness and ease of reuse.

Čišćenje friteze

All parts, except the electrical heating unit, are dishwasher safe. For best results, clean after each use.

1. Provjerite je li uređaj isključen iz struje i potpuno ohlađen.
2. Remove the Oilbox from the base unit. You can store the filtered oil in the Oilbox for future use or dispose of it properly.
3. Disassemble the remaining parts: remove the lid, frying basket, and frying bowl.
4. Wash the lid, frying basket, and frying bowl in the dishwasher or by hand with warm, soapy water.
5. Wipe the electrical heating unit and the exterior of the base unit with a damp cloth. Never immerse these parts in water.
6. Ensure all parts are thoroughly dry before reassembling and storing the fryer.

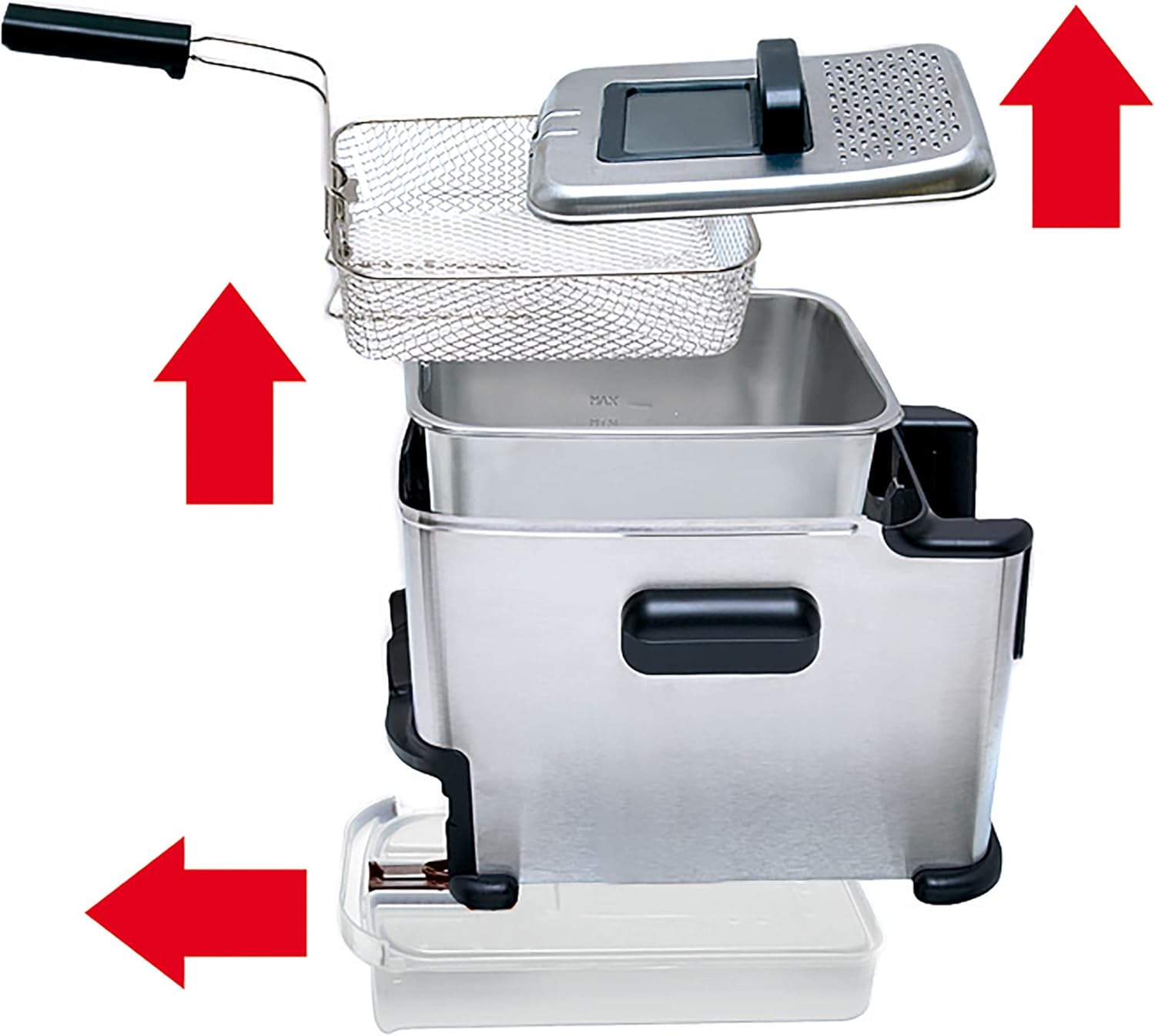

Slika: Eksplodirala view demonstrating how the deep fryer disassembles into its main components (lid, basket, frying bowl, Oilbox) for comprehensive cleaning.

Rješavanje problema

If you encounter any issues with your Tefal Oleoclean Deep Fryer, please refer to the following common problems and solutions:

Tehnički podaci

Jamstvo i podrška

Tefal is committed to providing high-quality products. This appliance is designed for durability and ease of repair, with spare parts available for an extended period.

For warranty information, technical support, or to find authorized service centers, please visit the official Tefal webweb-mjesto ili se obratite njihovoj korisničkoj službi. Sačuvajte dokaz o kupnji za bilo kakve jamstvene zahtjeve.
