Hiacinto ES550 Autofocus Endoscope User Manual

1. Uvod

The Hiacinto ES550 Autofocus Endoscope is a professional industrial inspection camera designed for detailed visual inspection in hard-to-reach areas. Featuring a 5.0 MP HD autofocus lens and a large 5-inch IPS LCD screen, it provides clear, high-resolution images and videos. Its durable, detachable gooseneck probe with adjustable LED lights and IP68 waterproof rating makes it suitable for various applications, including automotive repair, plumbing, HVAC, and general home maintenance.

2. Sigurnosne informacije

• Do not use the endoscope in environments with flammable or explosive gases.
• Prije upotrebe provjerite je li uređaj potpuno napunjen kako biste izbjegli prekide tijekom pregleda.
• Ne pokušavajte rastavljati ili modificirati uređaj. Za sve servisne radove obratite se kvalificiranom osoblju.
• Keep the camera probe clean and free from debris to ensure optimal image quality.
• Avoid direct exposure of the camera lens to strong light sources to prevent damage.
• Store the device and accessories in the provided carrying case when not in use to prevent damage.

3. Sadržaj paketa

Provjerite jesu li svi artikli prisutni i u dobrom stanju nakon otvaranja paketa:

• Hiacinto ES550 Endoscope Main Unit with 5-inch IPS Screen
• 5-meter (16.5 ft) Detachable Gooseneck Probe with 5.0 MP HD Autofocus Camera
• 32GB TF Card (pre-installed or included separately)
• USB kabel za punjenje
• Accessory Kit (includes magnet and hook attachments)
• Durable Carrying Case
• korisnički priručnik

Image: The Hiacinto ES550 Endoscope main unit with its 5-inch screen, the coiled 5-meter gooseneck probe, and the included carrying case.

4. Proizvod je gotovview

4.1 glavna jedinica

• 5-inch IPS LCD Screen: High-definition display for real-time viewing of inspection footage.
• Upravljačka ploča: Buttons for power, menu navigation, photo/video capture, LED light adjustment, and screen functions.
• Priključak sonde: Port for attaching the detachable gooseneck probe.
• Priključak za punjenje: USB priključak za punjenje unutarnje baterije.
• Utor za TF kartice: For inserting or removing the 32GB memory card.

4.2 Gooseneck Probe

• 5.0 MP HD Autofocus Camera: Provides clear images and automatically adjusts focus from 3 cm to 100 cm.
• Podesiva LED svjetla: 10 integrated LED lights with 3 levels of brightness for illuminating dark inspection areas.
• IP68 ocjena vodootpornosti: Allows the probe to be submerged in water for inspection of pipes and drains.
• Odvojivi dizajn: The probe cable can be easily detached and replaced.

Slika: Detaljna view of the 5-inch IPS HD screen, highlighting its clarity and size.

Image: Illustration demonstrating the detachable cable design, allowing for easy replacement or repair.

5. Postavljanje

5.1 Punjenje uređaja

1. Connect the provided USB charging cable to the charging port on the main unit.
2. Drugi kraj USB kabela priključite na standardni USB adapter za napajanje (nije uključen) ili na USB priključak računala.
3. The charging indicator light will illuminate. A full charge typically takes approximately 3-4 hours and provides up to 4 hours of continuous operation.
4. Nakon što je potpuno napunjeno, indikatorska lampica se može promijeniti ili ugasiti. Isključite kabel za punjenje.

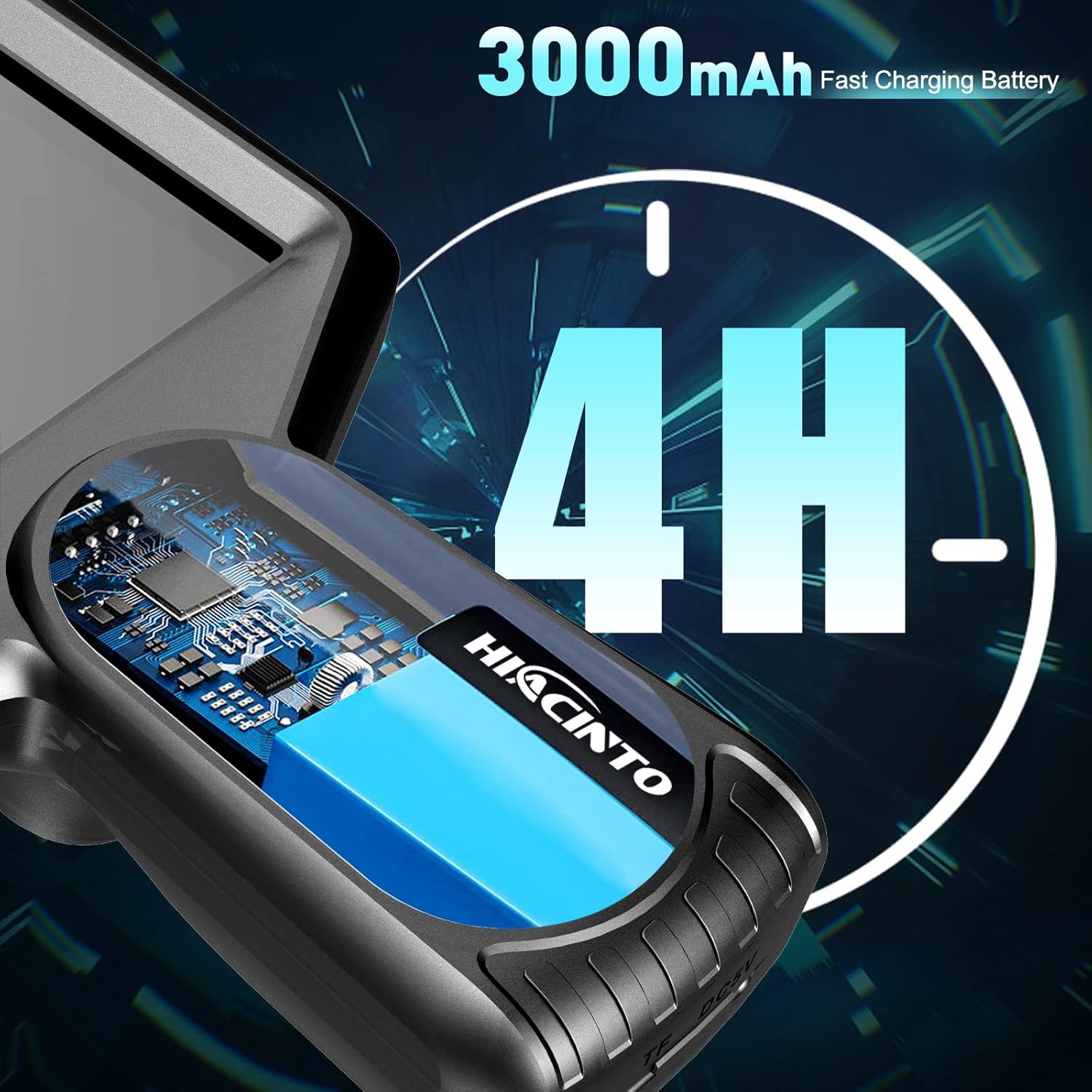

Image: Visual representation of the 3000mAh battery capacity, indicating up to 4 hours of continuous use.

5.2 Pričvršćivanje sonde

1. Ensure the main unit is powered off.
2. Align the connector of the gooseneck probe with the probe port on the main unit.
3. Gently push the connector in until it clicks securely into place.
4. To detach, press the release button (if present) or pull firmly but carefully on the connector.

5.3 Umetanje TF kartice

The device comes with a 32GB TF card for storing photos and videos. If not pre-installed:

1. Locate the TF card slot on the side of the main unit.
2. Insert the TF card with the metal contacts facing down (or as indicated by a diagram near the slot) until it clicks into place.
3. Za uklanjanje, lagano gurnite karticu dok ne izađe.

6. Upute za rad

6.1 Uključivanje/isključivanje

• Uključivanje: Pritisnite i držite tipku za napajanje (⏻) nekoliko sekundi dok se zaslon ne osvijetli.
• Isključivanje: Pritisnite i držite tipku za napajanje (⏻) again until the screen turns off.

6.2 Podešavanje LED svjetala

The probe features 10 LED lights with adjustable brightness:

• Pritisnite gumb za svjetlo (☀) repeatedly to cycle through 3 levels of brightness (Low, Medium, High) and Off.

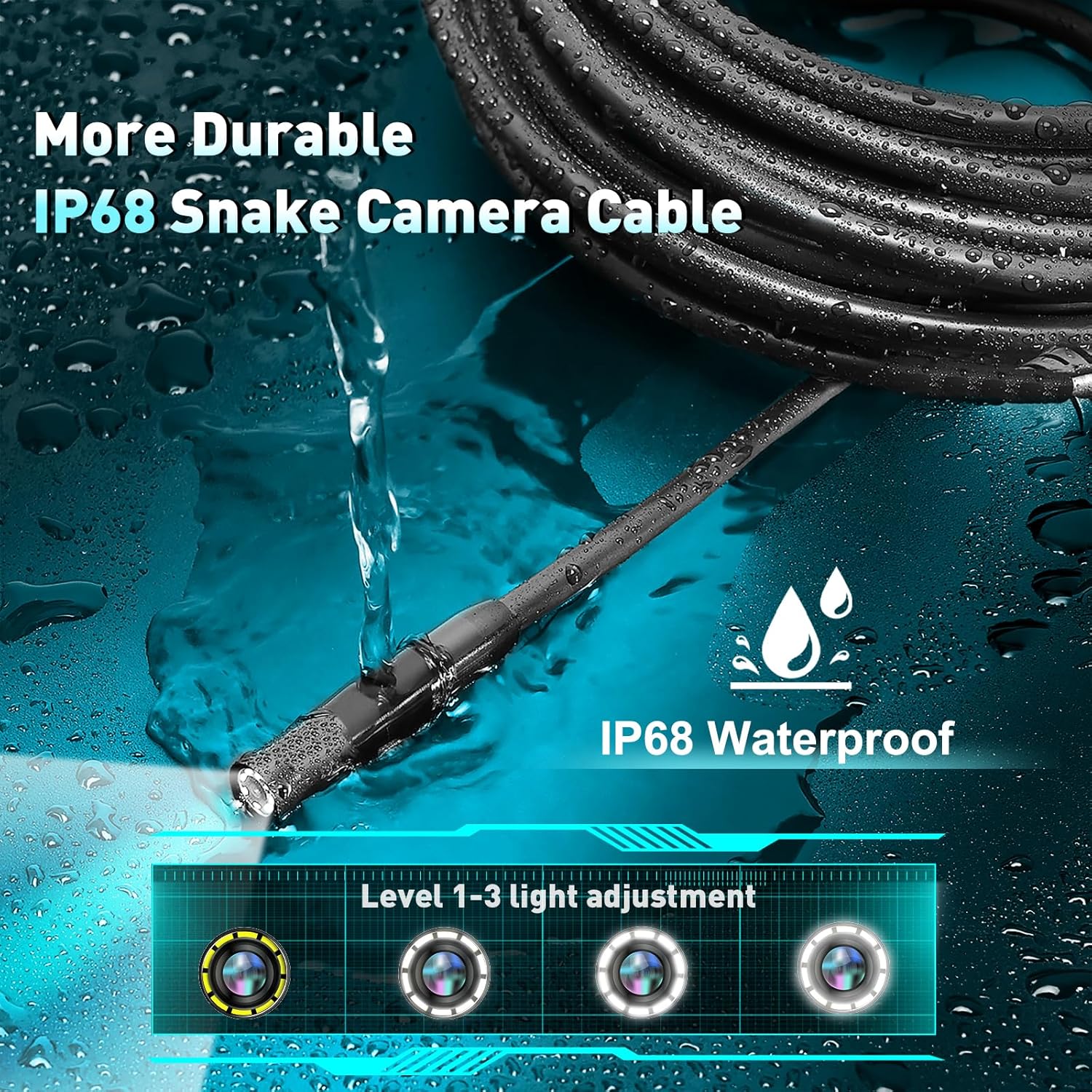

Image: The IP68 waterproof probe tip with its 10 LED lights, illustrating the three levels of light adjustment.

6.3 Snimanje fotografija i videozapisa

• Snimi fotografiju: Dok viewživjeti footage, press the Photo button (📷) once to capture an image. The image will be saved to the TF card.
• Snimi video: Press the Video button (●) once to start recording. Press it again to stop recording. Videos are saved to the TF card.

6.4 Funkcije zaslona

The ES550 offers several screen display options:

• Zum: Use the Up/Down arrow buttons to zoom in or out (up to 3x magnification).
• Screen Reversal: Press the OK button to rotate the image 180 degrees, useful when the probe is inverted.
• Zamrzavanje slike: Some models may have a dedicated button or a long press function to freeze the current image on screen. Consult the on-screen icons for specific controls.

Image: A technical diagram illustrating the 5.0 MP HD autofocus lens and its focal distance range of 3cm to 1 meter.

6.5 Korištenje dodatne opreme

The included magnet and hook attachments can be screwed onto the end of the probe for retrieving small objects:

• Magneti: Useful for picking up metallic items like dropped screws or keys.
• Kuka: Can be used to retrieve non-magnetic items or to maneuver cables.

7. Održavanje

7.1 Čišćenje

• Objektiv kamere: Gently wipe the camera lens with a soft, lint-free cloth. For stubborn dirt, use a small amount of lens cleaning solution.
• Kabel sonde: Wipe the probe cable with a damp cloth after use, especially if it has been in dirty or wet environments.
• Glavna jedinica: Clean the main unit with a dry, soft cloth. Avoid using abrasive cleaners or solvents.

7.2 Skladištenje

• Store the endoscope and all accessories in the provided durable carrying case.
• Uređaj držite na hladnom i suhom mjestu, dalje od izravne sunčeve svjetlosti i ekstremnih temperatura.
• If storing for an extended period, ensure the battery is partially charged (around 50%) to prolong its lifespan. Recharge every 3-6 months.

8. Rješavanje problema

9. Specifikacije

10. Jamstvo i podrška

Hiacinto provides a 24-month return policy and helpful customer support for the ES550 Autofocus Endoscope.

• For technical assistance, troubleshooting, or warranty claims, please contact Hiacinto customer support.
• Refer to the product packaging or the official Hiacinto webstranicu za najnovije kontaktne podatke.
