JIVOIT Full Size Stairway Bunk Bed with Trundle Instruction Manual

1. Uvod

This manual provides essential instructions for the assembly, operation, and maintenance of your JIVOIT Full Size Stairway Bunk Bed with Trundle. Please read all instructions carefully before assembly and use to ensure safe and proper functioning of the product. Keep this manual for future reference.

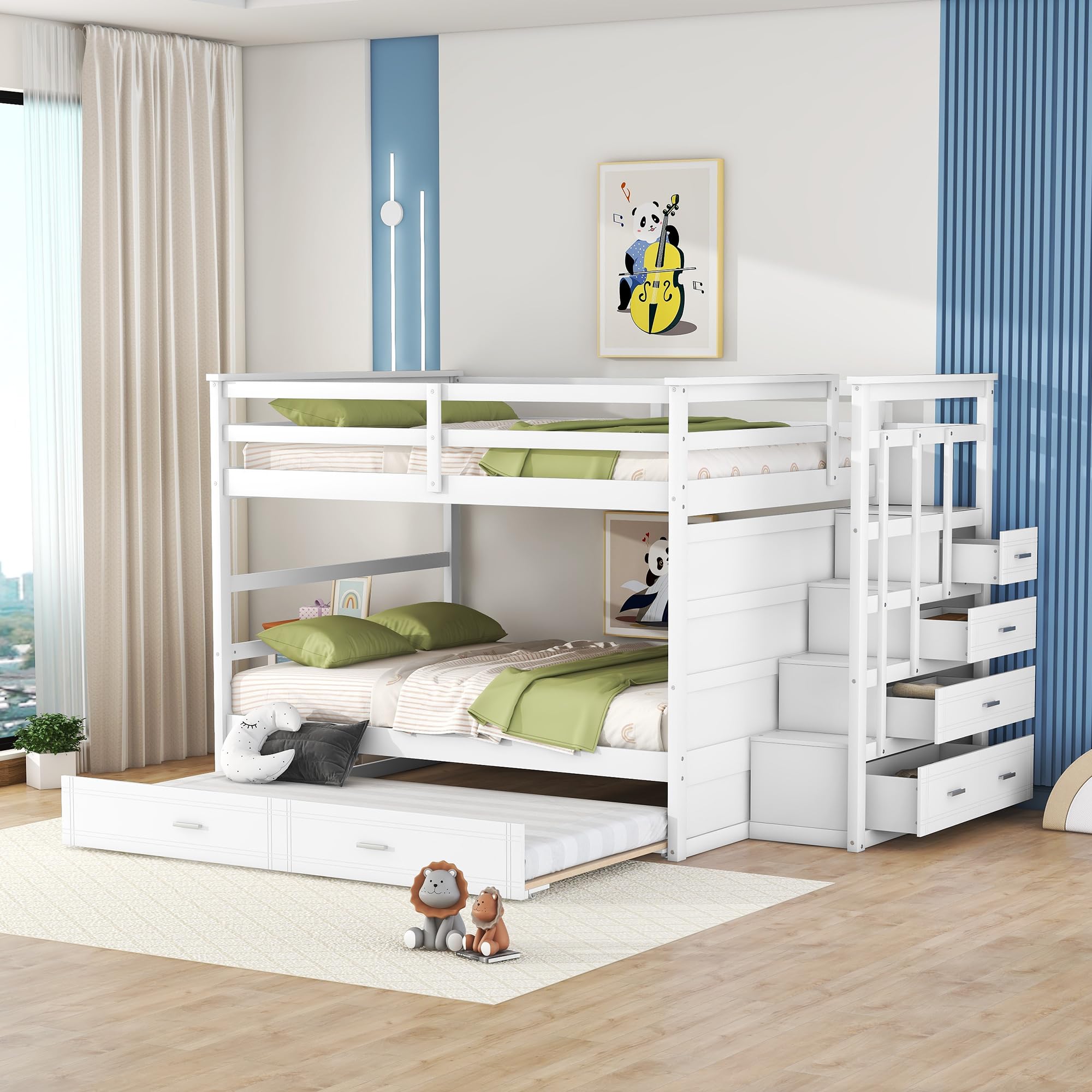

Slika 1.1: Gotovoview of the JIVOIT Full Size Stairway Bunk Bed with Trundle. This bed features a full-over-full design, a staircase with integrated storage drawers, and a pull-out trundle bed.

2. Sigurnosne informacije

UPOZORENJE: Nepoštivanje ovih upozorenja i uputa može rezultirati ozbiljnim ozljedama ili smrću.

• Read all instructions before using the bunk bed.
• Ne dopuštajte djeci mlađoj od 6 godina da budu na gornjem krevetu.
• Ensure all connections are tight and secure before use. Periodically check and tighten hardware.
• Use only mattresses that are 4-6 inches thick for the upper bed and trundle, and 6-8 inches thick for the bottom bed.
• Always use the recommended mattress size to prevent entrapment or falls.
• Zabraniti više od jedne osobe na gornjem ležaju.
• Prohibit jumping on the bed.
• Always use the staircase for entering and exiting the upper bunk. Do not use alternative climbing methods.
• Nemojte pričvršćivati ​​niti vješati predmete na bilo koji dio kreveta na kat koji nisu namijenjeni za korištenje s krevetom; na primjerampali ne ograničavajući se na kuke, pojaseve i užad za skakanje.
• Sačuvajte ove upute za buduću upotrebu.

3. Postavljanje i montaža

Assembly of this bunk bed requires two adults. Please ensure all parts are present before beginning assembly. Refer to the included assembly guide for detailed step-by-step instructions and diagrams.

3.1. Raspakiranje i identifikacija dijelova

Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Identify each part using the provided parts list in your separate assembly guide.

3.2. Potreban alat

Typically, the necessary tools are included with your purchase. These usually include an Allen wrench. A Phillips head screwdriver may also be required.

3.3. Koraci montažeview

1. Assemble the main bed frames (upper and lower bunks).
2. Attach the support slats to both bed frames.
3. Assemble the staircase unit, including the storage drawers.
4. Connect the staircase unit securely to the main bunk bed frame.
5. Assemble the trundle bed frame and install its slats.
6. Insert the trundle bed under the lower bunk.

Slika 3.1: Sastavljeni view of the bunk bed frame, showcasing the slat support system for both upper and lower bunks, and the integrated staircase with storage.

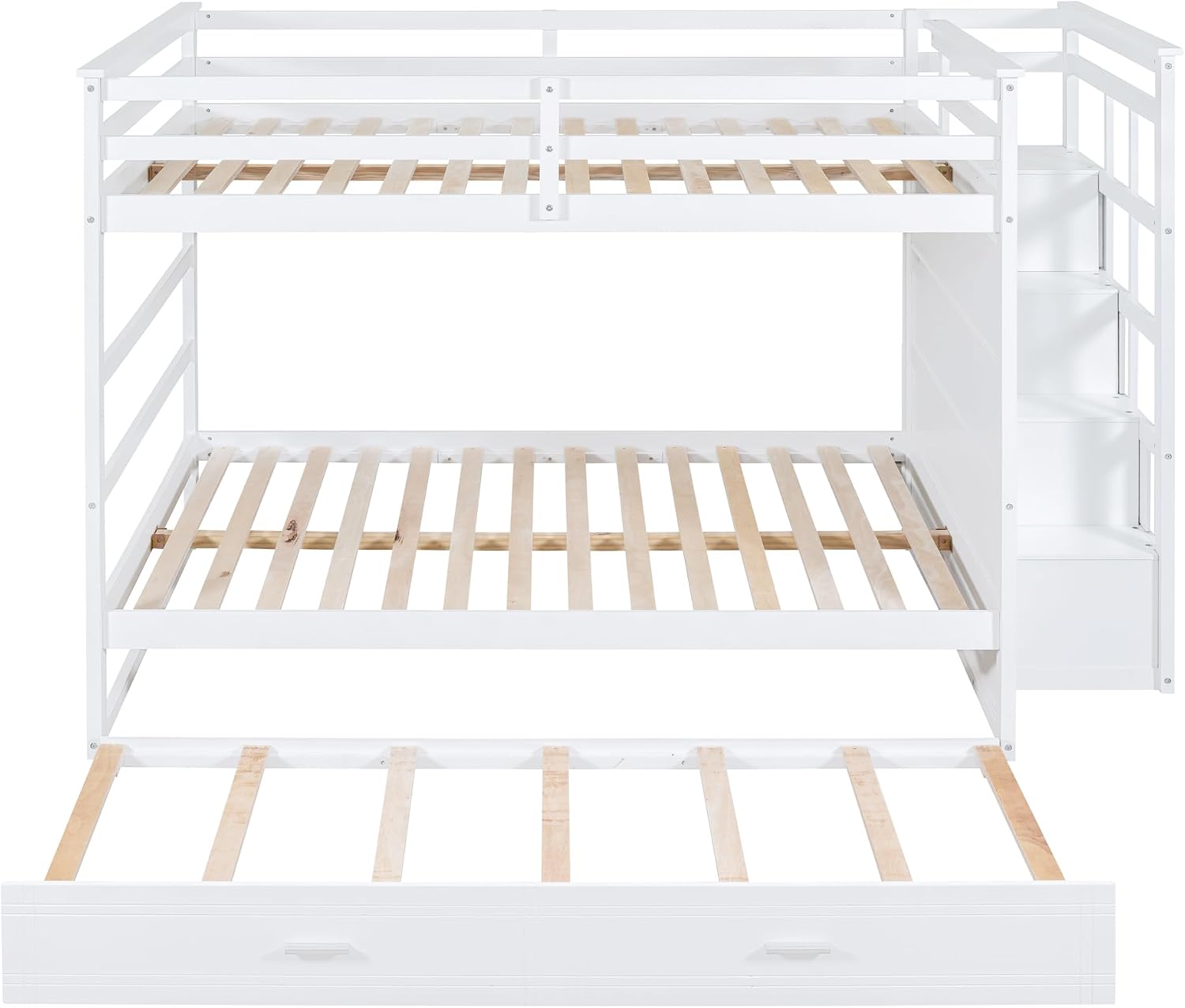

Slika 3.2: Prednja strana view of the bunk bed, highlighting the sturdy slat foundation for mattress support on both levels.

4. Operacija

4.1. Using the Bunk Beds

The JIVOIT bunk bed features a full-over-full design. Ensure mattresses are placed correctly on the slats. The upper bunk is accessed via the integrated staircase.

4.2. Trundle Bed Operation

The trundle bed is designed to slide out from under the lower bunk. To use, gently pull the trundle frame outwards until fully extended. To store, push the trundle back under the lower bunk until it is flush with the bed frame.

Image 4.1: The bunk bed with the trundle bed fully extended, demonstrating its functionality for additional sleeping space.

Slika 4.2: Bočna strana view of the bunk bed, showing the trundle bed extended from beneath the lower bunk.

4.3. Ladice za pohranu

The staircase unit includes four integrated storage drawers. Pull the handles to open and push to close. Do not overload drawers to ensure smooth operation and prevent damage.

Slika 4.3: Krupni plan view of the staircase, highlighting the four functional storage drawers.

Slika 4.4: Detaljno view of the staircase, showing the design and accessibility of the storage drawers.

5. Održavanje

5.1. Čišćenje

Obrišite površine mekom, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish. For stubborn marks, use a mild soap solution and dry immediately.

5.2. Provjere hardvera

Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections to ensure they are tight. Re-tighten any loose hardware to maintain the bed's stability and safety.

5.3. Njega drva

Protect the wood from direct sunlight and extreme temperature changes to prevent warping or cracking. Use coasters or pads under items placed on the bed frame to avoid scratches.

6. Rješavanje problema

6.1. Škripavi zvukovi

If the bed makes squeaking noises, check all bolts and screws. Loose hardware is a common cause of squeaking. Tighten all connections securely. Ensure the bed is on a level surface.

6.2. Trundle Not Sliding Smoothly

Check for any obstructions under the bed or in the trundle's path. Ensure the wheels are clean and free of debris. If the trundle still does not slide smoothly, inspect the tracks for damage or misalignment.

6.3. Drawers Sticking

Ensure the drawers are not overloaded. Check the drawer slides for any debris or damage. Lubricate the slides with a silicone-based lubricant if necessary.

7. Specifikacije

Image 7.1: Detailed diagram showing the dimensions of the JIVOIT Full Size Stairway Bunk Bed with Trundle, including length, width, and height measurements for all components.

8. Informacije o jamstvu

JIVOIT products are manufactured with quality and care. This product comes with a limited manufacturer's warranty covering defects in materials and workmanship under normal use. Please refer to your purchase documentation or contact customer support for specific warranty terms and conditions.

9. Korisnička podrška

If you have any questions regarding the assembly, operation, or maintenance of your JIVOIT bunk bed, or if you require replacement parts, please contact our customer support team. Have your model number and purchase information ready when you call or email.

Podaci za kontakt:

• For assistance, please refer to the contact details provided with your purchase or visit the official JIVOIT webmjesto.
