1. Sigurnosne informacije
This laser module is a Class 4 laser product. Improper use can result in serious injury, including eye damage, skin burns, and fire. Always adhere to the following safety guidelines:
- Zaštita očiju: Always wear appropriate laser safety goggles that filter 450nm blue light when operating or observing the laser module in operation. Never look directly into the laser beam.
- Zaštita kože: Izbjegavajte izravno izlaganje kože laserskoj zraki.
- Radno područje: Operate the laser in a well-ventilated area. Ensure the work surface is fire-resistant and clear of flammable materials.
- Nadzor: Never leave the laser module operating unattended.
- Djeca i kućni ljubimci: Keep children and pets away from the laser module and its operating area.
- Hitno zaustavljanje: Familiarize yourself with the emergency stop procedure for your laser engraving/cutting machine.
- Vlast: Ensure the power supply matches the module's requirements (DC 12V/24V 3.5A).
2. Postavljanje i instalacija
This section outlines the steps for installing your AENBUSLM laser module. Ensure all safety precautions are followed before beginning installation.
2.1 Sadržaj paketa
Provjerite jesu li sve komponente prisutne u vašem paketu:
- AENBUSLM Laser Module
- Zračna pumpa
- Cijev zračne pumpe
- External Power Cord
- First to Second Line + External Power Cord
- 3P Line (XH2.54-3P socket)
- Lens Replacement Tool + 1.5mm L Wrench
- Air Pump Power Cord
- Focus Fixing Plate
- Replaceable Protective Lens
Image 2.1: Included components for the AENBUSLM Laser Module. This includes the laser module itself, an air pump, various connection cables, tools for maintenance, and a focus fixing plate.
2.2 Module Connection
The laser module is compatible with both 12V and 24V devices. Connect the module to your laser engraving/cutting machine using the provided 3P line (XH2.54-3P socket).
- Ulazna snaga: DC 12V/24V 3.5A.
- Kontrolna linija: Simple pluggable installation method.
Image 2.2: Detailed wiring diagram illustrating different connection configurations for the laser module, including VIN, PWM, and GND connections.
2.3 Air Assist Installation
The air assist kit is included to enhance cutting performance and maintain cleaner edges.
- Connect the air pump tube to the air assist nozzle on the laser module.
- Connect the air pump to its power source using the provided air pump power cord.
Image 2.3: The AENBUSLM laser module shown with the air assist hose connected to an external air pump, illustrating the setup for enhanced cutting.
2.4 Podešavanje fokusa
Proper focus is critical for optimal engraving and cutting results. Use the provided focus fixing plate to set the correct focal length.
- Place the focus fixing plate on your material.
- Lower the laser module until the nozzle touches the focus fixing plate.
- Secure the laser module in this position.
- Remove the focus fixing plate before operation.
3. Upute za rad
The AENBUSLM laser module features 10W optical output power and 80W machine power, designed for precision engraving and cutting.
3.1 Ključne značajke
- Izlazna snaga: 10W (10000mW) optical output.
- Beam Spot: Double ultra-fine compressed spot (0.06*0.06mm) due to built-in FAC technology.
- Valna duljina: 450nm.
- Power Modulation: Supports 5V PWM modulation.
- Zračna pomoć: Integrated air assist for cleaner cuts and deeper penetration.
- Zaštita očiju: Detachable eye protection cover filters blue light.
Slika 3.1: Prekoview of the AENBUSLM laser module's main features, such as 10W output, eye protection, air assist, and a precise laser beam.
3.2 Mogućnosti graviranja i rezanja
The module offers versatile performance on various materials:
- Direct Engraving: Mirror stainless steel can be engraved directly without prior black coating.
- Brzina graviranja: Up to 300mm/s on 304 stainless steel with a 45mm focal length.
- Cutting Ability: Cuts through 8mm thickness plywood in a single pass at 1.5mm/s with a 45mm focal length.
- Kompatibilni materijali: Pine board, wood, stone, bamboo, basswood, black acrylic, plywood, coated glass, lacquered metal, plastic, leather, aluminum oxide, ceramics, and stainless steel.

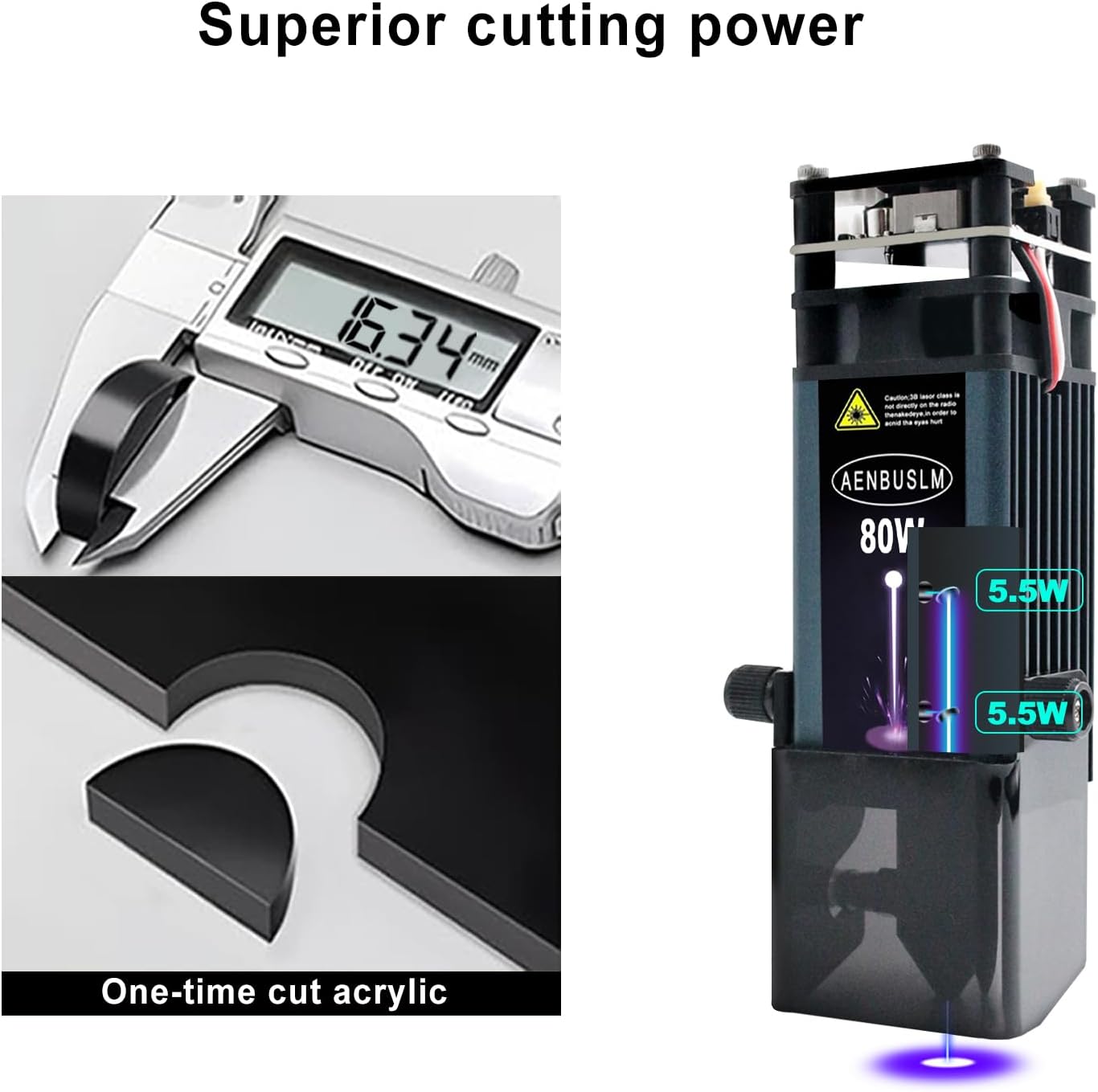

Image 3.2: A visual representation of the laser module's cutting capability, specifically demonstrating a clean, single-pass cut on acrylic material.
3.3 Benefits of Air Assist
Utilizing the air assist feature significantly improves results:
- Cleaner Edges: Reduces charring and discoloration during cutting.
- Deeper Cuts: Enhances the laser's ability to cut through thicker materials.
- Povećana učinkovitost: Saves time by achieving desired results in fewer passes.
- Smoke-free Environment: Helps clear smoke and debris from the work area.
Image 3.3: A side-by-side comparison illustrating the improved quality of laser work when using air assist versus not using it, showing cleaner cuts and less charring.
3.4 Demonstracija rada
The following video demonstrates the AENBUSLM laser module's cutting capabilities on plywood.
Video 3.4: A demonstration of the AENBUSLM 80W laser module performing a cutting operation on a piece of wood, showcasing its precision and efficiency.
4. Održavanje
Redovito održavanje osigurava dugotrajnost i optimalne performanse vašeg laserskog modula.
4.1 Čišćenje zaštitne leće
The protective lens can accumulate debris over time, affecting laser performance. Use the provided lens replacement tool and a soft, lint-free cloth with lens cleaning solution to gently clean the lens. Replace the lens if it is scratched or damaged.
4.2 Sustav hlađenja
The laser module features a built-in fan cooling system (fan speed 10000 rpm) to maintain stable performance. Ensure the fan vents are clear of obstructions to allow for proper airflow.
4.3 Opća briga
- Keep the module free from dust and moisture.
- Avoid dropping or subjecting the module to strong impacts.
- Modul čuvajte na suhom i hladnom mjestu kada se ne koristi.
5. Rješavanje problema
If you encounter issues with your AENBUSLM laser module, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Otopina |
|---|---|---|
| Laser not emitting light | No power, loose connection, faulty control signal, module failure. | Check power supply and connections. Verify control signal from machine. Contact support if issue persists. |
| Slab laserski izlaz / Loše graviranje/rezanje | Incorrect focus, dirty lens, incorrect power settings, material incompatibility. | Adjust focus using the fixing plate. Clean the protective lens. Verify power and speed settings in software. Ensure material is compatible. |
| Zračna pomoć ne radi | Air pump not powered, tube kinked or disconnected, nozzle clogged. | Check air pump power and connections. Inspect air tube for obstructions. Clean the air assist nozzle. |
| Pregrijavanje | Blocked fan vents, prolonged high-power operation without adequate cooling. | Ensure fan vents are clear. Allow module to cool down. Operate within recommended parameters. |
If these steps do not resolve the issue, please contact AENBUSLM customer support.
6. Specifikacije
Detailed technical specifications for the AENBUSLM Laser Module (Model JG-10W-WZB).
| Značajka | Specifikacija |
|---|---|
| Broj modela | JG-10W-WZB |
| Optička izlazna snaga | 10 W (10000 mW) |
| Snaga stroja | 80 W |
| Laserska valna duljina | 450 nm |
| Veličina točke snopa | 0.06*0.06mm (FAC technology) |
| Ulazni voltage | DC 12V/24V |
| Ulazna struja | 3.5A |
| Upravljačko sučelje | XH2.54-3P socket (5V PWM modulation) |
| Brzina ventilatora | 10000 okretaja u minuti |
| Dimenzije proizvoda | 5.7 x 2 x 1.6 inča (143 mm x 40 mm x 40 mm) |
| Težina artikla | 1.1 funti |
| Diode Lifetime | 20000 sata |
Image 6.1: Dimensional drawing of the AENBUSLM laser module and its accompanying air pump, indicating measurements in millimeters.
7. Jamstvo i podrška
AENBUSLM is committed to providing high-quality after-sales service.
- Korisnička podrška: If you encounter any problems while using this product, you can contact our after-sales service team at any time.
- Tehnička pomoć: Our professional technicians are available to provide solutions and assistance promptly.
