GL.iNet GL-MT6000, GL-AXT1800

GL.iNet Router User Manual

Models: GL-AXT1800 (Slate AX) & GL-MT6000 (Flint 2)

1. Uvod

This manual provides comprehensive instructions for the GL.iNet GL-AXT1800 (Slate AX) and GL-MT6000 (Flint 2) Wi-Fi 6 routers. These devices are designed to provide high-speed, secure, and reliable network connectivity for various applications, from travel to home gaming.

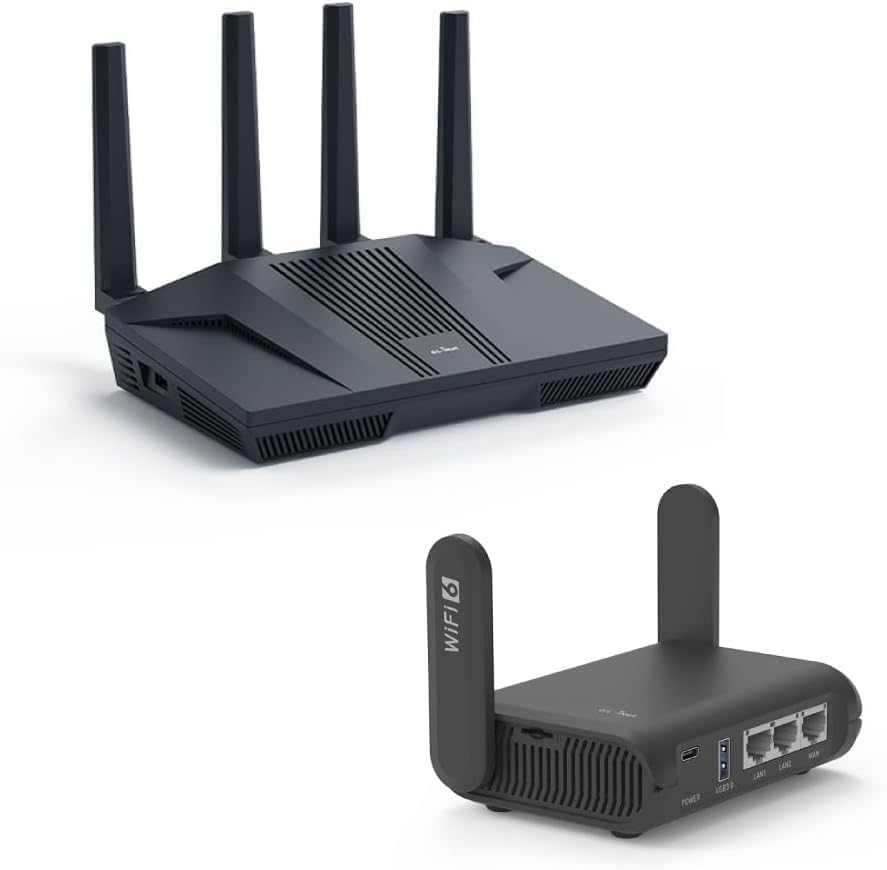

GL.iNet GL-AXT1800 (Slate AX) and GL-MT6000 (Flint 2) routers side-by-side

Slika 1.1: The GL.iNet GL-MT6000 (Flint 2) router (top) and GL-AXT1800 (Slate AX) travel router (bottom). The Flint 2 is a larger, more powerful home router, while the Slate AX is compact and designed for portability.

2. Postavljanje i početna konfiguracija

This section guides you through the initial setup process for both GL.iNet routers.

2.1 GL-AXT1800 (Slate AX) Setup

GL.iNet GL-AXT1800 (Slate AX) router showing power, USB, LAN, and WAN ports

Slika 2.1: Stražnji view of the GL-AXT1800 (Slate AX) router, highlighting its power input, USB 3.0 port, two LAN ports, and one WAN port.

GL.iNet GL-AXT1800 (Slate AX) router placed on a bed next to camera gear, emphasizing its portability

Slika 2.2: The compact GL-AXT1800 (Slate AX) router, ideal for travel and on-the-go connectivity, shown alongside typical travel items.

Priključak za napajanje: Connect the provided power adapter to the router's power input and plug it into an electrical outlet.
Internetska veza:
- For wired internet, connect an Ethernet cable from your modem or existing router's LAN port to the WAN port on the Slate AX.
- For wireless internet (repeater mode), you will configure this later via the web sučelje.
Povezivanje uređaja:
- Wired: Connect your computer or device to one of the LAN portove pomoću Ethernet kabela.
- Bežični: Tražiti the router's default Wi-Fi SSID (printed on the router's label) and connect to it. The default password is also on the label.
Pristup Web sučelje: Otvori a web preglednik i idite na http://192.168.8.1. Follow the on-screen instructions to set up your administrative password and configure your internet connection.

2.2 GL-MT6000 (Flint 2) Setup

GL.iNet GL-MT6000 (Flint 2) router showing power, WAN, and LAN ports

Slika 2.3: Stražnji view of the GL-MT6000 (Flint 2) router, illustrating its DC 12V power input, 2.5G WAN port, 2.5G WAN/LAN port, three 1G LAN ports, and reset button.

Priključak za napajanje: Connect the provided power adapter to the router's DC 12V input and plug it into an electrical outlet.
Internetska veza: Connect an Ethernet cable from your modem or existing router's LAN port to the 2.5G WAN port on the Flint 2.
Povezivanje uređaja:
- Wired: Connect your computer or device to any of the LAN ports (2.5G WAN/LAN, LAN1, LAN2, LAN3) using an Ethernet cable.
- Bežični: Tražiti the router's default Wi-Fi SSID (printed on the router's label) and connect to it. The default password is also on the label.
Pristup Web sučelje: Otvori a web preglednik i idite na http://192.168.8.1. Follow the on-screen instructions to set up your administrative password and configure your internet connection.

3. Operating Your Routers

Both GL.iNet routers offer advanced features for enhanced network performance and security.

3.1 Wi-Fi 6 Povezivost

Both the Slate AX and Flint 2 support Wi-Fi 6 (802.11ax) standard, providing faster speeds, lower latency, and increased capacity for multiple devices.

GL.iNet GL-AXT1800 (Slate AX) router surrounded by various connected devices, illustrating Wi-Fi 6 capabilities

Slika 3.1: The Slate AX router efficiently managing connections for multiple devices, including gaming consoles and smartphones, leveraging Wi-Fi 6 technology for optimal performance.

GL.iNet GL-MT6000 (Flint 2) router with Wi-Fi speeds of 1148Mbps (2.4GHz) and 4804Mbps (5GHz) displayed

Slika 3.2: The Flint 2 router delivering lightning-fast Wi-Fi 6 speeds, with specific bandwidths for 2.4GHz and 5GHz bands highlighted.

Dual-Band rad: Both routers operate on 2.4GHz and 5GHz bands. The Slate AX offers combined speeds of 1800 Mbps (600 Mbps for 2.4GHz, 1200 Mbps for 5GHz). The Flint 2 provides up to 6 Gbps (1148 Mbps for 2.4GHz, 4804 Mbps for 5GHz).
MU-MIMO i OFDMA: These technologies improve efficiency by allowing the router to communicate with multiple devices simultaneously, reducing congestion and improving overall network performance.

3.2 VPN and Security Features

GL.iNet routers are known for their robust security features, including pre-installed VPN clients.

GL.iNet GL-AXT1800 (Slate AX) router with logos for OpenVPN, WireGuard, Cloudflare, and IPv6, showing VPN speeds

Slika 3.3: The Slate AX router's security capabilities, featuring support for OpenVPN (up to 120 Mbps) and WireGuard (up to 550 Mbps), along with Cloudflare and IPv6 compatibility.

GL.iNet GL-MT6000 (Flint 2) router with logos for OpenVPN, WireGuard, Cloudflare, and IPv6, showing VPN speeds

Slika 3.4: The Flint 2 router's advanced security features, including OpenVPN (up to 190 Mbps) and WireGuard (up to 900 Mbps) support, alongside Cloudflare and IPv6.

OpenVPN & WireGuard: Both routers come with OpenVPN and WireGuard clients pre-installed, allowing you to connect to over 30 VPN service providers.
- Slate AX: OpenVPN up to 120 Mbps, WireGuard up to 550 Mbps.
- Flint 2: OpenVPN up to 190 Mbps, WireGuard up to 900 Mbps.
Cloudflare Encryption: Supported for enhanced privacy and security.
IPv6 podrška: Ensures compatibility with the latest internet protocols.

3.3 Advanced Features (Flint 2)

The GL-MT6000 (Flint 2) offers additional features for high-demand users.

2.5G Ethernet portovi: Equipped with 2.5G WAN and 2.5G WAN/LAN ports, providing ultra-fast wired connections for gaming and high-bandwidth applications.
High-Speed Gaming: Designed for uninterrupted performance with 8-stream Wi-Fi 6 technology, ensuring stable and high-speed connections for online gaming.

4. Održavanje

Regular maintenance ensures optimal performance and longevity of your GL.iNet routers.

Ažuriranja firmvera: Periodically check for and install firmware updates via the router's web sučelje. Ažuriranja često uključuju poboljšanja performansi, sigurnosne zakrpe i nove značajke.
Fizičko čišćenje: Keep the routers free from dust. Use a soft, dry cloth to wipe the exterior. Ensure ventilation holes are not obstructed.
Ponovno pokretanje: If you experience network issues, a simple restart of the router (unplugging power for 10 seconds and plugging back in) can often resolve minor glitches.
Konfiguracija sigurnosne kopije: Redovito izrađujte sigurnosne kopije konfiguracijskih postavki usmjerivača putem web interface. This allows for quick restoration in case of a factory reset or other issues.

5. Rješavanje problema

Ovaj odjeljak obrađuje uobičajene probleme s kojima se možete susresti i nudi rješenja.

Problem	Mogući uzrok	Otopina
Cannot access the router's web interface (192.168.8.1)	Incorrect IP address, device not connected to router, IP conflict.	Provjerite je li vaš uređaj povezan s usmjerivačem putem Wi-Fi-ja ili Etherneta. Verify your device's IP settings are set to obtain an IP address automatically (DHCP). Try restarting both the router and your device. If issues persist, perform a factory reset (see manual for specific reset button location and procedure).
Nema internetske veze	WAN cable disconnected, modem issue, incorrect internet settings.	Check if the Ethernet cable is securely connected to the router's WAN port and your modem. Ponovno pokrenite modem, a zatim ruter. Prijavite se na ruter web interface and check the internet status. Ensure your internet settings (e.g., PPPoE, DHCP, Static IP) are correct for your ISP.
Spore brzine Wi-Fi-ja ili česti prekidi veze	Interference, too many devices, outdated firmware, router placement.	Move the router to a central location, away from obstructions and other electronic devices. Ažurirajte firmware rutera na najnoviju verziju. Consider changing Wi-Fi channels in the router settings to avoid interference. Za optimalne performanse provjerite podržavaju li vaši uređaji Wi-Fi 6.
VPN connection issues	Incorrect VPN settings, VPN server issues, firewall blocking.	Double-check your VPN configuration settings (server address, username, password, protocol). Try connecting to a different VPN server location. Ensure your VPN service subscription is active. Temporarily disable any firewall settings on the router or your device to test if it's causing the issue.

6. Specifikacije

Key technical specifications for the GL.iNet GL-AXT1800 (Slate AX) and GL-MT6000 (Flint 2) routers.

Značajka	GL-AXT1800 (Slate AX)	GL-MT6000 (Flint 2)
Wi-Fi standard	Wi-Fi 6 (802.11ax)	Wi-Fi 6 (802.11ax)
Wi-Fi Speed (Combined)	1800 Mbps (2.4 GHz: 600 Mbps, 5 GHz: 1200 Mbps)	Up to 6 Gbps (2.4GHz: 1148 Mbps, 5GHz: 4804 Mbps)
Ethernet priključci	1x WAN, 2x LAN (Gigabit)	1x 2.5G WAN, 1x 2.5G WAN/LAN, 3x 1G LAN
VPN Speeds (WireGuard)	Do 550 Mbps	Do 900 Mbps
VPN Speeds (OpenVPN)	Do 120 Mbps	Do 190 Mbps
Vrsta antene	External (Foldable)	External (Fixed)
Posebne značajke	Pocket-sized, Travel Router, USB 3.0 Port	High-speed gaming, DDR4 1GB / eMMC 8GB

7. Informacije o jamstvu

GL.iNet products typically come with a limited manufacturer's warranty. For specific warranty terms and conditions, including duration and coverage, please refer to the warranty card included with your product or visit the official GL.iNet webmjesto.

Zadržite svoj dokaz o kupnji za jamstvene zahtjeve.

8. Korisnička podrška

For technical assistance, troubleshooting, or further inquiries regarding your GL.iNet GL-AXT1800 (Slate AX) or GL-MT6000 (Flint 2) routers, please utilize the following resources:

Official GL.iNet Webstranica: Posjetiti www.gl-inet.com za dokumentaciju o proizvodu, često postavljana pitanja, preuzimanja firmvera i forume zajednice.
Portal za online podršku: Access the support portal on the GL.iNet website for submitting support tickets or finding detailed guides.
Forum zajednice: Engage with other GL.iNet users and experts on the official forum for peer-to-peer support and discussions.

When contacting support, please have your product model number (GL-AXT1800 or GL-MT6000) and serial number ready.
