ANYPLUS USB 3.0 Hub Instruction Manual

1. Uvod

This manual provides instructions for the ANYPLUS USB 3.0 Hub, a portable 4-port USB extender designed to expand the connectivity of your devices. It facilitates high-speed data transfer and is compatible with a wide range of computers and peripherals.

2. Proizvod je gotovview

2.1 Značajke

• 4 USB 3.0 porta: Expands one USB port into four, allowing multiple device connections.
• Prijenos podataka velike brzine: Supports up to 5Gbps data transfer rate, compatible with USB 3.0, USB 2.0, and USB 1.1.
• Izdržljiv i prenosiv dizajn: Constructed from aluminum alloy, featuring an ultra-slim (10mm) and lightweight body for easy transport.
• Plug and Play: No driver installation required for operation.
• LED indikator: A blue LED light indicates the working status of the hub.
• Široka kompatibilnost: Works with various operating systems and devices including laptops, PCs, MacBooks, iMacs, Surface Pros, Mac Pros, flash drives, keyboards, mice, and printers.

2.2 Komponente

The ANYPLUS USB 3.0 Hub consists of the main hub unit with four USB 3.0 ports and an integrated USB-A connector cable for connecting to your host device.

Figure 1: The ANYPLUS USB 3.0 Hub features four USB 3.0 ports, enabling data transfer speeds up to 5Gbps, significantly faster than USB 2.0.

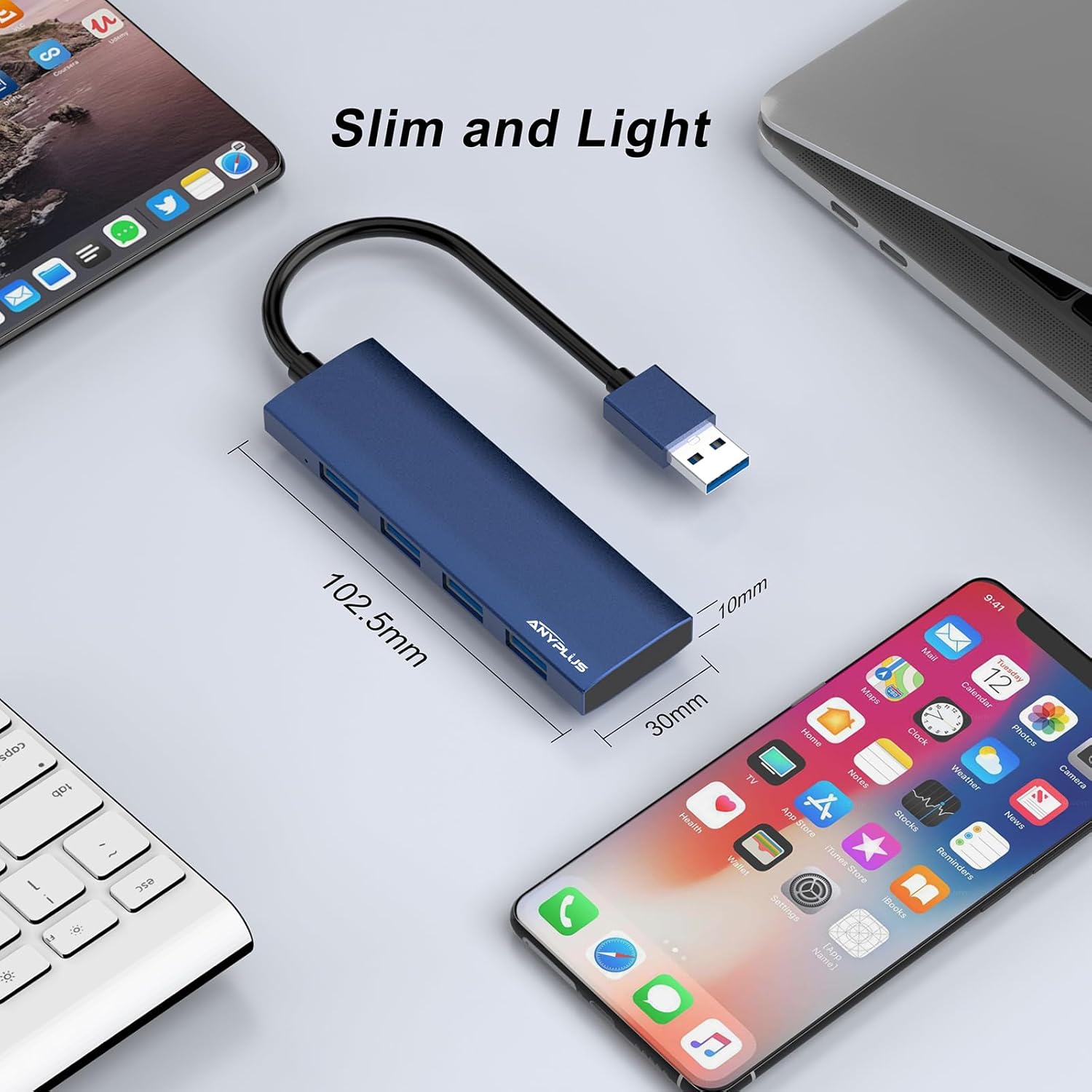

Figure 2: The ultra-slim design of the hub, measuring approximately 102.5mm in length, 30mm in width, and 10mm in thickness, makes it highly portable.

3. Postavljanje

The ANYPLUS USB 3.0 Hub is designed for simple plug-and-play operation. No software or drivers are required for installation.

1. Locate an available USB-A port on your computer (laptop, PC, MacBook, etc.).
2. Connect the integrated USB-A cable of the ANYPLUS USB 3.0 Hub into your computer's USB-A port.
3. The blue LED indicator on the hub will illuminate, signifying that the hub is powered on and ready for use.

Figure 3: The ANYPLUS USB Hub offers plug-and-play functionality, requiring no drivers for immediate use upon connection.

4. Upute za rad

4.1 Povezivanje uređaja

Once the hub is connected to your computer, you can connect up to four USB devices into the available USB 3.0 ports on the hub. These devices can include:

• USB Flash Pogoni
• External Hard Drives (self-powered recommended for optimal performance)
• Klavijature
• Miševi
• Pisači
• Fotoaparati

4.2 Prijenos podataka

The hub supports USB 3.0 speeds, allowing for data transfer up to 5Gbps. For optimal performance, connect USB 3.0 compatible devices to the hub. The hub is backward compatible with USB 2.0 and USB 1.1 devices, but data transfer will occur at the speed of the connected device (e.g., USB 2.0 speeds for USB 2.0 devices).

Figure 4: Experience rapid data transfer with USB 3.0, allowing you to transfer large files like movies, music, and pictures in seconds.

4.3 LED indikatora

The blue LED indicator light on the hub confirms that the device is powered and operational.

Note: The maximum output current supported by this USB hub is 900mA. It is not designed for charging devices that require higher power input.

5. Održavanje

• Čišćenje: Za čišćenje glavčine koristite meku, suhu krpu. Izbjegavajte tekuća sredstva za čišćenje ili abrazivne materijale.
• Skladištenje: Čuvajte hub na hladnom i suhom mjestu, dalje od izravne sunčeve svjetlosti i ekstremnih temperatura.
• Rukovanje: Avoid dropping the hub or subjecting it to strong impacts. Do not attempt to disassemble the device.

6. Rješavanje problema

• Uređaj nije prepoznat:
  • Ensure the hub is securely connected to your computer's USB port.
  • Try connecting the device directly to your computer's USB port to verify the device itself is functional.
  • Ponovno pokrenite računalo.
• Spora brzina prijenosa podataka:
  • Ensure both the hub and the connected device support USB 3.0 for maximum speed.
  • Avoid connecting high-power consumption devices simultaneously, as this can affect performance.
  • Isključite i ponovno spojite čvorište.
• LED indikator nije uključen:
  • Verify the hub is properly connected to a functioning USB port on your computer.
  • Pokušajte s drugim USB priključkom na računalu.

7. Specifikacije

8. Jamstvo i podrška

ANYPLUS is committed to providing quality products and customer satisfaction. For any questions or assistance regarding your USB hub, please contact our customer service team. We offer 24-hour friendly customer service to address your inquiries.
