1. Uvod
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your EVVO CE26 Pyramid Cooker Hood. Please read this manual thoroughly before installation and use, and keep it for future reference.
The EVVO CE26 Pyramid cooker hood is designed to effectively remove smoke, odors, and steam from your kitchen, ensuring a clean and pleasant cooking environment. It features a powerful 650 m³/h extraction capacity, LED lighting, and a multi-layer filtration system.
Image 1: EVVO CE26 Pyramid Cooker Hood overview, highlighting its A-class energy efficiency, 90 cm width, and 650 m³/h extraction power.
2. Sigurnosne informacije
Uvijek se pridržavajte osnovnih sigurnosnih mjera opreza prilikom korištenja električnih uređaja kako biste smanjili rizik od požara, strujnog udara i ozljeda.
- Osigurajte da napajanje odgovara voltage navedeno na tipskoj pločici.
- Instalaciju mora izvršiti kvalificirani tehničar u skladu s lokalnim propisima.
- Ne koristite napu ako je kabel za napajanje oštećen.
- Održavajte odgovarajuću ventilaciju u prostoriji kada se napa koristi istovremeno s plinskim ili drugim uređajima na gorivo.
- Clean the filters regularly to prevent grease accumulation, which can be a fire hazard.
- Nemojte flambirati ispod kuhinjske nape.
- Držite djecu podalje od uređaja tijekom rada.
3. Sadržaj paketa
Provjerite jesu li sve komponente prisutne u paketu:
- EVVO CE26 Pyramid Cooker Hood unit
- Aluminum grease filters (pre-installed)
- Active carbon filters (for recirculation mode, may be pre-installed or separate)
- Pribor za montažu (vijci, zidni tiplovi, nosači)
- Upute za uporabu (ovaj dokument)
4. Postavljanje i instalacija
The EVVO CE26 Pyramid cooker hood is designed for wall-mounted installation. Proper installation is crucial for optimal performance and safety.
4.1. Planiranje i priprema
- Choose a suitable location above your cooking surface, ensuring adequate clearance as per local building codes and manufacturer recommendations (typically 65-75 cm above electric hobs, 75-85 cm above gas hobs).
- Ensure the wall is strong enough to support the hood's weight (approximately 12 kg).
- Determine whether the hood will operate in extraction (ducted) or recirculation mode. For extraction, plan for ducting to the outside. For recirculation, ensure active carbon filters are installed.
- Ensure a power outlet is accessible within reach of the power cord.
4.2. Dimenzije

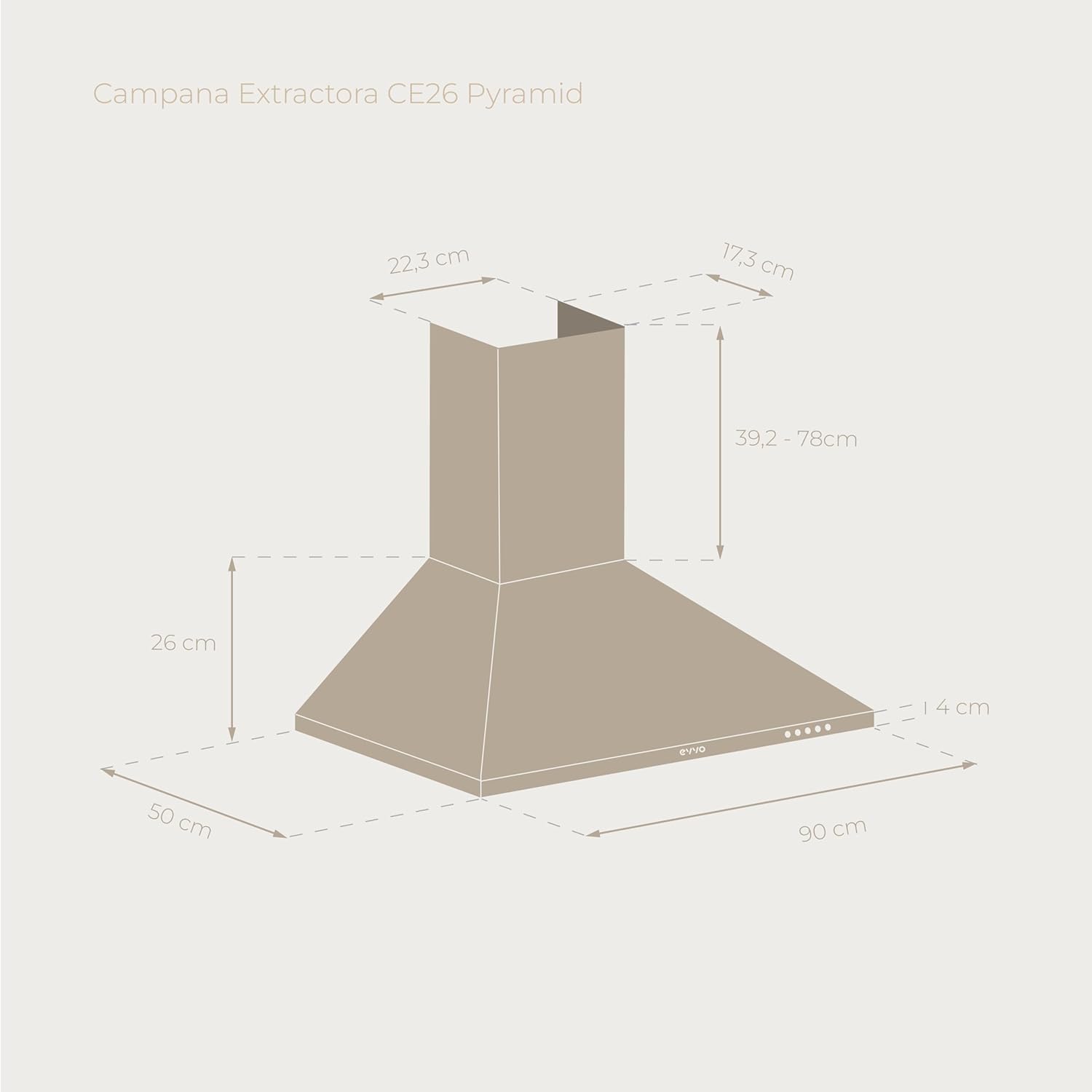

Image 2: Dimensional drawing of the EVVO CE26 Pyramid Cooker Hood, indicating key measurements for installation.
4.3. Mounting Steps (General)
- Mark the drilling points on the wall according to the provided template (if included) and the desired height.
- Izbušite rupe i umetnite tiple.
- Pričvrstite nosač(e) za montažu na zid.
- Carefully lift the hood and hang it onto the mounting bracket(s).
- Connect the ducting (if in extraction mode) or install the carbon filters (if in recirculation mode).
- Ugradite dijelove dimnjaka, pazeći da su pravilno poravnati i pričvršćeni.
- Connect the hood to the electrical power supply.
For detailed, model-specific installation instructions, refer to the separate installation guide provided with your product or consult a qualified professional.
5. Upute za rad
The EVVO CE26 Pyramid cooker hood features touch controls for easy operation.
5.1. Upravljačka ploča
The control panel is located on the front fascia of the hood and consists of touch buttons for various functions.
Image 3: The EVVO CE26 Pyramid Cooker Hood in a kitchen setting, showing the illuminated cooking area and the integrated touch controls.
5.2. Funkcije
- Uključivanje/isključivanje: Pritisnite gumb za napajanje kako biste uključili ili isključili napu.
- Odabir brzine ventilatora: The hood offers three adjustable fan speeds. Press the speed buttons (usually indicated by 1, 2, 3 or +/- symbols) to select the desired extraction level.
- Speed 1: For light cooking, simmering.
- Speed 2: For normal cooking, moderate steam and odors.
- Speed 3: For intensive cooking, frying, or strong odors.
- LED rasvjeta: Press the light button to turn the integrated LED lights on or off, providing illumination for your cooking area.
Image 4: Detail of the hood, highlighting its smoke-free operation due to its powerful extraction system.
6. Održavanje
Redovito održavanje osigurava dugotrajnost i optimalne performanse vaše kuhinjske nape.
6.1. Čišćenje eksterijera
- Obrišite površine od nehrđajućeg čelika mekom krpom dampobrađen blagim deterdžentom.
- Ne koristite abrazivna sredstva za čišćenje, korozivne deterdžente ili metalne četke, jer mogu oštetiti završnu obradu.
- Nakon čišćenja dobro osušite kako biste spriječili mrlje od vode.
Image 5: The hood's stainless steel construction, emphasizing its durability and aesthetic appeal.
6.2. Čišćenje/Zamjena filtera
Aluminum Grease Filters: These filters capture grease particles. They should be cleaned regularly (every 2-4 weeks, depending on usage) to maintain extraction efficiency.
- To remove: Locate the release latches on each filter, push, and pull down.
- To clean: Wash by hand in hot soapy water or in a dishwasher on a low-temperature cycle. Ensure they are completely dry before re-installing.
- To re-install: Insert the filters back into their slots and push until the latches click into place.
Active Carbon Filters (for recirculation mode): These filters absorb odors. They cannot be washed and must be replaced periodically (typically every 3-6 months, depending on usage).
- To replace: Remove the aluminum grease filters. Twist or unclip the old carbon filters from the motor housing. Install new carbon filters by reversing the process.
- Replacement carbon filters can be purchased from authorized dealers.
6.3. Zamjena LED svjetla
The hood is equipped with long-lasting LED lights. If a light needs replacement, contact a qualified service technician. Do not attempt to replace the LED modules yourself.
For information on recycling light bulbs, please refer to local recycling guidelines.
7. Rješavanje problema
Prije nego što kontaktirate korisničku službu, pogledajte sljedeću tablicu za uobičajene probleme i njihova rješenja.
| Problem | Mogući uzrok | Otopina |
|---|---|---|
| Napa ne radi. | Nema napajanja. | Check if the power plug is correctly inserted and the circuit breaker is on. |
| Low extraction efficiency. | Filteri za masnoću su začepljeni. Ugljeni filteri su zasićeni (recirkulacijski način rada). Nedovoljna ventilacija prostorije. | Očistite aluminijske filtere za masnoću. Replace the active carbon filters. Pazite da su prozori ili vrata lagano otvoreni za dovod zraka. |
| Svjetla ne rade. | Neispravan LED modul. | Contact a qualified service technician for replacement. |
| Pretjerana buka. | Neispravna instalacija. Obstruction in the fan. Labave komponente. | Check installation for secure mounting. Inspect fan for foreign objects (ensure power is off). Zategnite sve labave vijke. |
8. Specifikacije
| Značajka | Detalj |
|---|---|
| Broj modela | V0323 |
| Marka | EVVO |
| Tip | Pyramid Wall-Mounted Cooker Hood |
| Materijal | Nehrđajući čelik |
| Boja | Inox (nehrđajući čelik) |
| Dimenzije (Š x D x V) | 90 cm x 50 cm x 95.1 cm (adjustable height) |
| Težina | 12 kg |
| Kapacitet protoka zraka | 650 m³/h |
| Snaga motora | 165 W |
| Razina buke | 69 dB |
| Klasa energetske učinkovitosti | A |
| Vrsta rasvjete | LED (2 x 1.5 W) |
| Vrsta kontrole | Dodirnite gumbe |
| Brzine ventilatora | 3 |
| Vrsta filtra | 5-layer Aluminum Mesh, Active Carbon |
| Vrsta ventilacije | Kanalni / Recirkulacijski |
| Voltage | 120 V |
| Zemlja podrijetla | Kina |
Image 6: Energy efficiency rating 'A' of the EVVO CE26 Pyramid Cooker Hood.
9. Jamstvo i podrška
Your EVVO CE26 Pyramid Cooker Hood is covered by a manufacturer's warranty. For specific details regarding warranty terms, duration, and claims, please refer to the warranty card included with your product or contact EVVO customer support.
Politika povrata: If you wish to return a product within 30 days of receipt because you have changed your mind, please consult the retailer's return policy. If you have received a defective or damaged product, please consult the retailer's help page on returns for defective or damaged items.
Dostupnost rezervnih dijelova: Spare parts for this product are available for a period of 10 years within the EU.
For technical assistance, spare parts, or any other inquiries, please contact EVVO customer support through their official webweb-mjesto ili kontaktne podatke navedene u dokumentaciji proizvoda.
