suptek PC Monitor Arm MD01A Instruction Manual

1. Uvod

This manual provides detailed instructions for the installation, operation, and maintenance of your suptek PC Monitor Arm MD01A. Please read this manual thoroughly before installation and keep it for future reference. This gas spring display arm is designed to support a single LCD monitor, enhancing your workspace ergonomics and efficiency.

Figure 1: suptek PC Monitor Arm MD01A Overview with dimensions and specifications.

2. Značajke proizvoda

• Kompatibilni monitori: This gas spring display arm supports a single LCD monitor. It has a load capacity of 2-9kg and is compatible with monitor sizes ranging from 13 to 32 inches.
• VESA standardi: Supports VESA mounting patterns of 75x75mm and 100x100mm.
• Podešavanje više kutova: The gas spring mechanism allows for smooth vertical and horizontal screen adjustments with minimal effort. The multi-axis design enables tilt up 90°, down 90°, swivel left/right 180°, and 360° rotation. This wide range of motion helps reduce eye strain and improve work efficiency.
• Ušteda prostora: Replaces traditional monitor stands, freeing up significant desk space.
• Uprava za kabele: Integrated cable clips help organize and protect cables, maintaining a tidy workspace.

Figure 2: Optimized workspace with the monitor arm.

3. Upute za postavljanje

3.1 Provjera prije instalacije

Before proceeding with installation, ensure your desk and monitor meet the following requirements:

• Veličina monitora: 13-32 inča
• Težina monitora: 2-9 kg
• VESA kompatibilnost: 75x75mm ili 100x100mm
• Desk Thickness (for Clamp Montaža): 10-70 mm
• Desk Hole Diameter (for Grommet Mount): Minimalno 10 mm

Figure 3: Pre-installation compatibility checks.

3.2 Odabir metode montaže

The monitor arm offers two installation methods:

1. Radni stol Clamp: For desks with an edge, the robust C-clamp securely fastens the monitor, providing maximum stability. Suitable for desks 10-70mm thick.
2. Montaža ušice: For desks with a pre-drilled hole, this method provides a flush and stable installation. Suitable for desks with a bolt-through hole (minimum hole diameter 10mm).

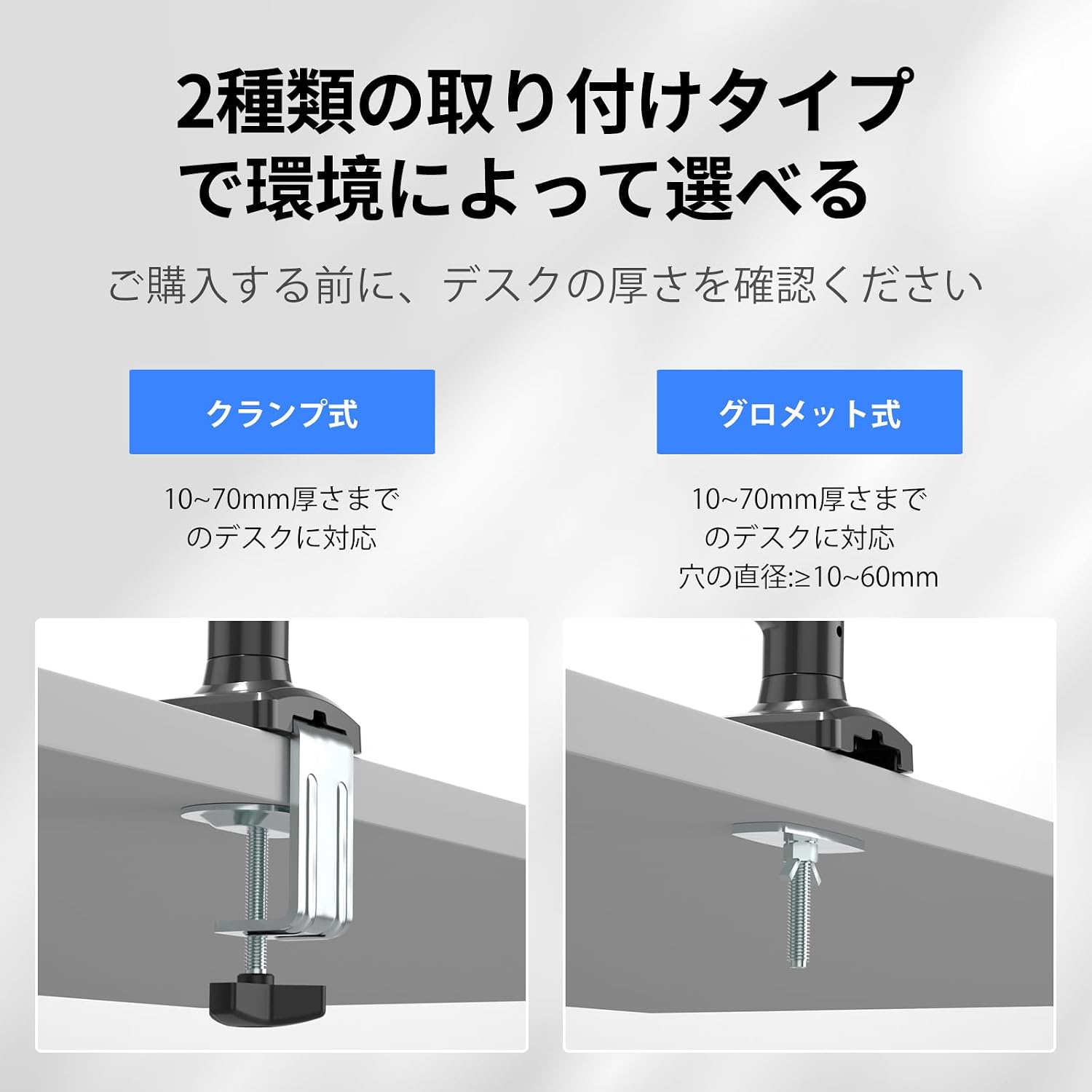

Slika 4: Clamp i mogućnosti montaže Grommet-a.

3.3 Koraci instalacije

Follow these steps to install your monitor arm:

1. Pričvrstite Clamp/Grommet to the Desk: Securely fasten the chosen mounting base (C-clamp or grommet) to your desk according to the selected method. Ensure it is tightened firmly.
2. Pričvrstite ruku: Slide the monitor arm onto the pole of the mounting base.
3. Priključite monitor: Align your VESA-compatible monitor with the VESA plate on the arm. Secure the monitor using the provided screws.

Figure 5: Monitor arm installation steps.

4. Upute za rad

4.1 Podešavanje više kutova

The monitor arm allows for flexible positioning to achieve optimal viewkutovi:

• Nagib: Adjust the screen vertically up to 90° and down to 90°.
• Zakretanje: Rotate the screen horizontally left or right up to 180°.
• Rotacija: Rotate the screen 360° for portrait or landscape orientation.

Figure 6: Multi-angle adjustment options.

4.2 Podešavanje napetosti plinske opruge

The gas spring tension must be adjusted to match your monitor's weight for smooth movement and stable positioning. Važno: To prevent damage to the monitor or mount, always keep the arm in a horizontal position during adjustment. The gas pressure cannot be adjusted without a monitor attached.

1. If the arm drops: Turn the internal bolt counter-clockwise (towards '+') to increase the gas spring tension until the arm stays in the desired position.
2. If the arm rises or cannot be pushed down: Turn the internal bolt clockwise (towards '-') to decrease the gas spring tension until the arm stays in the desired position.

Figure 7: Gas spring tension adjustment.

4.3 Height and Length Adjustment

The arm allows for flexible height adjustment from 140mm to 450mm and a maximum extension length of 534mm to suit your ergonomic needs.

Figure 8: Adjusting arm height and length.

5. Održavanje

To ensure the longevity and proper functioning of your suptek PC Monitor Arm, follow these maintenance guidelines:

• Redovito čišćenje: Obrišite ruku i bazu mekom krpomamp krpom za uklanjanje prašine i prljavštine. Izbjegavajte abrazivna sredstva za čišćenje ili otapala koja bi mogla oštetiti završnu obradu.
• Provjerite veze: Povremeno provjeravajte sve vijke i matice kako biste bili sigurni da su zategnuti. Po potrebi ih ponovno zategnite kako biste održali stabilnost.
• Podešavanje plinske opruge: If you change monitors or notice the arm is not holding its position correctly, re-adjust the gas spring tension as described in Section 4.2.
• Uprava za kabele: Ensure cables are routed properly through the cable clips and are not pinched or under excessive tension.

Figure 9: Cable management routing.

6. Rješavanje problema

7. Specifikacije

• Model: MD01A
• Marka: suptek
• Vrsta montaže: Nosač za stol (C-clamp ili ušica)
• Vrsta kretanja: Tilt, Swivel, Rotation, Height Adjustment
• Materijal: Legirani čelik
• Boja: Crna
• Kompatibilna veličina monitora: 13-32 inča
• Nosivost: 2-9 kg (4.4-19.8 lbs)
• VESA kompatibilnost: 75x75mm, 100x100mm
• Debljina stola (Clamp): 10-70 mm (0.39-2.76 inča)
• Desk Hole Diameter (Grommet): Minimalno 10 mm (0.39 inča)
• Raspon nagiba: +90° do -90°
• Raspon zakretanja: ±180°
• Rotacija: 360°
• Raspon podešavanja visine: 140-450 mm (5.5-17.7 inča)
• Maximum Arm Extension: 534 mm (21 inča)

8. Jamstvo i podrška

suptek provides a one-year warranty from the date of purchase for this product. In case of any malfunction or defect, please contact us through your Amazon account. To expedite the support process, please include your order number when contacting us.

Način kontakta:

1. Prijavite se na svoj Amazon račun.
2. Navigate to 'Account Service'.
3. Idite na 'Povijest narudžbi'.
4. Find your order for the suptek PC Monitor Arm MD01A.
5. Click on 'Seller' and then 'Ask a Question'.

We are committed to resolving your issues promptly and sincerely.
