JOYTUTUS Lockable Aluminum Roof Rack Cross Bars for Toyota RAV4 Adventure/TRD Off-Road (2019-2025)

Proizvod gotovview

These JOYTUTUS lockable aluminum roof rack cross bars are designed to provide additional cargo capacity for your Toyota RAV4 Adventure or TRD Off-Road model, years 2019-2025. They are engineered for durability, ease of installation, and reduced wind noise.

Jednostavna instalacija: Features a clamping design for straightforward assembly and removal. All necessary mounting hardware and instructions are included.
Izdržljiva konstrukcija: Made from high-quality, lightweight aluminum with sturdy adjustable bolts, ensuring long-lasting performance. Includes an anti-theft lock system for enhanced security. The product has undergone rigorous testing for crash resistance, wear, extreme temperatures, humidity, sunlight, and chemical exposure.
Precizno pristajanje: Specifically designed for Toyota RAV4 Adventure/TRD Off-Road models from 2019 to 2024. The base feet are equipped with rubber pads to ensure a secure, gap-free fit and prevent scratches to your vehicle's roof.
Reduced Wind Noise: Aerodinamički profesionalacfile is engineered to minimize wind resistance and noise at speeds up to 75 mph, without obstructing the normal operation of a skylight.
Podesivi kapacitet: The cross bars offer adjustable sizing to accommodate various cargo, providing robust support for items such as kayaks, surfboards, roof bags, cargo boxes, bike carriers, snowboards, canoes, and general luggage.

Važna napomena: Installation on vehicles with a moonroof may impact its opening and usage.

Kompatibilnost

These cross bars are compatible with Toyota RAV4 Adventure and TRD Off-Road models manufactured between 2019 and 2025.

Toyota RAV4 Adventure/TRD Off-Road 2019-2024 compatibility — Image: A white Toyota RAV4 Adventure/TRD Off-Road model, indicating compatibility for years 2019-2024. Text overlays confirm compatibility with Adventure and TRD Off-Road trims.

Ensure your vehicle has existing side rails for proper installation. These cross bars are designed to clamp onto factory-installed side rails.

Compatibility with side rails illustration — Image: An illustration showing a car roof with side rails, marked as "Compatible with Side Rails" with a green checkmark. Below it, another illustration shows a car roof without side rails, marked as "Not Compatible with Side Rails" with a red cross. This clarifies the requirement for existing side rails.

Sadržaj paketa

Prije početka instalacije provjerite jesu li sve komponente prisutne:

Front Cross Bar (1 unit)
Rear Cross Bar (1 unit)
Mounting Hardware (screws, wrench)
Keys for Anti-Theft Lock (2 units)
Priručnik s uputama

Package contents and dimensions of cross bars — Slika: Pogled odozgo view showing the front and rear cross bars with their dimensions (Front Bar: 42.52-44.88 inches length, 3.54 inches width, 3.35 inches height; Rear Bar: 40.55-42.91 inches length, 3.54 inches width, 3.35 inches height). Also visible are the included wrench, keys, and a small instruction sheet.

Upute za instalaciju

Follow these steps for proper installation of the JOYTUTUS roof rack cross bars. A visual guide is also provided in the video below.

Unlock and Remove Cover: Use the provided key to unlock the end cap of each cross bar and remove the cover.
Otpustite vijke za podešavanje: Inside the end cap, locate and loosen the screws that allow for length adjustment of the cross bar. Do not remove them completely.
Position Lower Clamp: Carefully place the cross bar onto your vehicle's side rails. Ensure the lower clamp mechanism is positioned correctly under the side rail.
Adjust Length and Tighten: Adjust the length of the cross bar to fit snugly between your vehicle's side rails. Once properly aligned, tighten the adjustment screws firmly to secure the bar's length.
Popravite bazu: Ensure the base of the cross bar is securely seated on the side rail. Tighten the screws that fix the base to the cross bar, ensuring a stable connection.
Replace Cover and Lock: Reattach the end cap cover and use the key to lock it into place. This secures the cross bar and activates the anti-theft feature.
Ponovite za drugi takt: Follow the same steps for the second cross bar. Ensure both bars are parallel and evenly spaced for optimal load distribution.

Video: An official JOYTUTUS installation guide demonstrating the step-by-step process of mounting the roof rack cross bars on a Toyota RAV4 Adventure/TRD Off-Road. The video shows unlocking the cover, loosening screws for adjustment, positioning the clamp, tightening screws, and finally locking the cover back in place.

Anti-theft locking system detail — Slika: Krupni plan view of the anti-theft locking system on the cross bar, showing the key inserted into the lock mechanism. This highlights the security feature of the product.

Anti-theft lock mechanism — Slika: Detaljna view of the anti-theft lock on the roof rack, emphasizing its role in securing the cross bars to the vehicle.

Upute za rad

Once installed, the cross bars are ready to support your cargo. Observe the following guidelines:

Nosivost: Do not exceed the maximum load capacity of 220 pounds (100 kg). Distribute weight evenly across both cross bars.
Osiguran teret: Always ensure all cargo is securely fastened to the cross bars using appropriate tie-downs, straps, or cargo accessories. Regularly check the security of your load during travel.
Podesiva duljina: The cross bars can be adjusted in length to accommodate different widths of cargo or to optimize placement. Refer to the installation section for adjustment steps.
Aerodinamički dizajn: Aerodinamički profesionalacfile helps reduce wind noise. However, large or irregularly shaped cargo may still generate additional noise.

Aerodynamic design for reduced wind noise — Image: A sleeping child in a car seat, with an illustration of the aerodynamic cross-section of the roof bar and a "no sound" icon, indicating the design helps reduce wind noise for a quieter ride.

Adjustable cross bar length — Image: A close-up of the cross bar mechanism showing the adjustable length feature, with arrows indicating the direction of adjustment. This allows for a customized fit.

Održavanje

Regular maintenance ensures the longevity and safe operation of your roof rack cross bars:

Periodični pregled: Regularly check all bolts, screws, and locking mechanisms to ensure they are tight and secure. Re-tighten as necessary.
Čišćenje: Clean the cross bars with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish or rubber components.
Gumene podloge: Inspect the rubber pads on the base feet for wear or damage. These pads protect your vehicle's finish and ensure a secure grip.
Skladištenje: If removing the cross bars for extended periods, store them in a dry place away from direct sunlight to prevent material degradation.

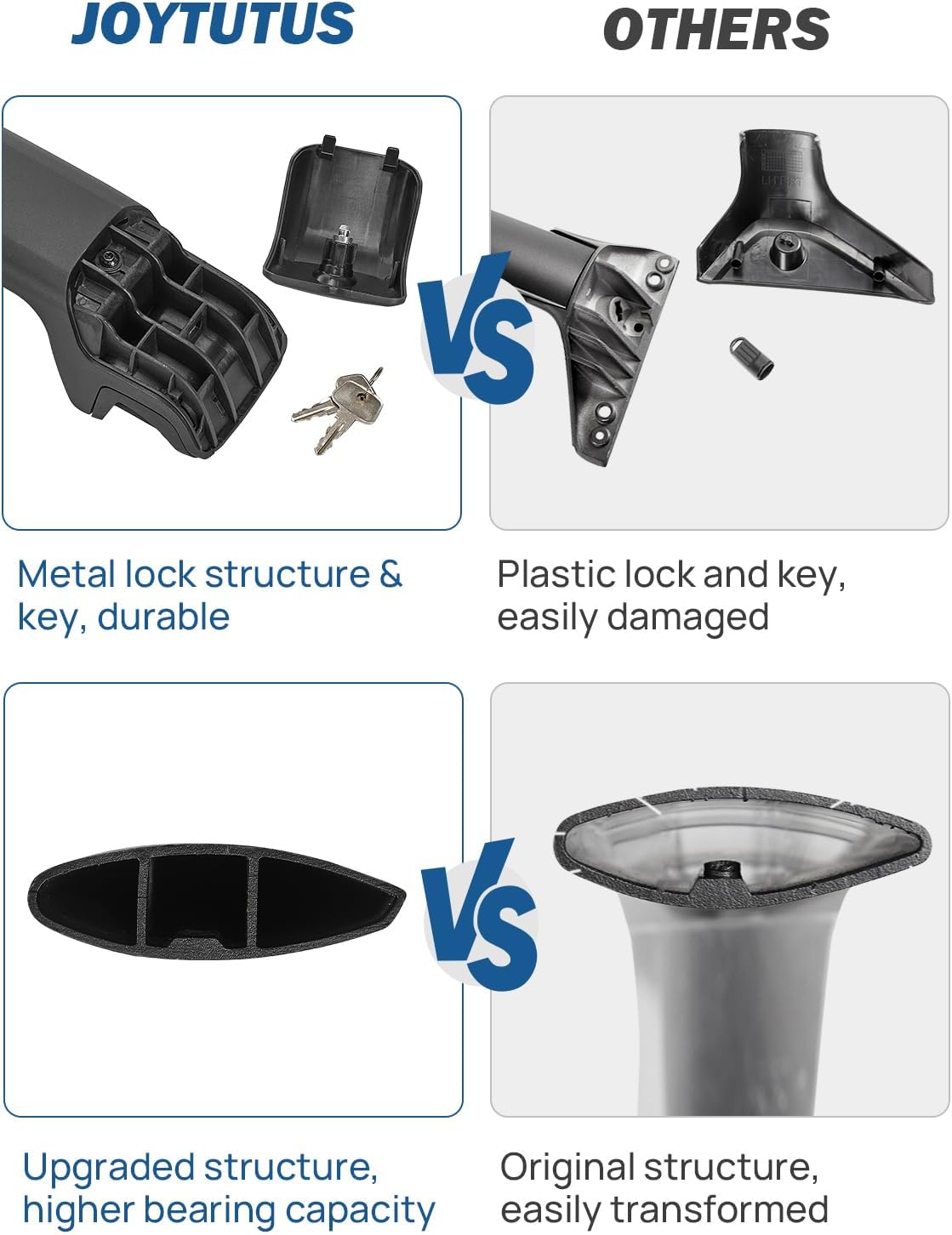

Comparison of JOYTUTUS metal lock vs. plastic lock — Image: A comparison graphic showing the JOYTUTUS cross bar with a durable metal lock structure and key versus a competitor's plastic lock that is easily damaged. It also compares the upgraded, higher bearing capacity structure of JOYTUTUS versus an original structure that is easily transformed.

Rubber pads for protection — Slika: Krupni plan view of the rubber pads on the underside of the cross bar's base, illustrating how they protect the contact surface between the cross bars and the car, preventing scratches and ensuring a non-slip fit.

Rješavanje problema

Problem	Mogući uzrok	Otopina
Pretjerana buka vjetra	Loose installation; large or improperly secured cargo; specific vehicle aerodynamics.	Ensure all components are tightly secured. Re-check the installation steps. Adjust cargo placement. Consider removing cross bars when not in use if noise persists and is bothersome.
Prečke su labave	Screws not tightened sufficiently; incorrect adjustment for vehicle width.	Re-tighten all adjustment and fixing screws. Ensure the cross bars are adjusted to the correct width for your vehicle's side rails.
Difficulty Locking/Unlocking	Key not fully inserted; debris in lock mechanism; damaged lock.	Ensure the key is fully inserted and turned correctly. Clean the lock mechanism if debris is visible. If the lock is damaged, contact customer support.
Ogrebotine na krovu vozila	Improper placement; missing or damaged rubber pads.	Ensure rubber pads are correctly positioned and intact. Always place the cross bars carefully to avoid dragging.

Tehnički podaci

Značajka	Detalj
Marka	JOJTUT
Broj modela	A1317-05339-BK
Boja	Crna
Materijal	Aluminij, metal, plastika
Nosivost	220 funti (otprilike 100 kg)
Dimenzije predmeta (D x Š x V)	42.52 x 3.54 x 3.35 inches (Front Bar adjustable up to 44.88 inches, Rear Bar adjustable up to 42.91 inches)
Težina artikla	9.35 funte (otprilike 4.25 kg)
Vrsta montaže	Power Grip (Clamping)
Automobilska vrsta	Vehicle Specific Fit (Toyota RAV4 Adventure/TRD Off-road 2019-2024)

Jamstvo i podrška

For warranty information, technical support, or assistance with parts, please refer to the contact details provided with your purchase or visit the official JOYTUTUS webstranicu. Sačuvajte račun kao dokaz o kupnji za bilo kakve reklamacije u jamstvenom roku.

For additional products and accessories, you may visit the JOYTUTUS Store on Amazon.

JOYTUTUS A1317-05339-BK
