1. Uvod
This manual provides instructions for the safe and efficient use of your SONGMICS Wall-Mounted Clothes Drying Rack, model ULLR807W01. Please read this manual thoroughly before installation and use, and retain it for future reference.
2. Značajke proizvoda
- Dizajn koji štedi prostor: Features 3 support arms that fold up to 180° for compact storage against the wall.
- Veliki kapacitet: Includes 21 sliding hooks that rotate 360° and extendable ends for additional hanging space.
- Strong, Stable, Durable: Constructed from corrosion-resistant aluminum, supporting up to 44 lb (20 kg) without sagging.
- Svestrana upotreba: Suitable for laundry rooms, bathrooms, balconies, closets, and bedrooms.
- Kompatibilnost sa zidom: Can be mounted on brick, concrete, solid wood, and marble walls. Drywall installation requires mounting on studs.
Figure 2.1: The SONGMICS Wall-Mounted Clothes Drying Rack in an extended position, holding various garments in a laundry room setting.
3. Sadržaj paketa
Prije početka instalacije provjerite jesu li sve komponente prisutne:
- SONGMICS Wall-Mounted Clothes Drying Rack (ULLR807W01)
- Pribor za montažu (vijci, tiple)
- Hole Indicator Card (for marking drill points)
- Priručnik s uputama
Slika 3.1: Gotovoview of the drying rack components and included installation hardware.
4. Sigurnosne informacije
- Ensure the rack is securely mounted to a suitable wall type. For drywall, always locate and mount into wall studs.
- Do not exceed the maximum weight limit of 44 lb (20 kg). Overloading can cause damage to the rack or wall.
- Keep children and pets away from the rack during operation to prevent injury.
- Regularly inspect the mounting hardware and rack for any signs of wear or damage. Discontinue use if damage is found.
5. Postavljanje i instalacija
Proper installation is crucial for the stability and safety of your drying rack. Follow these steps carefully.
Potrebni alati (nisu uključeni):
- Olovka
- bušilica
- Stud Finder (for drywall installation)
- Razina
Koraci instalacije:
- Odaberite lokaciju: Select a suitable wall in your laundry room, bathroom, balcony, or closet. Ensure there is enough space for the rack to extend fully.
- Pripremite zid:
- For drywall, use a stud finder to locate wall studs. The rack morati be mounted into studs for secure support.
- For brick, concrete, solid wood, or marble walls, ensure the wall is structurally sound to support the rack's weight.
- Označite točke bušenja: Use the provided hole indicator card to mark the precise drilling locations on the wall. Use a level to ensure the marks are perfectly horizontal.
- Izbušite rupe: Koristeći odgovarajuću svrdlu za vašu vrstu zida, izbušite pilot rupe na označenim mjestima.
- Install Anchors (if necessary): If mounting into masonry or if studs are not available for drywall (though stud mounting is highly recommended for drywall), insert wall anchors into the drilled holes.
- Montirajte stalak: Align the rack's mounting plate with the drilled holes and secure it to the wall using the provided screws. Tighten all screws firmly.
Figure 5.1: Visual guide for the installation process, emphasizing wall compatibility.
6. Upute za rad
The SONGMICS drying rack is designed for ease of use and versatility.
Extending the Rack:
Gently pull the three support arms outwards from the wall. Each arm can be adjusted independently up to 180 degrees to suit your drying needs. The ends of the main arms can also be extended by pulling them outwards to provide additional hanging space.
Figure 6.1: The drying rack extended, showing its adjustable arms and swivel hooks.
Using the Swivel Hooks:
The rack features 21 sliding hooks that can rotate 360 degrees. These hooks are ideal for hanging garments directly or using hangers. Adjust their position along the arms as needed.
Folding the Rack:
When not in use, push the extendable ends back into the main arms. Then, gently fold each support arm inwards until they lie flat against the wall. This compact design saves space.

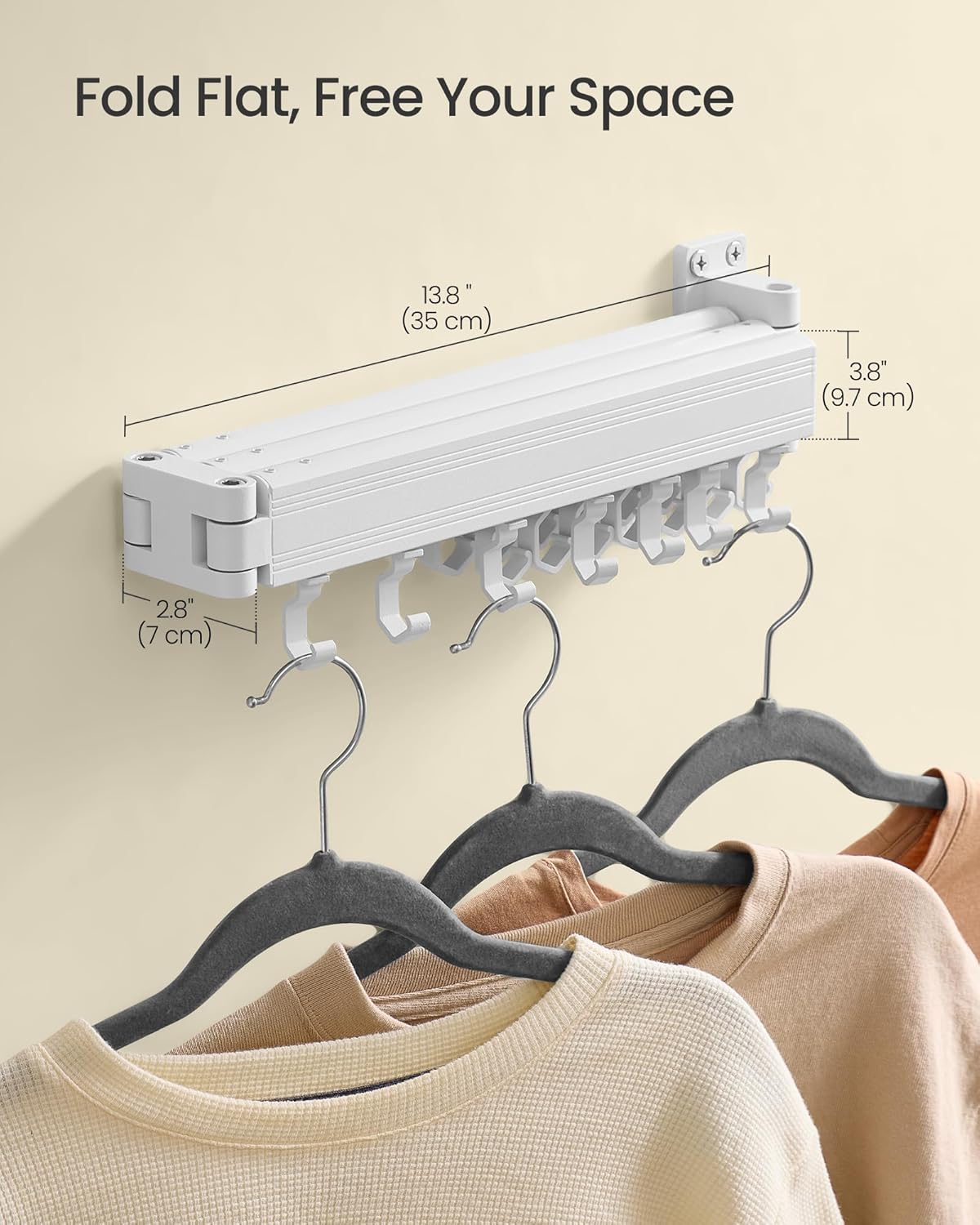

Figure 6.2: The drying rack in its folded, space-saving position.
Video demonstracija:
Video 6.1: Official product video demonstrating the functionality and space-saving features of the SONGMICS Clothes Drying Rack ULLR807W01.
7. Održavanje
- Čišćenje: Wipe the rack with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the aluminum finish.
- Inspekcija: Periodically check all screws and mounting points to ensure they remain tight and secure.
- Podmazivanje: If the folding mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to the hinges.
8. Rješavanje problema
| Problem | Mogući uzrok | Otopina |
|---|---|---|
| Rack feels unstable or loose on the wall. | Improper installation; screws are loose; not mounted into studs (for drywall). | Ensure all mounting screws are tightened. If on drywall, verify it is mounted into wall studs. Re-install if necessary, using appropriate anchors for your wall type. |
| Rack arms are difficult to fold or extend. | Hinges may be stiff or require lubrication. | Apply a small amount of silicone-based lubricant to the hinge mechanisms. Operate the arms several times to distribute the lubricant. |
| Rack sags when loaded with clothes. | Exceeding weight limit; improper installation. | Do not exceed the maximum weight capacity of 44 lb (20 kg). Distribute weight evenly. Re-check installation for secure mounting. |
9. Specifikacije
- Model: ULLR807W01
- Marka: PJESME
- Materijal: Aluminij
- Boja: Oblak bijeli
- Dimenzije proizvoda (sklopljen): 14.6"D x 3.8"H (approx. 37 cm D x 9.7 cm H)
- Dimenzije proizvoda (prošireno): 14.6"D x 43"Š x 3.8"V (približno 37 cmD x 109 cmŠ x 9.7 cmV)
- Ograničenje težine: 44 lb (20 kg)
- Težina artikla: 2.61 funti
- UPC: 194343311180
Figure 9.1: Key dimensions and specifications of the drying rack.
10. Jamstvo i podrška
For warranty information, product support, or to purchase replacement parts, please contact SONGMICS customer service through their official website or the retailer where the product was purchased. Please have your model number (ULLR807W01) and purchase date available when contacting support.
