GODIYMODULES MAX9814 Electret Microphone Ampkorisnički priručnik modula lifier

1. Uvod

This manual provides instructions for the GODIYMODULES MAX9814 Electret Microphone Amplifier Module. This compact board is designed to amplify electret microphone signals and features an Automatic Gain Control (AGC) function to maintain a consistent output level. It operates within a DC voltage range of 3.6V to 12V, making it suitable for various embedded audio projects.

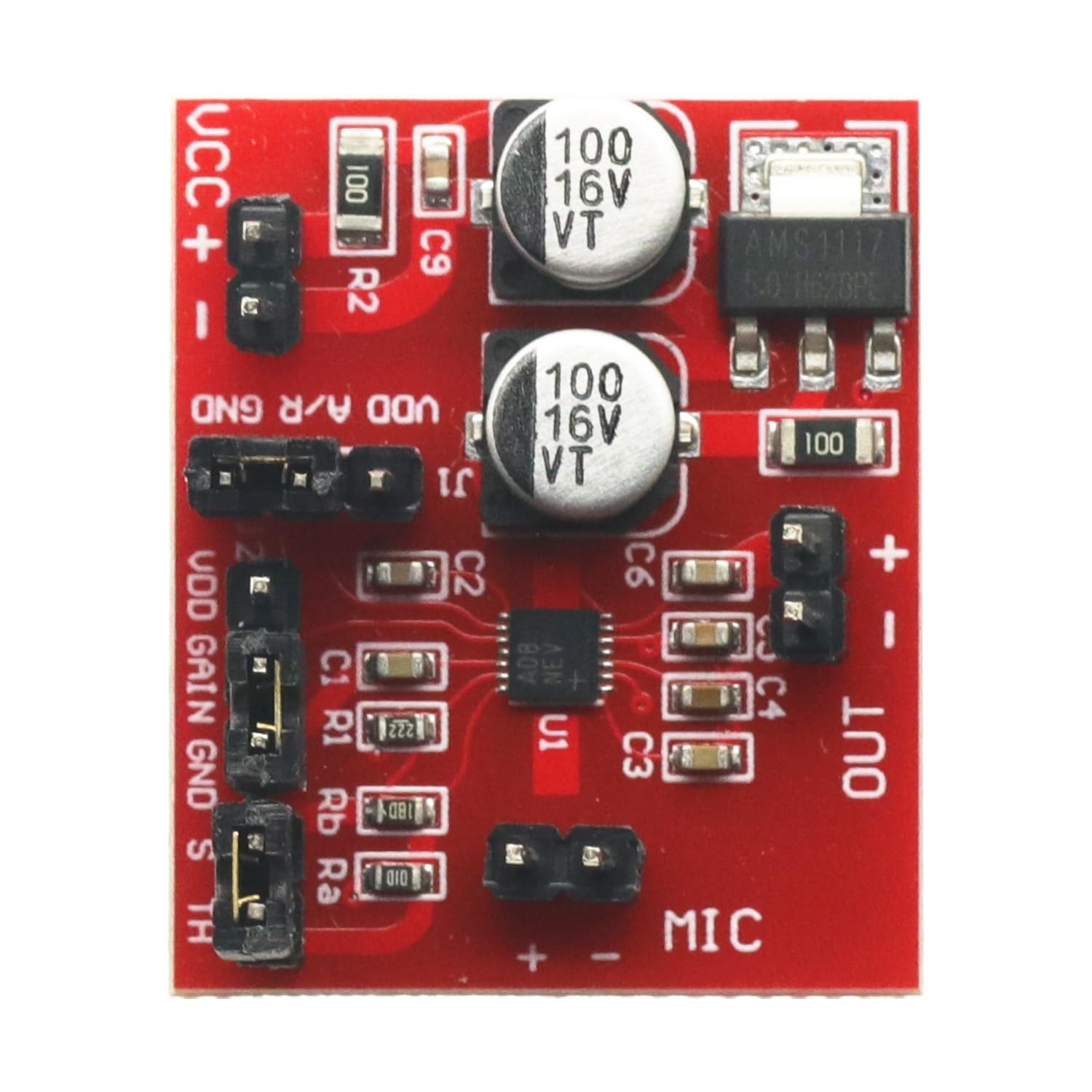

Slika 1: Vrh view of the MAX9814 Electret Microphone Amplifier Module. This image shows the overall layout of the components on the red PCB, including capacitors, resistors, and the MAX9814 IC.

2. Postavljanje i veze

Follow these steps to correctly set up and connect your MAX9814 ampmodul za podizanje.

1. Napajanje: Connect a DC power source between 3.6V and 12V to the VCC+ and VCC- terminals. Ensure correct polarity.
2. Ulaz za mikrofon: Connect your electret microphone to the MIC+ and MIC- terminals.
3. Audio izlaz: The amplified audio signal is available at the OUT+ and OUT- terminals. Connect these to your audio processing unit or speaker ampsredstvo za podsticanje.
4. AGC Function Control: The Automatic Gain Control (AGC) function can be enabled or disabled using the jumper cap.
   • If the jumper cap is nije povezan, the AGC function is omogućeno.
   • If the jumper cap is povezan, the AGC function is onemogućeno.

Slika 2: Detailed diagram illustrating the working voltage input (VCC), gain settings, release ratio, and the AGC switch on the MAX9814 module. This image helps identify the various connection points and control options.

3. Upute za rad

Once the module is connected, power it on within the specified voltage range. The MAX9814 automatically adjusts the microphone gain to optimize the audio signal level. If the AGC function is enabled (jumper cap removed), the module will dynamically compress the audio signal, preventing clipping and ensuring a more consistent output volume. If the AGC function is disabled (jumper cap connected), the gain will be fixed, and manual adjustment of input signal levels may be required for optimal performance.

The module also features adjustable gain and release ratio settings, which can be configured via specific pins (VDD GAIN GND S TH) as indicated in the detailed diagram (Figure 2). Refer to the MAX9814 datasheet for advanced configuration of these parameters.

4. Održavanje

The MAX9814 module is a low-maintenance electronic component. To ensure its longevity and optimal performance:

• Modul održavajte čistim i bez prašine i ostataka.
• Izbjegavajte izlaganje modula ekstremnim temperaturama ili vlazi.
• Ensure proper ventilation if integrated into an enclosed system.
• Handle with care to prevent physical damage to components or solder joints.

5. Rješavanje problema

• Nema audio izlaza:
  • Verify power supply connections and ensure voltage je unutar 3.6V-12V.
  • Check microphone connections for correct polarity and secure contact.
  • Ensure output connections are correctly routed to an audio input.
• Iskrivljen zvuk:
  • If AGC is disabled, the input signal might be too strong. Try enabling AGC or reducing microphone sensitivity.
  • Provjerite ima li labavih spojeva ili oštećenih komponenti.
• Low Audio Volume:
  • Ensure the microphone is functioning correctly.
  • Verify the AGC function is enabled if consistent volume is desired.
  • Check the gain settings if you are using advanced configurations.

6. Specifikacije

7. Informacije o jamstvu

Specific warranty information for the GODIYMODULES MAX9814 Electret Microphone Amplifier Module is not provided in the product details. Please refer to the retailer's return policy or contact the manufacturer directly for warranty details.

8. Korisnička podrška

For technical assistance or further inquiries regarding the MAX9814 module, please contact your point of purchase or visit the GODIYMODULES official website if available. No direct customer support contact information was provided with the product details.
