1. Uvod
Thank you for choosing the Mentech Avant 500 GPS Bike Computer. This device is designed to enhance your cycling experience with advanced navigation, training features, and comprehensive data tracking. Featuring a 2.8" LCD touchscreen, dual-band 5 satellite system support, and robust IPX7 waterproofing, the Avant 500 provides reliable performance in various conditions. This manual will guide you through the setup, operation, and maintenance of your new bike computer.

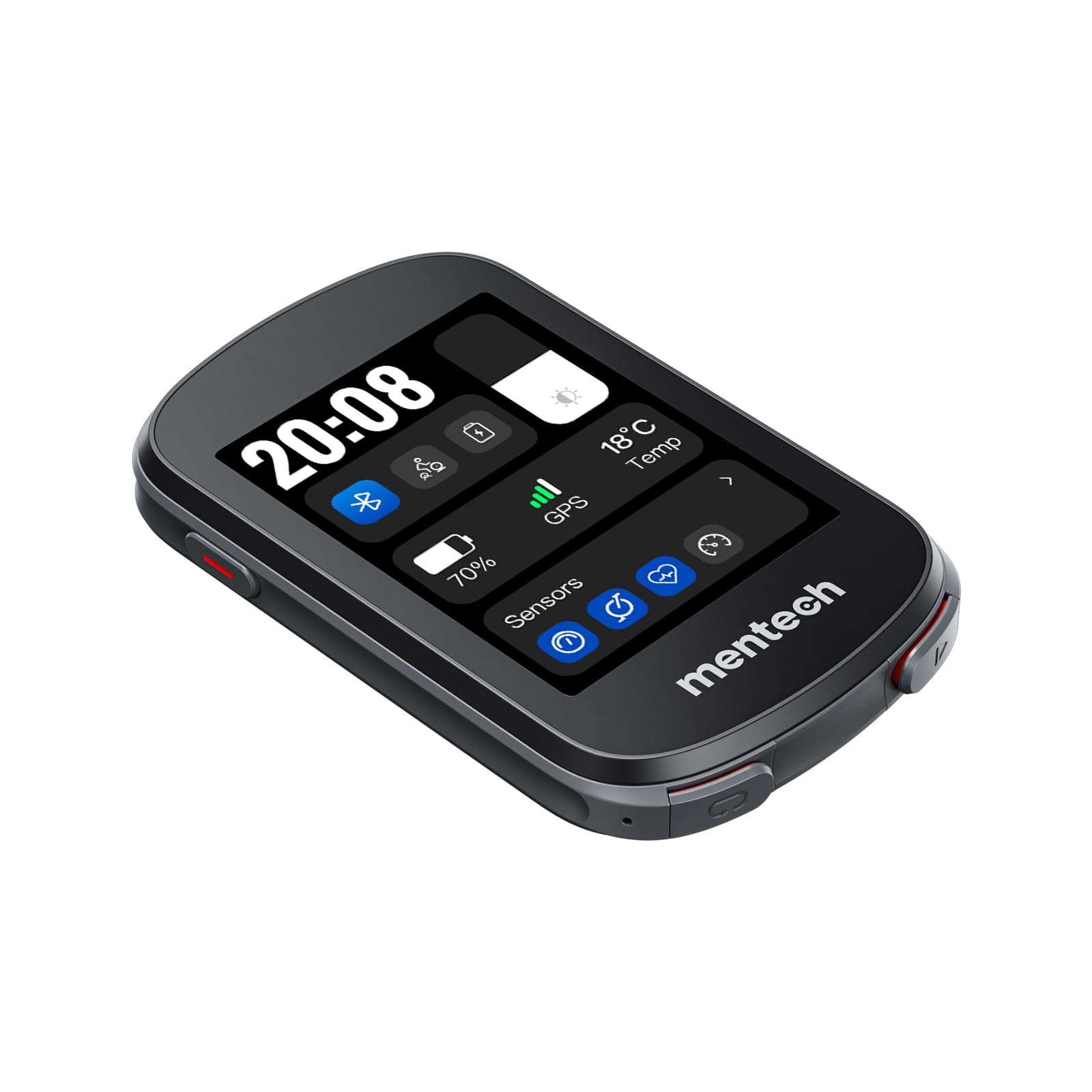

Figure 1: Mentech Avant 500 GPS Bike Computer
2. Sigurnosne informacije
- Sigurnost na cesti: Always prioritize road safety. Do not operate the device in a way that distracts you from cycling.
- Sigurnost baterije: The device contains a Lithium Ion battery. Do not expose to extreme temperatures, puncture, or disassemble. Dispose of batteries according to local regulations.
- Vodootpornost: The device is IPX7 waterproof, meaning it can withstand immersion in 1 meter of water for up to 30 minutes. It is not designed for underwater use or high-pressure water jets. Ensure the charging port cover is securely closed.
- Čišćenje: Koristite meku, damp cloth for cleaning. Avoid harsh chemicals or abrasive materials.
- Temperatura: Operate and store the device within recommended temperature ranges (typically -20°C to 50°C).
3. Sadržaj paketa
Provjerite jesu li svi artikli prisutni u vašem paketu:
- Mentech Avant 500 GPS Bike Computer
- USB kabel za punjenje/podatkovni kabel
- Bike Mount (Standard or Out-front)
- Mounting Rubber Bands
- Korisnički priručnik (ovaj dokument)
4. Postavljanje
4.1 Punjenje uređaja
Before first use, fully charge your Avant 500. Connect the USB charging cable to the device's charging port and to a USB power adapter (not included) or a computer's USB port. The charging indicator will show the charging status. A full charge typically takes 2-3 hours and provides up to 22 hours of operation.
4.2 Montaža uređaja
Attach the bike mount to your handlebar or stem using the provided rubber bands. Ensure the mount is secure and the device can be easily viewed while cycling. Align the Avant 500 with the mount and twist it clockwise until it locks into place.
4.3 Početno uključivanje i postavke
- Press and hold the power button (usually on the side or bottom) for 3 seconds to turn on the device.
- Follow the on-screen prompts to select your preferred language, time zone, and measurement units (metric/imperial).
- Unesite svoj osobni profile information (e.g., weight, height) for accurate calorie and power calculations.
4.4 Pairing Sensors (ANT+/Bluetooth 5.2)
The Avant 500 supports ANT+ and Bluetooth 5.2 sensors (e.g., heart rate monitors, speed/cadence sensors, power meters).
- Idi na postavke izbornik na vašem uređaju.
- Odaberite Senzori or Dodajte senzor.
- Ensure your sensor is awake and within range. The Avant 500 will scan for available sensors.
- Select your sensor from the list and confirm pairing.
4.5 Prikupljanje GPS podataka
For accurate tracking, ensure the device has a clear view of the sky. The Avant 500 uses dual-band 5 satellite systems for fast and precise positioning. It may take a few moments to acquire satellites on first use or after being moved a significant distance.
5. Upute za rad
5.1 Basic Navigation (Touchscreen & Buttons)
The Avant 500 features a responsive 2.8" LCD touchscreen for most interactions. Physical buttons provide quick access to essential functions:
- Gumb za napajanje: Press and hold to power on/off. Short press to access backlight/lock screen options.
- Gumb Start/Stop: Initiates or pauses ride recording.
- Lap Button: Marks a lap during a ride.
Swipe left/right on the touchscreen to switch between data screens. Tap to select options or confirm actions.
5.2 Snimanje vožnje
- Ensure GPS is acquired (GPS icon solid).
- Pritisnite tipku Start/Stop button to begin recording your ride.
- During the ride, you can view various data fields.
- Za pauzu pritisnite tipku Start/Stop button again. To resume, press it once more.
- To end and save the ride, press and hold the Start/Stop gumb, a zatim odaberite Save Ride.
5.3 Displaying Data Fields
You can customize the data fields displayed on each screen. Go to Settings > Data Fields to select metrics such as speed, distance, time, heart rate, cadence, power, and more.
5.4 Navigacijske značajke
The Avant 500 supports turn-by-turn navigation and route following. You can upload GPX/FIT files to the device via the companion app or by connecting to a computer. Select Navigacija from the main menu, choose your route, and follow the on-screen directions.
5.5 Connecting to a Smartphone App
Download the official Mentech companion app from your smartphone's app store. Pair your Avant 500 via Bluetooth to sync ride data, manage settings, and receive smart notifications.
6. Održavanje
6.1 Čišćenje
Obrišite uređaj mekom, damp cloth. For stubborn dirt, use a mild soap solution. Ensure the charging port cover is closed before cleaning. Do not use abrasive cleaners or solvents.
6.2 Njega baterija
Kako biste produžili vijek trajanja baterije, izbjegavajte često potpuno pražnjenje uređaja. Ako je skladištite dulje vrijeme, napunite bateriju do otprilike 50% i pohranite je na hladnom i suhom mjestu. Punite je svakih nekoliko mjeseci kako biste spriječili duboko pražnjenje.
6.3 Ažuriranja softvera
Periodically check for software updates via the Mentech companion app or by connecting the device to your computer. Updates often include performance improvements, bug fixes, and new features.
6.4 Skladištenje
Store the Avant 500 in a dry environment, away from direct sunlight and extreme temperatures, when not in use.
7. Rješavanje problema
| Problem | Moguće rješenje |
|---|---|
| Uređaj se neće uključiti. | Ensure the battery is charged. Connect to a power source and try again. If unresponsive, perform a soft reset (refer to online support for specific instructions). |
| GPS signal nije primljen. | Premjestite se na otvoreno područje s čistim view of the sky. Ensure the device is not obstructed. Wait a few minutes. |
| Senzori se ne uparuju. | Ensure sensors are awake and have fresh batteries. Check that they are not paired to another device. Restart the Avant 500 and try pairing again. |
| Zaslon osjetljiv na dodir ne reagira. | Clean the screen. If the issue persists, try restarting the device. |
| Trajanje baterije je kraće od očekivanog. | Ensure backlight brightness is not set too high. Turn off unnecessary features (e.g., Wi-Fi if available, excessive sensor connections). Extreme cold weather can also reduce battery performance. |
For further assistance, please visit the Mentech support webstranicu ili se obratite službi za korisnike.
8. Specifikacije
- Naziv modela: Avant 500
- Prikaz: 2.8" LCD zaslon osjetljiv na dodir
- GPS: Dual-Band 5 Satellite Systems (GPS, GLONASS, Galileo, BeiDou, QZSS)
- Povezivost: ANT+, Bluetooth 5.2
- Baterija: Lithium Ion, up to 22 hours runtime
- Ocjena vodootpornosti: IPX7
- Dimenzije: 9.4 x 5.84 x 1.91 cm (otprilike)
- Težina: 108.86 g (cca.)
- Materijal: Plastični
- Radna temperatura: -20°C do 50°C
9. Jamstvo i podrška
The Mentech Avant 500 GPS Bike Computer comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official Mentech webstranicu za detaljne uvjete jamstva.
For technical support, frequently asked questions, or to download the latest software updates, please visit the Mentech support portal:
You may also contact Mentech customer service directly for personalized assistance.
