CYCROWN EB5 Mini Electric Dirt Bike User Manual

1. Proizvod je gotovview

The CYCROWN EB5 Mini Electric Dirt Bike is designed for both urban commuting and off-road adventures. It features a powerful 750W brushless motor, a UL2849 certified 374.4WH battery, and 16-inch fat tires for versatile performance across various terrains. This manual provides essential information for safe operation, assembly, maintenance, and troubleshooting.

Figure 1: CYCROWN EB5 Mini Electric Dirt Bike - Black Standard model.

2. Sigurnosne informacije

Always prioritize safety when operating your electric bike. Read and understand all warnings and instructions before use.

Opće sigurnosne smjernice:

• Uvijek nosite kacigu i odgovarajuću zaštitnu opremu.
• Poštujte sve lokalne prometne zakone i propise.
• Nemojte voziti pod utjecajem alkohola ili droga.
• Perform pre-ride checks: ensure brakes are functional, tires are properly inflated, and all components are secure.
• Budite svjesni svoje okoline i vozite defenzivno.
• Izbjegavajte vožnju u ekstremnim vremenskim uvjetima ili na pretjerano skliskim površinama.
• Nemojte prekoračiti maksimalnu nosivost od 330 lbs.

Sigurnost baterije:

• Use only the charger provided by CYCROWN.
• Ne izlažite bateriju ekstremnim temperaturama ili izravnoj sunčevoj svjetlosti.
• Do not puncture, drop, or disassemble the battery.
• Keep the battery away from water and moisture (IPX4 waterproofing provides splash resistance, not submersion).
• Ako je baterija oštećena ili pokazuje znakove pregrijavanja, odmah prekinite korištenje i obratite se podršci.

3. Postavljanje i montaža

Your CYCROWN EB5 Mini Electric Dirt Bike requires some assembly before its first ride. Follow these steps carefully.

Video vodič za montažu:

Sastavljanje korak po korak:

1. Raspakiranje i pregled: Carefully remove all components from the packaging. Check for any damage during transit and ensure all parts listed in the packing list are present.
2. Ugradnja upravljača:
   • Loosen the bolts on the handlebar stem using the provided Allen wrench.
   • Carefully position the handlebar into the stem, ensuring the brake levers and display are correctly oriented.
   • Čvrsto zategnite vijke osovine.
3. Ugradnja prednjeg blatobrana i prednjih svjetala:
   • Attach the front fender to the fork using the provided screws and tools.
   • Mount the headlight to the designated bracket on the front fork and secure it. Ensure the headlight cable is properly connected.
4. Ugradnja prednjeg kotača:
   • Remove the protective cap and nuts from the front axle.
   • Align the front wheel with the fork dropouts, ensuring the brake rotor slides correctly into the brake caliper.
   • Insert the axle through the wheel hub and fork. Secure it with the washers and nuts, tightening them firmly with a wrench.
5. Ugradnja baterije:
   • Slide the battery into its designated compartment on the bike frame.
   • Ensure it clicks securely into place. The battery can be locked with the provided key for security.
   • Press the power button on the battery to activate it.

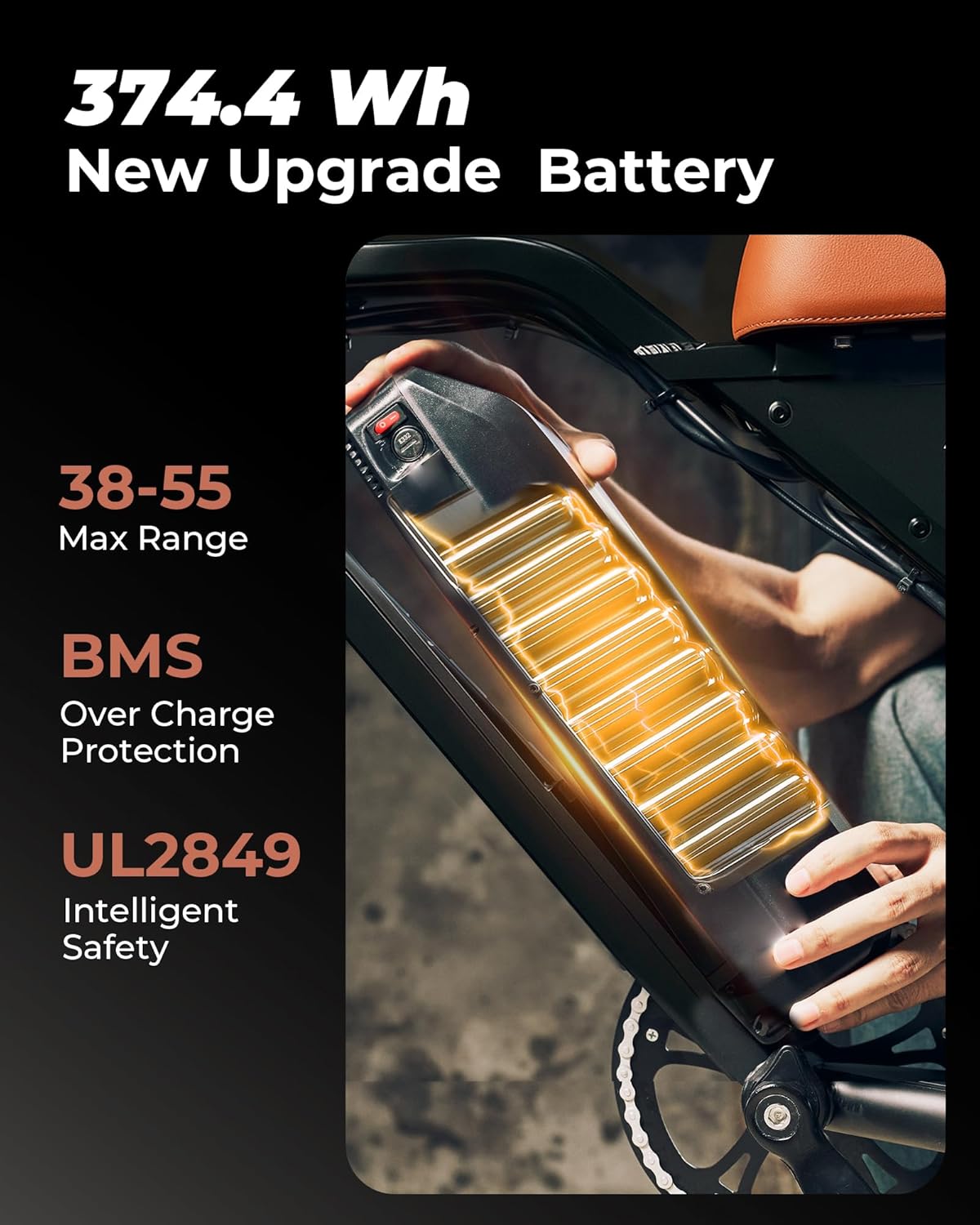

   Figure 2: The 374.4 Wh battery provides a maximum range of 38-55 miles and features BMS for overcharge protection and UL2849 certification for intelligent safety.
6. Ugradnja pedale:
   • Prepoznajte lijevu (L) i desnu (R) pedalu.
   • Screw the pedals into the crank arms. Note that the left pedal has a reverse thread (turn counter-clockwise to tighten).
   • Čvrsto zategnite ključem.
7. Accessory Bag Installation:
   • Attach the accessory bag to the handlebar or frame using its straps.

4. Upute za rad

Familiarize yourself with the controls and functions of your EB5 Mini for an optimal riding experience.

Uključivanje/isključivanje:

• To power on the bike, ensure the battery is installed and the battery's power switch is ON. Then, press and hold the power button on the handlebar display.
• To power off, press and hold the power button on the display until it shuts down.

Funkcije prikaza:

The handlebar display provides real-time information about your ride.

Figure 3: The display shows battery level, speed, and riding mode. It also features an integrated USB charging port.

• Razina baterije: Označava preostalu napunjenost baterije.
• Ubrzati: Prikazuje trenutnu brzinu vožnje.
• PAS razina: Shows the current Pedal Assist System level (0-5).
• Brojač kilometara/putovanje: Prati ukupnu udaljenost ili trenutnu udaljenost putovanja.
• Pokazivač prednjih svjetala: Pokazuje jesu li prednja svjetla upaljena.

Načini vožnje:

The EB5 Mini offers 5 smart riding modes:

• Pedal Assist System (PAS): Provides motor assistance as you pedal. Adjust assist levels (1-5) using the '+' and '-' buttons on the display. Higher levels provide more assistance.
• Električni način rada (gas): Use the throttle to engage the motor without pedaling.
• Tempomat: Activate cruise control for consistent speed on flat terrain. (Refer to display manual for specific activation steps).
• Način hodanja: Pruža pomoć pri hodanju bicikla pri maloj brzini.
• Način rada pedala: Vozite bicikl kao tradicionalni bicikl bez pomoći motora.

Svjetla i sirena:

• Prednje svjetlo: Press the light button on the handlebar control panel to turn the 2000-lumen super bright headlight on or off.
• Stražnje svjetlo: The integrated tail light activates with the headlight and functions as a brake light.
• Rog: Press the horn button to activate the horn.

Figure 4: The 2000-lumen headlight provides excellent visibility, cutting through darkness with an 80m beam.

USB punjenje:

The EB5 Mini features an integrated USB charging port on the display, allowing you to charge your mobile devices on the go.

5. Održavanje

Regular maintenance ensures the longevity and optimal performance of your CYCROWN EB5 Mini.

Njega baterije:

• Punjenje: Charge the battery fully before the first use. Use only the original charger. Do not overcharge.
• Skladištenje: If storing the bike for an extended period, charge the battery to 50-70% and store it in a cool, dry place. Recharge every 2-3 months to prevent deep discharge.
• Dugovječnost: The Smart BMS 2.0 system optimizes power output and enhances battery longevity.

Njega guma:

• Pritisak: Maintain recommended tire pressure for optimal performance and safety. Refer to the tire sidewall for specific pressure ranges.
• Puncture-Proof: The 16"x4.0" fat tires are designed with puncture-proof layers, but regular inspection for wear and tear is recommended.
• Gazište: Check tire tread regularly for wear. Replace tires when tread is significantly worn.

Figure 5: The 16"x4.0" fat tires are puncture-proof with 3X wear-resistant layers and drainage grooves, tested for 5000 miles.

Brake Maintenance:

• The bike is equipped with dual mechanical disc brakes. Regularly check brake pads for wear and replace them when necessary.
• Provjerite jesu li ručice kočnica čvrste i responzivne. Po potrebi podesite napetost sajle.

Generalno čišćenje:

• Redovito čistite bicikl s oglasomamp krpom i blagim sapunom. Izbjegavajte pranje pod visokim tlakom, posebno u blizini električnih komponenti.
• Povremeno podmažite lanac kako biste osigurali nesmetan rad i spriječili hrđanje.

6. Rješavanje problema

This section addresses common issues you might encounter with your EB5 Mini.

If you encounter issues not listed here or require further assistance, please contact CYCROWN customer support.

7. Specifikacije proizvoda

Figure 6: Key dimensions and weight of the CYCROWN EB5 Mini, including recommended rider height.

8. Jamstvo i podrška

CYCROWN is committed to providing high-quality products and excellent customer service.

Informacije o jamstvu:

• 30-dnevno jamstvo kvalitete: If you experience riding issues, reliable support is available, or you can return the product.
• 2-Year Product Care: All CYCROWN e-bikes are backed by a 2-year limited care warranty.

Korisnička podrška:

For any questions, technical assistance, or warranty claims, please contact us:

• Pozivni centar: 1(866) 719-9662 (Monday-Friday, 8 AM - 4 PM PST)
• Razgovor uživo/e-pošta: support@cycrown.com
• Expect 24-hour after-sale support.
