Uvod
The Beurer BG13 Diagnostic Bathroom Scale is designed to measure body weight, body fat percentage, postotak vode u tijelutage, muscle density, and Body Mass Index (BMI). This scale features a weighing area made from safety glass and brushed stainless steel electrodes for accurate measurements. It supports up to 10 user memories and offers 5 activity levels for personalized analysis.
Image: The Beurer BG13 Diagnostic Bathroom Scale, showcasing its sleek design in a bathroom environment.
Postavljanje
- Ugradnja baterije: The scale requires 1x 3V CR 2032 Lithium Metal battery, which is included. Open the battery compartment on the underside of the scale and insert the battery, ensuring correct polarity.
- Plasman: Place the scale on a firm, level surface. Avoid carpets or uneven flooring, as this can affect measurement accuracy.
- Početno uključivanje: The scale features automatic switch-on. Simply step onto the weighing surface to activate it.
- Odabir jedinice: To change the unit of measurement (kg/lb/st), locate the unit switch on the underside of the scale or use the 'SET' button if available on the display.
- Korisnički Profile Postavljanje: The scale supports 10 user memories. To set up a user profile, press the 'SET' button. Use the arrow buttons to input personal data such as age, height, gender, and activity level (1-5). Confirm each entry with the 'SET' button.

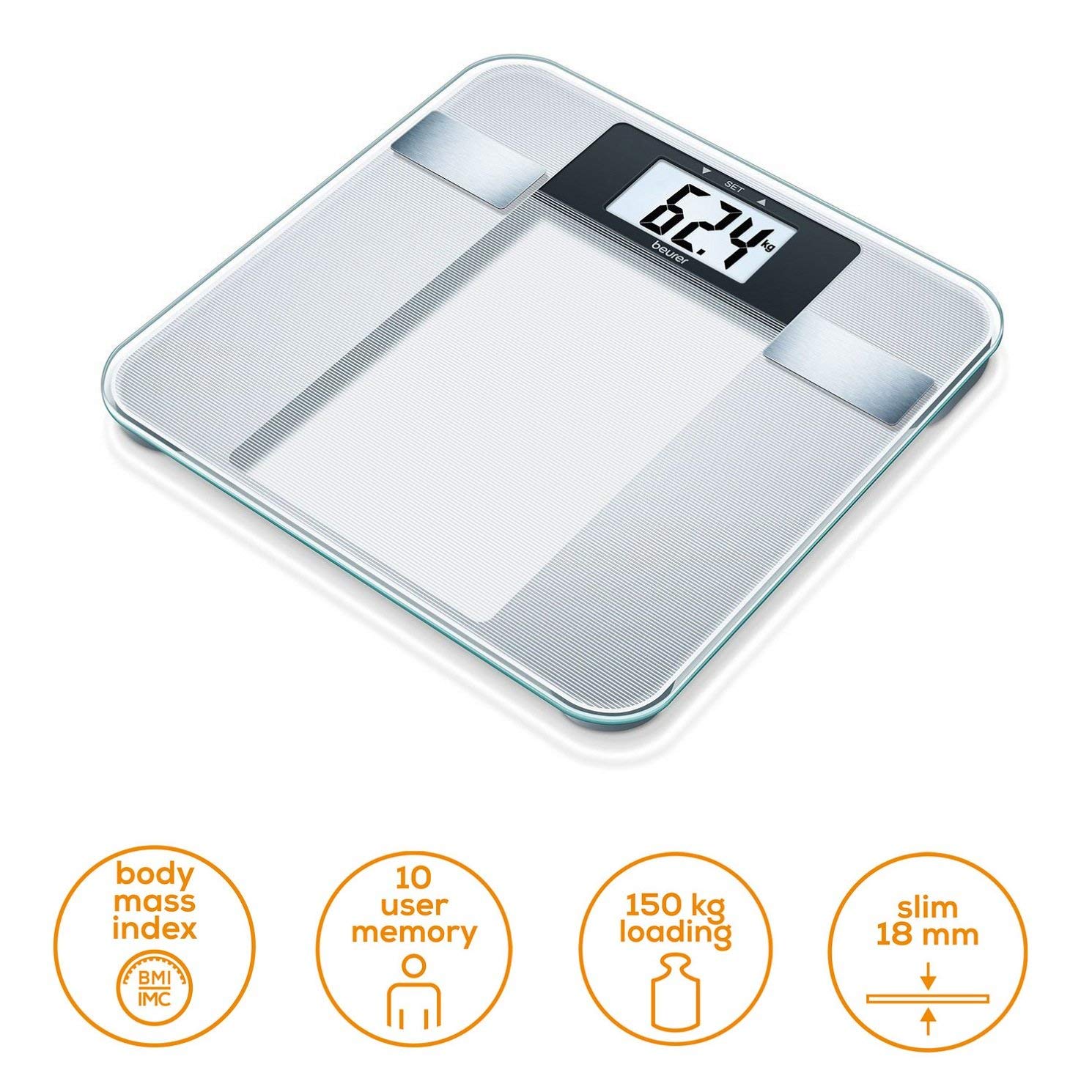

Image: Visual representation of key features including Body Mass Index calculation, 10 user memory slots, 150 kg weight capacity, and a slim 18 mm profile.
Upute za rad
- Vaganje: Step onto the scale barefoot. Ensure your feet are positioned on the brushed stainless steel electrodes for diagnostic measurements. The scale will automatically switch on and display your weight.
- Diagnostic Measurement: After displaying your weight, the scale will proceed to calculate body fat, body water, muscle percentage, and BMI. Remain still until all measurements are displayed.
- Prepoznavanje korisnika: Ako više korisnika profiles are set up, the scale will attempt to recognize the user based on their weight. If recognition is successful, the stored personal data will be used for diagnostic calculations.
- Čitanje zaslona: The scale features an extra-large LCD display with a digit size of 38 mm for clear readability.
Slika: Detaljna view of the scale's large digital display, showing a weight measurement in kilograms.
Održavanje
- Čišćenje: Očistite površinu kamenca adamp cloth and mild detergent. Do not use abrasive cleaning agents or immerse the scale in water.
- Zamjena baterije: When the battery indicator appears on the display, replace the 3V CR 2032 Lithium Metal battery.
- Skladištenje: Vagu čuvajte na suhom mjestu, dalje od ekstremnih temperatura i izravne sunčeve svjetlosti.
Rješavanje problema
- "Err" or Overload Indication: If the display shows "Err" or an overload symbol, it indicates that the maximum weight capacity of 150 kg has been exceeded. Step off the scale immediately to prevent damage.
- Netočna očitanja: Ensure the scale is placed on a hard, flat surface. Avoid moving the scale between measurements. Ensure feet are clean and dry and positioned correctly on the electrodes for diagnostic measurements.
- Nema zaslona: Provjerite je li baterija ispravno umetnuta i je li dovoljno napunjena. Po potrebi zamijenite bateriju.
Tehnički podaci
| Broj modela |
BG13 (Item no.: 760.30) |
| Kapacitet težine |
150 kg |
| Povećanje mjerenja |
100 g for body weight, 0.1% for body fat, body water, and muscle density |
| Korisničke memorije |
10 |
| Razine aktivnosti |
5 |
| Vrsta zaslona |
LCD, 38 mm digit size |
| Površina za vaganje |
Safety glass (6 mm) |
| elektrode |
Brušeni nehrđajući čelik |
| Izvor napajanja |
1x 3V CR 2032 Lithium Metal battery (included) |
| Dimenzije proizvoda |
Cca. 30 x 30 x 1.8 cm |
| Težina proizvoda |
cca. 1.55 kg |
| Proizvođač |
Beurer GMBH, Soflinger, Ulm, Germany |
Image: The Beurer BG13 scale illustrating its compact dimensions of 30 cm length, 30 cm width, and 1.8 cm height.
Jamstvo
The Beurer BG13 Diagnostic Bathroom Scale comes with a Jamstvo 5 godine from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and material faults under normal use conditions.
Image: Product information sheet for the Beurer BG13, confirming a 5-year warranty period.
podrška
For technical assistance, warranty claims, or further inquiries, please contact Beurer customer support:
- Proizvođač: Beurer GMBH, Soflinger, Ulm, Germany
- Email: info@beurer.com
- Telefon: +49 (731) 3989-0
- Indian Importer Support: Beurer India Pvt Ltd, 523-524, JMD Megapolis, Sector - 48, Gurugram, Haryana-122018
- Indian Support Email: support@beurerindia.com
- Indian Support Phone: 01244477111
