1. Uvod
Thank you for choosing the Severin KV 8023 S2 Superautomatic Coffee Machine. This appliance is designed to provide a premium coffee experience with ease, offering a variety of coffee specialties at the touch of a button. Featuring a high-quality ceramic grinder and intuitive controls, this machine ensures fresh, aromatic coffee every time. Please read this manual carefully before first use to ensure safe operation and optimal performance.
Slika 1.1: Prednja strana view of the Severin KV 8023 S2 Superautomatic Coffee Machine. This image shows the sleek black design of the appliance, highlighting its compact form factor suitable for any kitchen countertop.
2. Važne sigurnosne upute
Always observe the following safety precautions when using electrical appliances to prevent electric shock, fire, injury, or damage.
- Pažljivo pročitajte sve upute prije uporabe.
- Nemojte uranjati uređaj, kabel ili utikač u vodu ili druge tekućine.
- Držite uređaj izvan dohvata djece.
- Isključite utikač iz utičnice kada ga ne koristite i prije čišćenja.
- Nemojte koristiti uređaj s oštećenim kabelom ili utikačem, ili nakon što uređaj ne radi ispravno ili je na bilo koji način oštećen.
- Koristite samo pribor koji preporučuje proizvođač.
- Ne dodirujte vruće površine. Koristite ručke ili gumbe.
- Osigurajte voltagOznaka e navedena na uređaju odgovara naponu vaše električne mreže.tage.
- Nikada ne otvarajte kućište uređaja. Popravke smije obavljati samo ovlašteno servisno osoblje.
3. Postavljanje i prva upotreba
3.1 Raspakiranje
Carefully remove all packaging materials. Check that all parts are present and undamaged. Keep packaging for future transport or disposal.
3.2 Početno čišćenje
- Obrišite vanjski dio stroja oglasomamp tkanina.
- Remove the water tank, coffee bean container lid, and drip tray. Wash them with warm soapy water, rinse thoroughly, and dry.
- Ponovno sastavite sve dijelove.
3.3 Punjenje spremnika za vodu
Open the lid of the water tank and fill it with fresh, cold tap water up to the MAX mark. Close the lid securely.
3.4 Punjenje spremnika za kavu u zrnu
Open the lid of the coffee bean container and fill it with whole coffee beans. Do not use ground coffee in this container. Close the lid to maintain freshness.
3.5 Uključivanje i punjenje
- Uključite kabel za napajanje u odgovarajuću zidnu utičnicu.
- Press the power button. The machine will perform an initial rinse cycle. Place a cup under the coffee spout to collect the water.
- The display will guide you through any necessary priming steps, such as filling the water circuit.

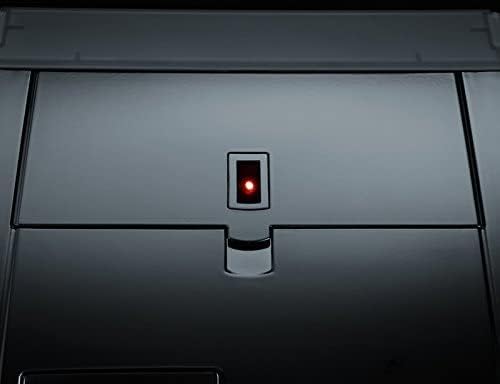

Image 3.1: Close-up of the power button with its red indicator light, located on the top surface of the coffee machine. This light indicates the machine's power status.
3.6 Adjusting Water Hardness
The machine allows for adjustable water hardness settings to optimize the water filter's performance (a filter is included). Refer to the display menu for instructions on how to measure and set your local water hardness level.
4. Upute za rad
The Severin KV 8023 S2 features an intuitive E-select button and a high-contrast graphic display for easy navigation.
Image 4.1: The control panel of the Severin KV 8023 S2, showing the multi-language graphic display and the E-select rotary knob for intuitive menu navigation. Several selection buttons are also visible below the display.
4.1 Making Coffee Specialties (One-Touch)
For Cappuccino, Latte Macchiato, or Latte:
- Ensure the milk system is connected and the milk container is filled.
- Place your cup under the coffee-milk spout.
- Select your desired drink from the display using the E-select button.
- Press the corresponding button to start brewing. The machine will automatically prepare your drink without requiring you to move the cup.
4.2 Podešavanje jačine i volumena kave
You can customize your coffee strength (3 levels + 1 personal fit) and volume via the display menu. Use the E-select button to navigate to these settings and adjust according to your preference.
4.3 Podešavanje stupnja mljevenja
The ceramic grinder offers 5 adjustable grind levels. To change the grind level, turn the knob inside the bean container. Adjust only when the grinder is operating to prevent damage.
4.4 Adjusting Coffee-Milk Spout Height
The coffee-milk spout can be adjusted in height from 80 mm to 135 mm to accommodate various cup sizes. Gently slide the spout up or down to the desired position.
Image 4.2: Close-up of the adjustable coffee-milk spout on the Severin KV 8023 S2, featuring the 'SEVERIN S2+' branding. This spout can be moved vertically to fit different cup sizes.
4.5 Mogućnosti programiranja
The machine offers various programming options, including individually adjustable on/off times and 5 temperature levels for your beverages. Access these settings through the main menu on the graphic display.
5. Održavanje i čišćenje
Redovito čišćenje i održavanje ključni su za dugotrajnost i optimalne performanse vašeg aparata za kavu.
5.1 Automatic Cleaning Programs
The Severin KV 8023 S2 features automatic cleaning, rinsing, and descaling programs. The display will prompt you when these programs are due. Follow the on-screen instructions carefully.
5.2 Čišćenje jedinice za kuhanje
The patented brewing unit is removable for easy cleaning. Follow these steps:
- Isključite i iskopčajte stroj.
- Otvorite servisna vrata i uklonite jedinicu za kuhanje pritiskom na gumbe za otpuštanje.
- Rinse the brewing unit thoroughly under running lukewarm water. Do not use detergents.
- Ostavite da se potpuno osuši na zraku prije ponovnog umetanja.
5.3 Cleaning the Coffee-Milk Spout
The coffee-milk spout is dishwasher-safe and removable. Regularly detach it and clean it to prevent milk residue buildup. The machine also has a 2-stage milk system rinse program that should be run after each milk-based beverage.
5.4 Pražnjenje posude za kapanje i posude za talog kave
The machine will indicate when the drip tray and coffee grounds container need to be emptied. Remove, empty, rinse with water, and dry these components before returning them to the machine.
6. Rješavanje problema
Ovaj odjeljak obrađuje uobičajene probleme s kojima se možete susresti. Za probleme koji nisu ovdje navedeni, obratite se korisničkoj podršci.
| Problem | Mogući uzrok | Otopina |
|---|---|---|
| Kava se ne toči. | Water tank empty, beans empty, brewing unit clogged. | Fill water tank/beans. Clean brewing unit. |
| Kava je preslaba/jaka. | Incorrect grind level or coffee strength setting. | Adjust grind level (finer for stronger, coarser for weaker). Adjust coffee strength setting in menu. |
| Mlijeko se ne pjeni kako treba. | Milk system clogged, milk too warm, incorrect milk type. | Clean milk system/spout. Use cold, fresh milk. Ensure milk type is suitable for frothing. |
| Stroj prikazuje poruku o pogrešci. | Specifičan interni problem. | Refer to the display for the specific error code and consult the full manual or contact support. Try restarting the machine. |
7. Tehničke specifikacije
- Marka: Severin
- Broj modela: KV 8023
- Boja: Crna
- Dimenzije proizvoda: 33.2 x 24.5 x 35.8 cm
- Težina artikla: 9.51 kg
- Kapacitet spremnika za vodu: 1.5 litara
- Vlast: 1500 vata
- Voltage: 230 V
- Materijal: Nehrđajući čelik
- Posebne karakteristike: Integrated filter, Ceramic grinder, One-Touch function
- Vrsta aparata za kavu: Aparat za espresso
8. Jamstvo i podrška
8.1 Informacije o jamstvu
Your Severin KV 8023 S2 Superautomatic Coffee Machine comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for detailed terms and conditions, including the warranty period and coverage. Keep your proof of purchase for any warranty claims.
8.2 Korisnička podrška
Should you require assistance with your appliance, encounter issues not covered in this manual, or need spare parts, please contact Severin customer support. Contact details can typically be found on the official Severin webweb-mjestu ili u dokumentaciji koja je priložena uz vaš proizvod.
For online support and further information, visit the Trgovina robne marke Severin.
