Timbertech MNFS01 Wall Chaser with Laser - 1700W Instruction Manual

1. Uvod

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Timbertech MNFS01 Wall Chaser. Please read these instructions carefully before using the tool and keep them for future reference. The Timbertech MNFS01 is a high-quality wall chaser designed for precise groove cutting in various masonry materials. It features a powerful 1700W motor, an integrated laser guide for accuracy, and adjustable settings for cutting depth and width.

2. Sigurnosne upute

Uvijek slijedite osnovne sigurnosne mjere kako biste smanjili rizik od požara, strujnog udara i tjelesnih ozljeda. Nepoštivanje ovih uputa može dovesti do ozbiljnih ozljeda ili materijalne štete.

• Pročitajte sve upute: Familiarize yourself with the tool's controls and proper operation.
• Nosite osobnu zaštitnu opremu (OZO): Always wear safety glasses, hearing protection, a dust mask, and heavy-duty gloves when operating the wall chaser.
• Osigurajte radni komad: Ensure the material being cut is stable and securely clampradi sprječavanja pomicanja tijekom rada.
• Održavajte čisto radno područje: Nered u radnom prostoru dovodi do nezgoda. Radno područje mora biti dobro osvijetljeno i bez otpada.
• Avoid Hazardous Environments: Nemojte koristiti električne alate u damp or wet locations, or expose them to rain. Keep the work area well-ventilated.
• Spriječite slučajno pokretanje: Prije uključivanja alata provjerite je li prekidač u položaju ISKLJUČENO.
• Koristite pravi alat: Do not force the tool; use the correct tool for your application.
• Odspojite napajanje: Always disconnect the tool from the power source before making any adjustments, changing accessories, or storing the tool.
• Provjerite ima li oštećenih dijelova: Before use, inspect the tool for any damaged parts. Ensure all guards and safety features are in working order.
• Usisavanje prašine: Always connect the dust extraction adapter to a suitable vacuum cleaner to minimize dust exposure.

3. Sadržaj paketa

Your Timbertech MNFS01 Wall Chaser package includes the following items:

• 1 x Wall Chaser with Laser
• 1 x torbica za nošenje
• 2 x Diamond Cutting Discs (Ø 150mm)
• 1 x Groove Chisel
• 1 x Spanner Wrench
• 1 x Dust Extractor Adapter
• 1 x priručnik s uputama

Figure 1: The Timbertech MNFS01 Wall Chaser shown with its main components and included accessories, such as diamond discs, wrenches, and the dust extraction adapter, all neatly arranged.

4. Tehničke specifikacije

5. Postavljanje i sastavljanje

5.1 Ugradnja dijamantnih diskova

To install the diamond cutting discs:

1. Provjerite je li alat isključen iz izvora napajanja.
2. Otvorite zaštitni poklopac.
3. Place the first diamond disc onto the spindle, ensuring the rotation arrow on the disc matches the arrow on the tool.
4. Add the appropriate spacers to achieve the desired cutting width (14mm, 19mm, or 26mm).
5. Place the second diamond disc, again matching the rotation arrow.
6. Secure the discs and spacers with the flange and nut, tightening with the provided spanner wrench.
7. Čvrsto zatvorite zaštitni poklopac.

Slika 2: Krupni plan view of the diamond cutting discs and the various spacers used to adjust the groove width, illustrating the different size options available.

5.2 Attaching Dust Extraction Adapter

For a cleaner work environment and to reduce dust exposure, attach the dust extraction adapter to a suitable vacuum cleaner.

1. Locate the dust extraction port on the wall chaser.
2. Securely attach the provided dust extractor adapter to this port.
3. Connect a vacuum cleaner hose to the adapter.

Figure 3: The dust extraction adapter is shown connected to the wall chaser, ready to be attached to a vacuum cleaner for effective dust management during operation.

6. Upute za rad

6.1 Podešavanje dubine i širine rezanja

The wall chaser allows for precise adjustment of both cutting depth and width:

• Podešavanje dubine: Use the depth adjustment screw to set the desired cutting depth between 10mm and 40mm. Refer to the markings on the tool for accurate setting.
• Podešavanje širine: Adjust the groove width by adding or removing spacers between the diamond discs during installation. Available widths are 14mm, 19mm, and 26mm.

Slika 4: Detaljan view of the wall chaser highlighting the depth adjustment mechanism, showing the screw and scale for precise control over cutting depth.

6.2 Korištenje laserskog vodiča

The integrated laser guide assists in achieving straight and accurate cuts:

1. Locate the laser ON/OFF button on the tool.
2. Press the button to activate the laser line, which will project onto your workpiece.
3. Align the laser line with your marked cutting path for precise guidance.

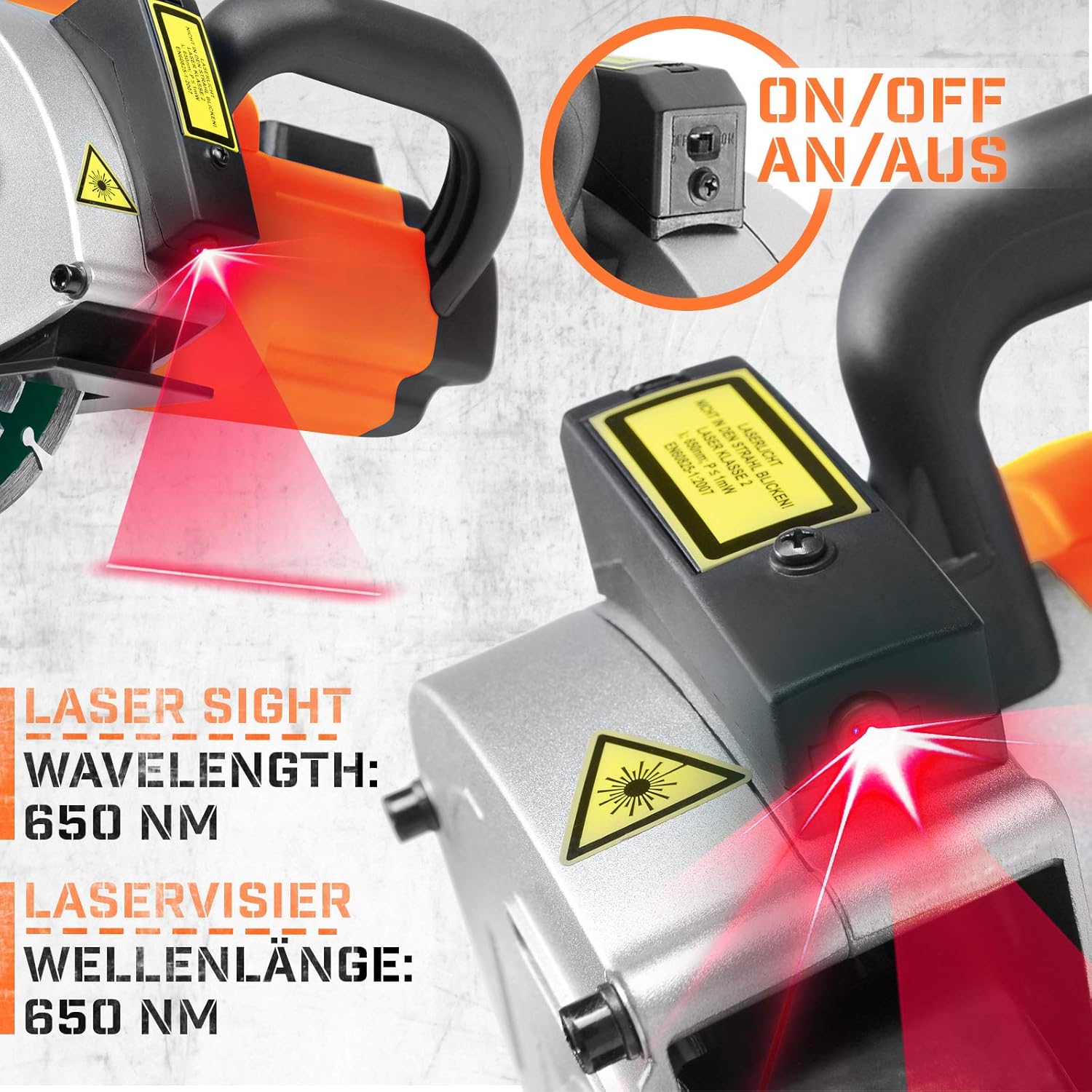

Figure 5: A close-up image of the wall chaser's laser sight, showing the laser beam projecting a guide line for accurate cutting.

6.3 Opći savjeti za rukovanje

• Funkcija mekog pokretanja: The tool is equipped with a soft start function to prevent sudden jolts upon startup, ensuring smoother operation and extending motor life.
• Zaštita od preopterećenja: An integrated overload protection system will automatically shut down the tool if it detects excessive load, preventing damage to the motor. Allow the tool to cool down before resuming operation.
• Smjer rada: Always pull the wall chaser towards you or push it downwards along the marked line for optimal control and safety.

7. Održavanje i njega

Regular maintenance ensures the longevity and optimal performance of your wall chaser.

• Čišćenje: After each use, clean the tool thoroughly. Remove any dust and debris from the ventilation slots and the protective cover. Use a soft brush or compressed air.
• Inspekcija oštrice: Regularly inspect the diamond cutting discs for wear or damage. Replace worn or chipped discs immediately to maintain cutting efficiency and safety.
• Pregled kabela: Check the power cable for any signs of damage, cuts, or fraying. Do not use the tool if the cable is damaged.
• Skladištenje: Store the wall chaser in its carrying case in a dry, secure place, out of reach of children.

8. Rješavanje uobičajenih problema

If you encounter problems with your wall chaser, refer to the following troubleshooting guide:

• Alat se ne pokreće:
  • Provjerite je li kabel za napajanje sigurno uključen u ispravnu utičnicu.
  • Verify that the ON/OFF switch is fully engaged.
  • Provjerite jesu li isključeni prekidači ili pregorjeli osigurači.
• Smanjena učinkovitost rezanja:
  • Inspect diamond discs for wear or damage. Replace if necessary.
  • Ensure the cutting depth and width settings are appropriate for the material.
• Prekomjerna prašina:
  • Ensure the dust extraction adapter is properly connected to a functional vacuum cleaner.
  • Check if the vacuum cleaner bag is full or the filter is clogged.
• Tool Shuts Off During Operation:
  • This may indicate the overload protection has activated. Reduce pressure on the tool and allow it to cool down.
  • Check for blockages around the cutting discs.

9. Jamstvo i korisnička podrška

For warranty information, service, or technical support, please refer to the contact details provided in your product packaging or visit the official Timbertech webstranicu. Sačuvajte račun kao dokaz o kupnji za bilo kakve reklamacije u jamstvenom roku.
