Whirlpool WHES30E 30,000 Grain Water Softener Instruction Manual

1. Proizvod je gotovview

The Whirlpool WHES30E 30,000 grain water softener is designed for households of 1-4+ people. It effectively reduces hard water symptoms such as mineral stains, buildup on plumbing and fixtures, and spotting on dishes. This system also helps water-using appliances operate more efficiently, potentially extending their lifespan and saving energy. Soft water contributes to healthier skin and hair, and improves the effectiveness of detergents.

Ključne karakteristike:

• Ideal for households of 1-4+ people.
• Removes up to 8 ppm of clear water (ferrous) iron.
• NSF certified for reducing hard water symptoms.
• Features demand-initiated regeneration for significant salt and water savings.
• Includes simple-to-program electronics and a low salt indicator light.
• Compatible with both city water and well water.

Slika 1: Prednja strana view of the Whirlpool WHES30E water softener.

Figure 2: Key features of the Whirlpool WHES30 water softener.

Figure 3: Whirlpool water softeners are NSF certified for public health standards.

Figure 4: Exclusive 6th Sense® Technology conserves water and salt by regenerating only when necessary.

2. Postavljanje i instalacija

The Whirlpool WHES30E water softener comes with an installation kit and bypass valve. Proper installation is crucial for optimal performance. Ensure all connections are secure and follow local plumbing codes.

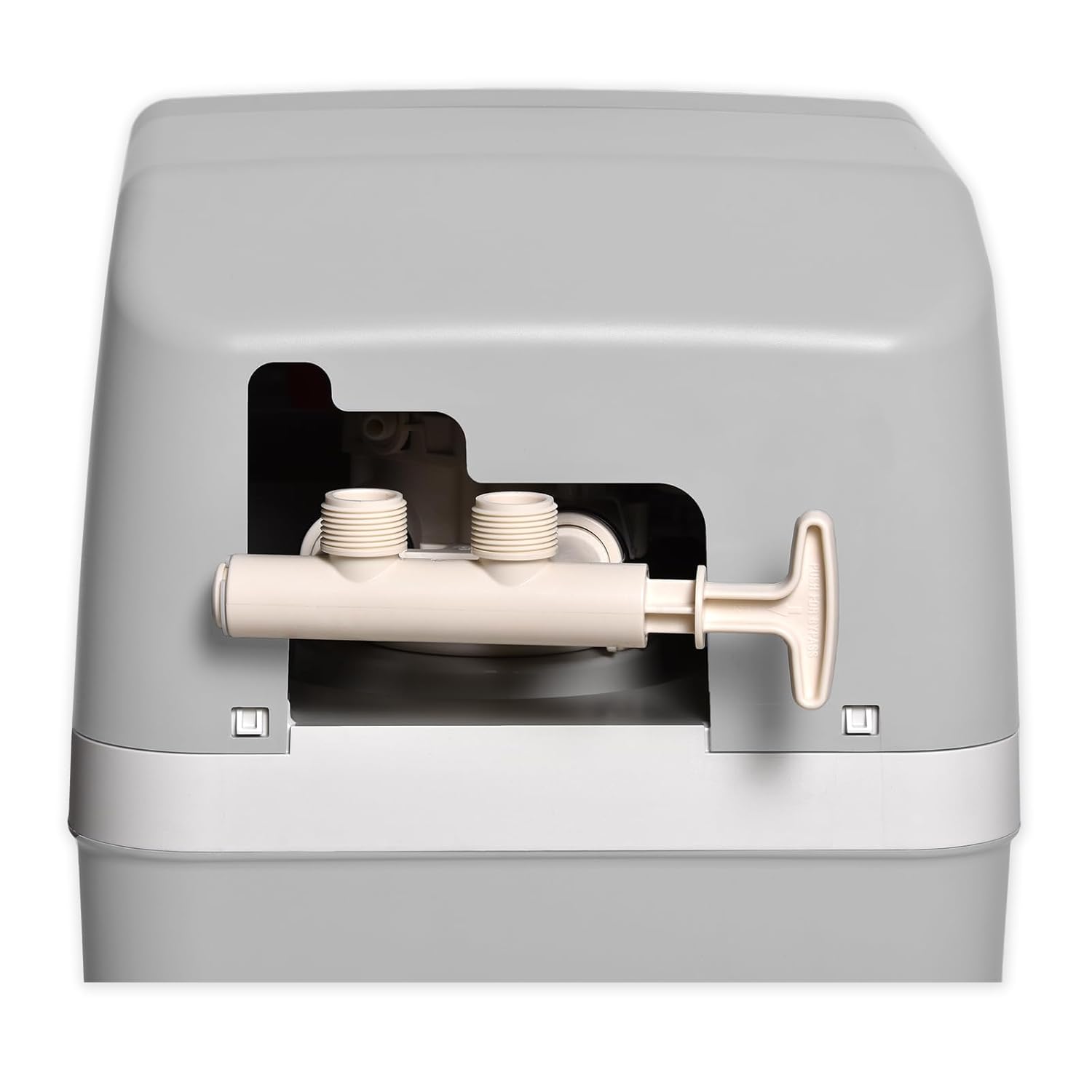

Slika 5: Bočna strana view of the water softener with the bypass valve.

Instalacija završenaview:

Video 1: Službenik prekoview of the Whirlpool WHES30 30,000 Grain Water Softener, demonstrating its features and basic installation.

Detailed Installation and Salt Addition:

Video 2: A user's perspective on installing the Whirlpool water softener, including details on plumbing connections and adding salt.

3. Upute za rad

The Whirlpool WHES30E features simple-to-program electronics. The system utilizes demand-initiated regeneration, meaning it only regenerates based on your specific water hardness level and actual water usage. This intelligent system prevents unnecessary regeneration while you are away and ensures you do not run out of soft water during periods of higher demand.

Podešavanje tvrdoće vode:

To optimize performance, you must program the unit with your water hardness level. This can be determined using a water test kit. Refer to the control panel for setting instructions.

Figure 6: Control panel for programming and monitoring the water softener.

Water Hardness Test Demonstration:

Video 3: Demonstration of a water hardness test, which is essential for correctly programming your water softener.

4. Održavanje

Dodavanje soli:

The water softener requires salt to regenerate. The unit features a low salt indicator light to alert you when salt levels are low. Use high-quality water softener pellets for best results.

Figure 7: Soft water benefits, maintained by regular salt replenishment.

Using Water Softener Cleanser:

To maintain optimal performance and extend the system's lifespan, it is recommended to use Whirlpool WHEWSC water softener cleanser. Regular use can also extend the manufacturer's warranty.

Figure 8: Whirlpool water softener cleanser (WHEWSC) for maintenance and warranty extension.

5. Rješavanje problema

If you experience issues with your water softener, consider the following common troubleshooting steps:

• Pokazatelj niske razine soli: If the low salt indicator light is on or flashing, replenish the salt in the brine tank. Ensure the salt is evenly distributed and not bridged.
• Hard Water Symptoms Persist: Verify that the water hardness setting on the control panel is correct for your water supply. Check if the unit is regenerating regularly. Ensure the bypass valve is in the 'service' position.
• Loss of Water Pressure: Check for any kinks in the water lines or blockages in the bypass valve. Ensure the high-flow valve is functioning correctly.
• Neuobičajeni zvukovi: Refer to the detailed owner's manual for specific noise diagnostics. Ensure the unit is level and stable.

For more complex issues, contact customer support or a qualified technician.

6. Specifikacije proizvoda

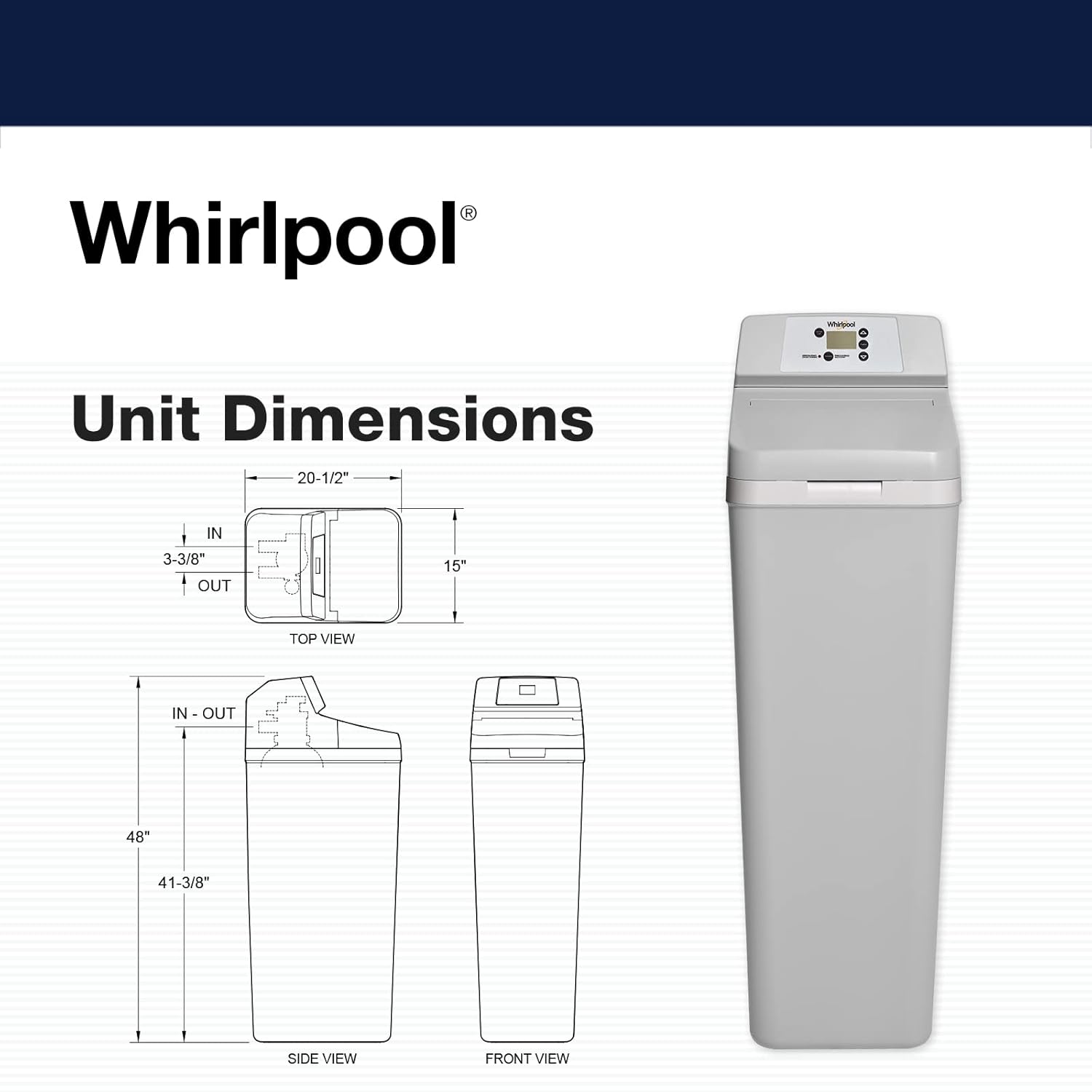

Figure 9: Unit dimensions for planning installation space.

7. Jamstvo i podrška

Informacije o jamstvu:

All Whirlpool water softeners come standard with a 1-year manufacturer's parts and labor warranty, a 3-year limited electronics warranty, and a 10-year limited warranty on the tanks. The full parts and labor warranty can be extended to 2 years with the purchase of 3 bottles of Whirlpool WHEWSC water softener cleanser within the first year of ownership (sold separately).

Što je u kutiji:

• Softener system
• Zaobilazni ventil
• Komplet za ugradnju
• Priručnik s uputama

Korisnička podrška:

For questions or support, please call the helpline at (866) 986-3223.
