1. Uvod
The Waveshare Industrial RS232/RS485 to Ethernet Converter is a robust device designed for reliable data transmission between serial devices (RS232/RS485) and an Ethernet network. It features a high-performance M4 series 32-bit ARM processor, ensuring stable and efficient operation in industrial environments. This converter supports dual serial ports, allowing independent operation of RS232 and RS485 interfaces simultaneously. Its versatile working modes and configuration options make it suitable for a wide range of applications.
2. Značajke
- Procesor: M4 series 32-bit ARM processor with up to 120MHz frequency for fast, stable, and reliable performance.
- Ethernet sučelje: 10/100M Auto-MDI/MDIX, compatible with both cross-over and straight-through cables.
- Dual Serial Ports: Independent RS232 and RS485 interfaces operating simultaneously.
- Configurable Baudrate: Supports 600bps to 230.4Kbps with five parity options (None, Odd, Even, Mark, Space).
- Multi-Indicators: LEDs for monitoring communication and working status.
- Načini rada: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST).
- Modbus Support: Suitable for industrial applications.
- Websocket Support: Bi-directional transparent data transmission with RS232/RS485 via webstranica.
- Metode konfiguracije: Preko webpage, AT commands, serial protocol, and network protocol.
- Prilagodba: Supports customized heartbeat packets, registration packets, and webstranica.
- RFC2217-like Protocol: Communicates with devices whose serial settings may change.
- Stabilnost veze: KeepAlive mechanism, auto re-connecting, and time-out reboot.
- Mrežne značajke: DNS domain name resolution, DHCP (auto-obtained or static IP).
- Firmware: Upgradable via the network.
- Opcije resetiranja: Restore to factory settings via software and/or hardware.
- MAC adresa: Comes with a default MAC address, which is customizable.
- Softverski alati: Module configuration software, TCP/UDP testing tool, VCOM virtual serial port software.
3. Sadržaj paketa
Provjerite jesu li sve dolje navedene stavke uključene u vaš paket:
- Waveshare Industrial RS232/RS485 to Ethernet Converter
- Adapter za napajanje (DC 5V)
- Ethernet kabel
- RS232 Male-to-Male Cable
- RS232 Male-to-Female Cable
Image: The package contents include the main converter unit, a power adapter, an Ethernet cable, and two RS232 cables (male-to-male and male-to-female).
4. Proizvod je gotovview
4.1. Komponente i pokazatelji
The converter features several ports and LED indicators to monitor its status and facilitate connections.

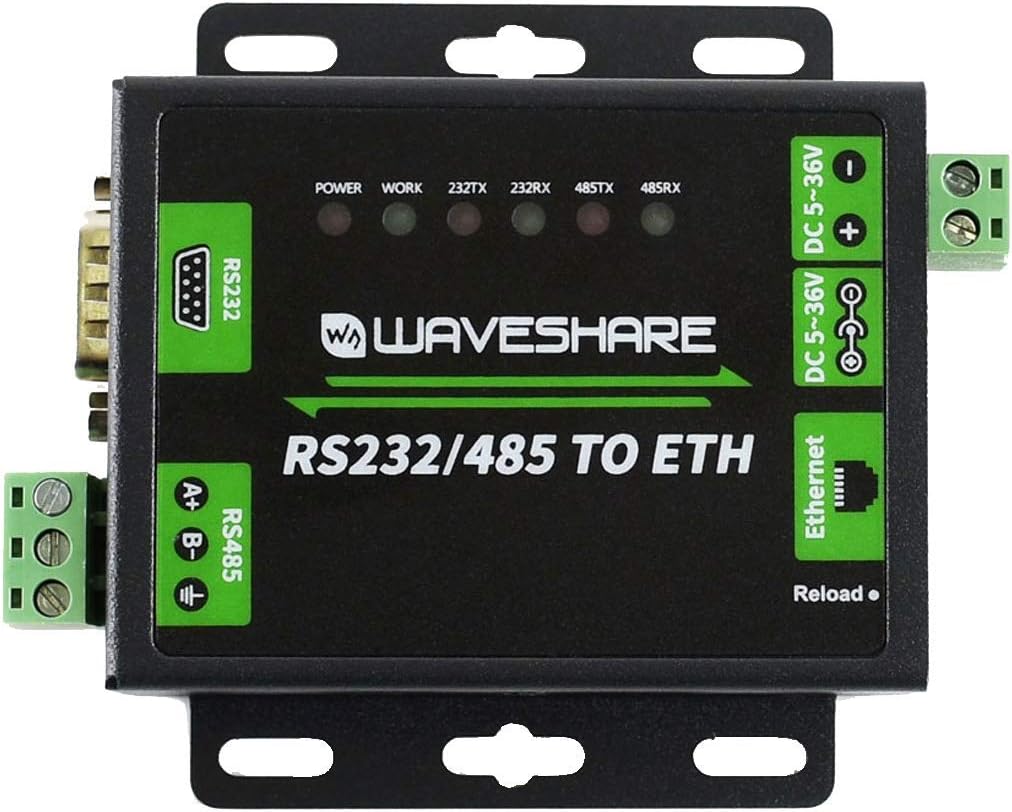

Slika: Vrh view of the converter highlighting the RS232 port, RS485 terminals, Ethernet port, DC power input, and LED indicators.
- LED za napajanje: Označava status napajanja.
- WORK LED: Indicates device working status.
- 232TX/232RX LEDs: Indicate data transmission/reception activity on the RS232 port.
- 485TX/485RX LEDs: Indicate data transmission/reception activity on the RS485 port.
- Gumb za ponovno učitavanje: Used for factory reset or other specific functions as per configuration.
4.2. luke
- RS232 priključak: Standard DB9 male connector for RS232 serial communication.
- RS485 terminali: Screw terminals for RS485 differential pair (A+, B-) and ground.
- Ethernet priključak: RJ45 connector for 10/100M Ethernet connection.
- DC ulazna snaga: Barrel jack for DC 5-36V power supply.
- DC 5-36V Terminals: Screw terminals for alternative DC 5-36V power input.
Slika: Bočno view of the converter showing the DB9 RS232 port and the green screw terminals for RS485.
Slika: Bočno view of the converter showing the RJ45 Ethernet port and the DC power input barrel jack.
5. Postavljanje
5.1. Početna veza
- Priključite napajanje: Connect the provided power adapter to the DC power input port (DC 5-36V). The POWER LED should illuminate.
- Spojite Ethernet: Connect an Ethernet cable from the converter's RJ45 port to your network switch or router.
- Connect Serial Devices: Connect your RS232 device to the DB9 port and/or your RS485 device to the RS485 screw terminals.
5.2. Zadane postavke
The device comes with default network settings for initial configuration.
Image: Bottom label of the converter displaying default configuration details.
- Zadana IP adresa: 192.168.0.7
- Korisničko ime: admin
- Lozinka: admin
- Ulazni: DC 5-36V/500mA
- Default MAC Address: (Specific address printed on the label, e.g., 9CA525RD7B9A)
It is recommended to change the default login credentials after initial setup for security purposes.
6. Načini rada
The converter supports various operating modes to suit different network communication requirements:
- TCP poslužitelj: The converter listens for incoming TCP connections from clients.
- TCP klijent: The converter initiates a TCP connection to a specified remote server.
- UDP Server: The converter listens for incoming UDP packets.
- UDP Client: The converter sends UDP packets to a specified remote host and port.
- HTTPD Client: Supports HTTP GET and POST requests for data transmission.
- Modbus: Optimized for Modbus protocol communication, commonly used in industrial automation.
- Webutičnica: Enables bi-directional transparent data transmission between the serial port and a webstranica.
7. Konfiguracija
The converter's settings can be configured using several methods:
- Webstranica: Access the converter's web interface by entering its IP address (default: 192.168.0.7) into a web browser. This provides a graphical interface for all settings.
- AT naredbe: Configuration can be performed by sending specific AT commands via the serial port.
- Serijski protokol: A dedicated serial protocol allows for programmatic configuration.
- Mrežni protokol: Configuration can also be done over the network using specific protocols.
- Konfiguracijski softver: Waveshare provides dedicated software for easy configuration on a host computer.
8. Održavanje
- Nadogradnja firmvera: The device firmware can be upgraded via the network to incorporate new features or bug fixes. Refer to the Waveshare webstranicu za najnoviji firmware i upute za nadogradnju.
- Vraćanje na tvorničke postavke: If configuration issues arise, the device can be restored to its factory default settings via software or by pressing the 'Reload' button (refer to specific instructions for the button sequence).
- KeepAlive Mechanism: The built-in KeepAlive mechanism helps detect broken connections and automatically re-establishes them, ensuring continuous operation.
- Time-out Reboot: Configure a time-out reboot (no-data reboot) to ensure long-term stable connections, especially in environments where intermittent communication might occur.
9. Rješavanje problema
If you encounter issues with the converter, consider the following:
- Bez napajanja: Ensure the power adapter is correctly connected and providing the specified voltage (DC 5-36V). Check the POWER LED.
- Nema mrežne veze: Verify the Ethernet cable connection. Check network settings (IP address, subnet mask, gateway). Ensure the Ethernet port LEDs are active.
- Greška u serijskoj komunikaciji: Check serial port wiring (RS232 pinout, RS485 A+/B- polarity). Verify baudrate, data bits, parity, and stop bits settings match the connected serial device. Observe 232TX/RX and 485TX/RX LEDs for activity.
- Ne mogu pristupiti Web sučelje: Ensure your computer's IP address is in the same subnet as the converter's default IP (192.168.0.x). Try pinging the converter's IP address.
- Isprekidana veza: Check for network interference or cable issues. Review KeepAlive and time-out reboot settings.
- Vraćanje na tvorničke postavke: If configuration becomes problematic, perform a factory reset.
For further assistance, refer to the Waveshare official webstranicu ili kontaktirajte njihovu tehničku podršku.
10. Specifikacije
| Značajka | Specifikacija |
|---|---|
| Procesor | M4 series 32-bit ARM, 120 MHz |
| OVAN | LPDDR4 |
| Brzina memorije | 120 MHz |
| Ethernet sučelje | 10/100M Auto-MDI/MDIX |
| Serijski priključci | 1x RS232 (DB9), 1x RS485 (Screw Terminal) |
| Brzina prijenosa | 600 bps ~ 230.4 Kbps |
| Parity Options | Nijedno, Neparno, Parno, Označi, Prostor |
| Ulazna snaga | DC 5-36V (Barrel Jack or Screw Terminal) |
| Operativni sustav | Linux (interno) |
| Težina artikla | 1.1 funti (otprilike 0.5 kg) |
| Dimenzije paketa | 8.07 x 6.18 x 1.89 inča (otprilike 20.5 x 15.7 x 4.8 cm) |
| Broj modela | RS232/485 NA ETH |
| Tehnologija povezivanja | Ethernet |
10.1. Fizičke dimenzije
Image: Technical drawing showing the dimensions of the converter in millimeters (e.g., 85.70mm height, 82.76mm width, 25.20mm depth).
11. Jamstvo i podrška
For warranty information, technical support, and additional resources, please visit the official Waveshare website. You can find detailed documentation, software downloads, and contact information for customer service there.
Waveshare Official Webstranica: www.waveshare.com
