TURCK C10-A10X/012VDC SPDT Relay

1. Uvod

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the TURCK C10-A10X/012VDC SPDT Relay. This electromechanical relay is designed for general purpose applications, featuring a single pole double throw (SPDT) contact configuration, a 12VDC coil, and an integrated LED indicator for status monitoring. Please read this guide thoroughly before proceeding with any installation or operation.

2. Sigurnosne informacije

Uvijek se pridržavajte sljedećih sigurnosnih mjera opreza kako biste spriječili tjelesne ozljede ili oštećenje opreme:

• Električna opasnost: Ensure all power sources are disconnected before installation, wiring, or maintenance. Only qualified personnel should perform electrical work.
• Voltage i trenutne ocjene: Do not exceed the specified coil voltage (12VDC) or contact current rating (10 Amps). Overloading can cause damage or fire.
• Ispravno ožičenje: Use appropriate wire gauges and insulation for the intended current and voltage. Ensure all connections are secure to prevent arcing or short circuits.
• Uvjeti okoliša: Install the relay in an environment free from excessive moisture, dust, corrosive gases, or extreme temperatures.

3. Proizvod je gotovview

The TURCK C10-A10X/012VDC is a compact general-purpose relay designed for reliable switching in various industrial and control applications. It features a single pole double throw (SPDT) contact arrangement, allowing it to switch one circuit between two different paths. An integrated LED indicator provides visual confirmation of the coil's energized state.

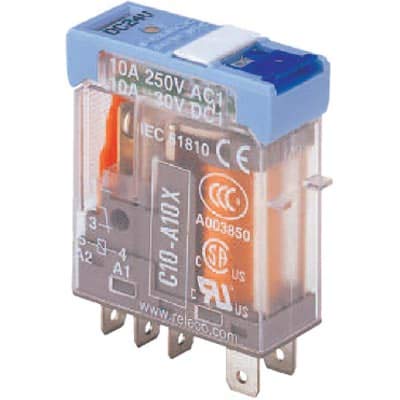

Slika 1: Prednja strana view of the TURCK C10-A10X/012VDC SPDT Relay. This image displays the compact form factor of the relay, highlighting its terminal pins and the visible LED indicator on the top surface, which illuminates when the coil is energized.

4. Postavljanje i instalacija

Slijedite ove korake za ispravnu instalaciju:

1. Prekid napajanja: Ensure all power to the circuit where the relay will be installed is completely disconnected and locked out.
2. Montaža: Mount the relay securely in a suitable relay socket or directly onto a PCB, ensuring proper pin alignment. Refer to the relay's datasheet for specific pinout diagrams if direct soldering is required.
3. Coil Wiring (12VDC):
   • Connect the 12VDC control voltage to the relay coil terminals. Observe polarity if specified, though many DC coils are non-polarized.
   • The LED indicator will illuminate when the 12VDC is applied across the coil terminals, indicating the coil is energized.
4. Contact Wiring (SPDT):
   • Identify the Common (COM), Normally Open (NO), and Normally Closed (NC) contact terminals.
   • Connect the load's power source to the Common (COM) terminal.
   • Connect the load to either the Normally Open (NO) or Normally Closed (NC) terminal, depending on the desired switching behavior.
   • Maksimalni uklopni voltage is 12 Volts, and the maximum current is 10 Amps. Do not exceed these ratings.
5. Provjera: Nakon ožičenja, dvaput provjerite sve spojeve radi ispravnosti i sigurnosti prije ponovnog uključivanja napajanja.

5. Upute za rad

The TURCK C10-A10X/012VDC relay operates automatically based on the presence or absence of the 12VDC coil voltage.

• Beznaponsko stanje: Kada nema voltage is applied to the 12VDC coil, the relay is in its default state. The Common (COM) contact is connected to the Normally Closed (NC) contact. The LED indicator will be off.
• Energizirano stanje: When 12VDC is applied to the coil terminals, the coil energizes, causing the internal armature to move. The Common (COM) contact switches from the Normally Closed (NC) position to the Normally Open (NO) position. The LED indicator will illuminate, confirming the coil is energized and the contacts have switched.
• Automatski rad: The relay will maintain its energized state as long as the 12VDC coil voltage is present. Upon removal of the 12VDC, the relay will return to its de-energized state, and the contacts will revert to their default positions.

6. Održavanje

The TURCK C10-A10X/012VDC relay is designed for long-term, reliable operation with minimal maintenance. However, periodic inspection is recommended:

• Vizualni pregled: Periodically inspect the relay and its connections for any signs of damage, discoloration, loose wires, or excessive dust accumulation.
• Čišćenje: Ako je potrebno, nježno očistite vanjski dio releja suhom, mekom krpom. Nemojte koristiti otapala ili abrazivna sredstva za čišćenje.
• Integritet veze: Ensure all terminal connections remain tight and secure.
• Provjera zaštite okoliša: Verify that the operating environment continues to meet the specified conditions.

7. Rješavanje problema

If the relay does not function as expected, consider the following:

8. Specifikacije

9. Jamstvo i podrška

For information regarding product warranty, technical support, or service, please contact TURCK directly or refer to their official webmjesto. Čuvajte račun za jamstvene zahtjeve.

TURCK Official Webstranica: www.turck.com
