waveshare Raspberry Pi HQ Camera Module (RP-00261) Instruction Manual

1. Uvod

The waveshare Raspberry Pi HQ Camera Module (RP-00261) is a high-quality imaging solution designed for Raspberry Pi boards. It features a 12.3-megapixel Sony IMX477 sensor, offering significantly higher resolution and improved low-light performance compared to previous Raspberry Pi camera modules. This module supports interchangeable C-mount and CS-mount lenses, providing flexibility for various photographic and video applications. It is compatible with Raspberry Pi 4, 3 Model B, and other models, enabling users to integrate advanced imaging capabilities into their projects.

Figure 1: Raspberry Pi HQ Camera Module with a lens attached.

2. Sadržaj paketa

Provjerite jesu li sve dolje navedene stavke uključene u vaš paket:

• Tijelo kamere
• C-CS Adapter Ring
• Poklopac za prašinu
• FPC Cable (for connecting to Raspberry Pi)
• Odvijač

Figure 2: Contents of the Raspberry Pi HQ Camera Module package.

3. Hardver je gotovview

The Raspberry Pi HQ Camera Module consists of several key components:

• Glavna strujna ploča: Houses the IMX477 sensor and processing components.
• Main Housing and Sensor: The core camera unit.
• Back Focus Adjustment Ring: Used to fine-tune the focus for different lenses.
• Back Focus Lock Screw: Secures the back focus adjustment ring.
• Optional C-CS Adapter: Allows compatibility with CS-mount lenses.
• Poklopac za prašinu: Protects the sensor when no lens is attached.
• Ribbon to Raspberry Pi: Flexible cable for data transfer and power.
• Montažne rupe: For securing the camera module.
• Optional Tripod Mount: For stable positioning.

Slika 3: Eksplodirano view of the Raspberry Pi HQ Camera Module components.

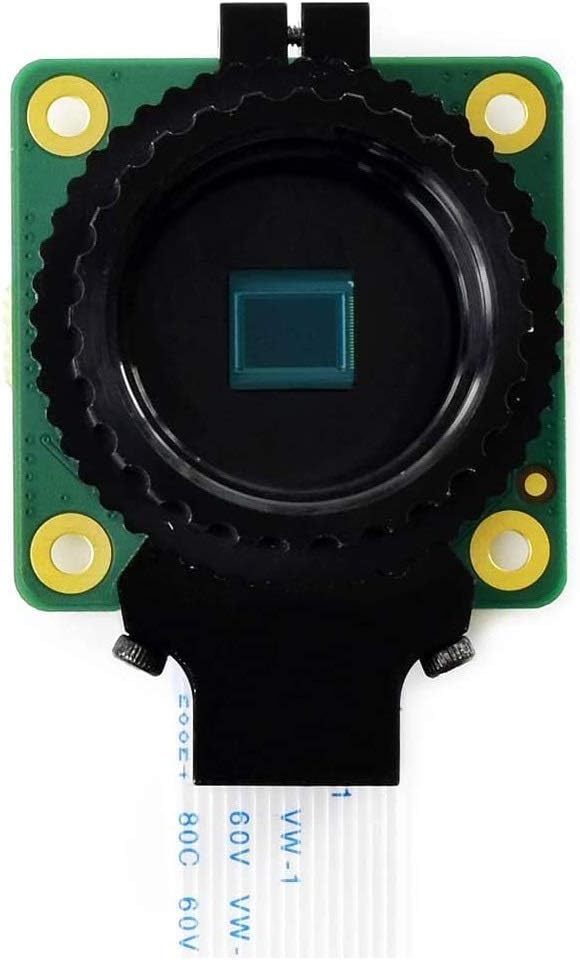

Slika 4: Prednja strana view of the camera module.

Slika 5: Natrag view of the camera module.

4. Postavljanje

4.1 Connecting to Raspberry Pi

To connect the HQ Camera Module to your Raspberry Pi, follow these steps:

1. Locate the CSI (Camera Serial Interface) port on your Raspberry Pi board. This is typically labeled "CAMERA".
2. Gently pull up the plastic clip on the CSI connector.
3. Insert the FPC (Flexible Printed Circuit) cable from the camera module into the CSI port, ensuring the silver contacts on the cable face the silver contacts in the connector.
4. Push the plastic clip back down to secure the cable.
5. For Raspberry Pi Zero models, an additional Raspberry Pi Zero v1.3 Camera Cable may be required (sold separately).

Figure 6: Raspberry Pi HQ Camera Module connected to different Raspberry Pi models.

4.2 Attaching Lenses

The HQ Camera Module supports C-mount and CS-mount lenses. Use the included C-CS adapter ring for CS-mount lenses. Screw the desired lens onto the camera module's lens mount. Adjust the back focus ring as needed for optimal image clarity.

5. Upute za rad

After connecting the camera module, you will need to enable it in your Raspberry Pi's software settings. Refer to the official Raspberry Pi documentation for specific software configuration steps.

5.1 Camera Functionalities Demonstration

The following video demonstrates general camera functionalities such as autofocus, manual focus, and digital zooming. Please note that this video features a different camera module (Arducam 64MP Autofocus Raspberry Pi Camera Module B0399) but the principles of operation for these features are broadly applicable to the Raspberry Pi HQ Camera Module.

6. Specifikacije

Key technical specifications of the Raspberry Pi HQ Camera Module:

Figure 7: Detailed specifications of the camera module.

• Senzor: Sony IMX477R, 12.3MP, 4056 (H) x 3040 (V)
• CMOS Diagonal Size: 7.9 mm
• Veličina piksela: 1.55µm (H) x 1.55µm (V)
• Izlaz: RAW12 / 10 / 8, COMP8
• Stražnji fokus: Adjustable (12.5mm-22.4mm)
• Podrška za objektive: C-mount / CS-mount (C-CS adapter included)
• IR rezni filter: Integriran
• Tronožac: 1/4"-20
• Sukladnost: FCC 47 CFR Part 15, Subpart B, Class B Digital Device; Electromagnetic Compatibility Directive (EMC) 2014/30/EU; Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
• Težina artikla: 1.44 unci
• Dimenzije paketa: 3.74 x 1.65 x 1.46 inča
• Broj modela artikla: RP-00261

7. Outline Dimensions

The physical dimensions of the Raspberry Pi HQ Camera Module are provided below for integration into custom enclosures or projects.

Figure 8: Outline dimensions of the camera module (all measurements in millimeters).

8. Higher Resolution and Imaging Effect

The Raspberry Pi HQ Camera Module offers a significant upgrade in resolution and sensitivity. With 12.3 megapixels, it provides nearly 50% greater area per pixel compared to the 8-megapixel Camera Module V2, resulting in improved low-light performance and sharper imaging effects.

Figure 9: Visual comparison of imaging quality between an 8MP camera and the 12.3MP HQ Camera.

9. Održavanje

• Keep the camera module and lenses clean and free from dust. Use a soft, lint-free cloth for cleaning.
• Avoid touching the sensor directly. Always use the dust cap when no lens is attached.
• Store the module in a dry, cool environment away from direct sunlight and extreme temperatures.
• Provjerite jesu li svi spojevi sigurni prije rada.

10. Rješavanje problema

• Kamera nije otkrivena:
  • Check if the FPC cable is correctly inserted and secured in both the camera module and the Raspberry Pi's CSI port.
  • Ensure the camera is enabled in your Raspberry Pi's software configuration (e.g., via raspi-config).
  • Verify that your Raspberry Pi operating system is up to date.
• Poor image quality/focus:
  • Adjust the back focus adjustment ring on the camera module.
  • Provjerite je li objektiv čist i bez mrlja ili prašine.
  • Check lens compatibility and ensure it is securely attached.
• Pregrijavanje modula:
  • Ensure adequate ventilation around the Raspberry Pi and camera module.
  • Consider using a heatsink or fan for prolonged high-load operations.

11. Jamstvo i podrška

For warranty information and technical support, please refer to the official waveshare website or contact their customer service directly. Specific warranty terms may vary based on region and retailer.

For additional resources and community support, visit the official Raspberry Pi forums and documentation.
