1. Uvod i krajview
This manual provides instructions for the installation, operation, and maintenance of the Delta Faucet 52488-PR Contemporary Shower Head. This shower head incorporates H2Okinetic technology, which sculpts water into a unique wave pattern to provide enhanced coverage and intensity. It also features UltraSoak spray for a dense rainfall sensation, Lumicoat finish for resistance to water spots, and Touch-Clean spray holes for easy mineral residue removal.

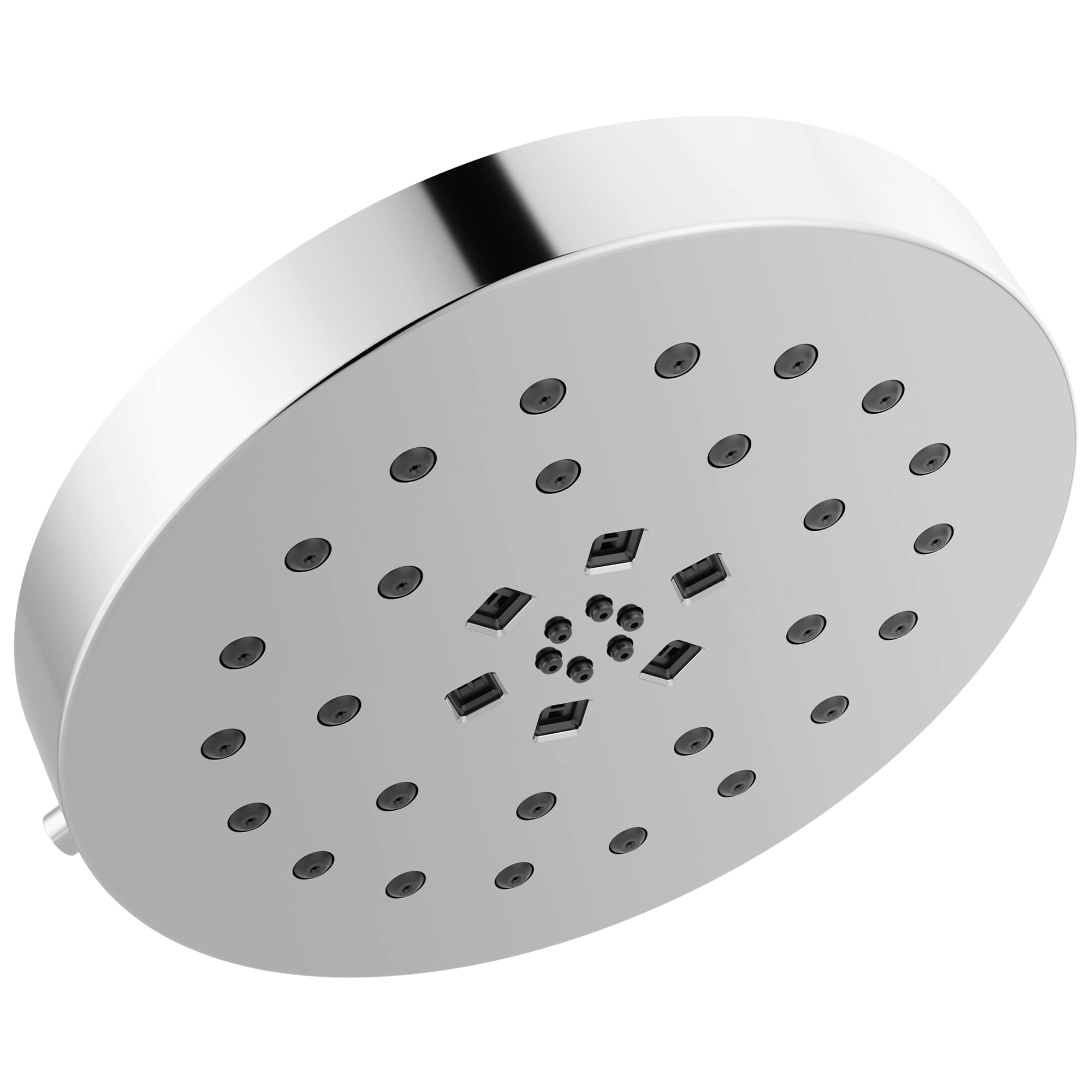

Image 1.1: Delta Faucet 52488-PR Contemporary Shower Head in Chrome, demonstrating water flow.
Image 1.2: Visual representation of H2Okinetic Technology's enhanced coverage.
2. Postavljanje i instalacija
The Delta Faucet 52488-PR shower head is designed for wall-mounted installation and can typically be installed in minutes. Ensure all necessary plumbing connections are secure and watertight before use. Refer to local plumbing codes for specific installation requirements.
Koraci instalacije (općenito):
- Turn off the main water supply to the shower.
- Remove the existing shower head by unscrewing it counter-clockwise from the shower arm.
- Clean any old sealant or debris from the shower arm threads.
- Apply plumber's tape (not included) clockwise around the threads of the shower arm.
- Screw the new Delta shower head onto the shower arm clockwise until hand-tight. Do not overtighten.
- Turn on the main water supply and check for leaks. Tighten slightly if necessary.
3. Upute za rad
The Delta Faucet 52488-PR shower head offers multiple spray settings for a customized shower experience:
- H2Okinetic PowerDrench Spray: Provides a powerful, saturating spray for full coverage.
- Massaging Spray: Delivers a focused, invigorating stream.
- H2Okinetic UltraSoak Spray: Mimics dense natural rainfall for a deeply saturating sensation.
- Pauziraj značajku: Reduces water flow to a trickle, allowing for tasks like shaving or lathering while maintaining temperature settings and conserving water.
To change spray settings, rotate the spray face or the lever/dial on the shower head (depending on the specific design) to cycle through the available options.
Slika 3.1: Primjeramples of the various spray settings available on the shower head.
4. Održavanje
To maintain the performance and appearance of your Delta Faucet 52488-PR shower head:
- Otvori za prskanje koji se čiste dodirom: Mineral residue and lime build-up can be easily wiped away from the soft rubber spray holes with a finger. No chemical cleaners or soaking are required.
- Lumicoat Finish: The ultra-sleek Lumicoat surface repels liquids and resists water spots, helping the finish stay cleaner longer. Clean with a soft, damp krpom. Izbjegavajte abrazivna sredstva za čišćenje ili jake kemikalije koje bi mogle oštetiti završnu obradu.
Image 4.1: Demonstrating the ease of cleaning Touch-Clean spray holes.
Image 4.2: Illustration of the Lumicoat finish's water-repelling properties.
5. Rješavanje problema
If you experience issues with your shower head, consider the following:
- Nizak tlak vode: Check for mineral build-up in the spray holes (refer to the Maintenance section). Ensure the main water supply valve to your shower is fully open.
- Propuštanje: Verify all connections are tight. If leaking persists from the shower head itself, ensure it is properly seated and not damaged. If the leak is from the connection point, re-apply plumber's tape and re-tighten. If issues continue, consult a qualified plumber.
- Nedosljedan uzorak prskanja: Clean spray holes as described in the Maintenance section to remove any obstructions.
6. Specifikacije
| Marka | DELTA |
| Broj modela | 52488-PR |
| Stil | With Lumicoat |
| Oblik | Krug |
| Materijal | Plastični |
| Vrsta završetka | Krom |
| Vrsta instalacije | Zidni |
| Boja | Krom |
| Dimenzije proizvoda | 3.5 cm D x 8 cm Š |
| Broj postavki | 7 |
| Broj mlaznica | 1 |
| Učinkovitost | 2.0 GPM |
| UPC | 034449991599 |
| Težina artikla | 1.74 funti |
| Uključene komponente | Glava tuša |
7. Jamstvo i podrška
The Delta Faucet 52488-PR Contemporary Shower Head is backed by a Ograničeno doživotno jamstvo. This warranty covers defects in material and manufacturing for the original consumer purchaser.
Image 7.1: Lifetime Limited Warranty emblem.
For warranty claims, technical support, or to obtain replacement parts, please contact Delta Faucet Company customer service. Keep your proof of purchase for warranty validation.
Proizvođač: Delta Faucet Company
Please visit the official Delta Faucet webweb-mjesto ili pogledajte kontaktne podatke navedene na pakiranju proizvoda za najnovije podatke o podršci.
