Tefal OptiSpace 7L Stainless Steel Pressure Cooker Instruction Manual

1. Uvod

Welcome to the Tefal OptiSpace 7L Stainless Steel Pressure Cooker. This compact and efficient pressure cooker is designed to optimize space in your kitchen while providing safe and fast cooking. Crafted from premium stainless steel, it features a triple bottom for even heat distribution and multiple integrated safety systems. This manual provides essential information for the safe and effective use of your new pressure cooker.

Image 1: The Tefal OptiSpace 7L Stainless Steel Pressure Cooker, showcasing svojim elegantnim dizajnom.

2. Sigurnosne upute

Your Tefal OptiSpace pressure cooker is equipped with 5 integriranih sigurnosnih sustava to ensure maximum protection during use. Please read and understand all safety warnings before operating the appliance.

• Lid Closure Detection: The pressure cooker will only build pressure if the lid is correctly and securely closed.
• Tlačni ventil: Regulates internal pressure during cooking.
• Sigurnosni ventil: An additional safety mechanism to release excess pressure if the main valve malfunctions.
• Safety Window: Designed to release pressure safely in extreme circumstances.
• Lid Lock and Safety Indicator: Prevents the lid from being opened while the cooker is under pressure.

Opće sigurnosne mjere:

• Never force open the lid while the cooker is under pressure.
• Always check that all valves and seals are clean and free from obstruction before each use.
• Do not fill the pressure cooker more than two-thirds full for most foods, and no more than half full for foods that expand, such as rice or dried vegetables.
• Ensure the pressure cooker is stable on the heat source.
• Keep children away from the pressure cooker during use.

Image 2: Diagram illustrating the 5 safety systems of the Tefal OptiSpace pressure cooker, including the pressure valve, safety valve, safety window, lid lock, and lid closure detection.

3. Komponente proizvoda

Your Tefal OptiSpace pressure cooker includes the following main components:

• Pressure Cooker Body: Made of premium stainless steel with a 7-liter capacity.
• Poklopac: Features the integrated safety systems and pressure selector.
• Košara za kuhanje na pari: An accessory for delicate foods and vegetables.
• Triple Bottom: Ensures uniform heat distribution.

Image 3: The Tefal OptiSpace pressure cooker shown with its accompanying steam basket, highlighting its premium stainless steel construction.

4. Postavljanje

4.1 Početno čišćenje

Before first use, wash all parts of the pressure cooker (body, lid, steam basket, and gasket) with warm soapy water. Rinse thoroughly and dry completely. Ensure all valves on the lid are clear and free from any packaging residue.

4.2 Lid Placement and Closure

To close the lid, align the arrow on the lid with the arrow on the handle of the pot. Press down and rotate the handle until it locks into place. The safety indicator will confirm proper closure. To open, reverse the process after ensuring all pressure has been released.

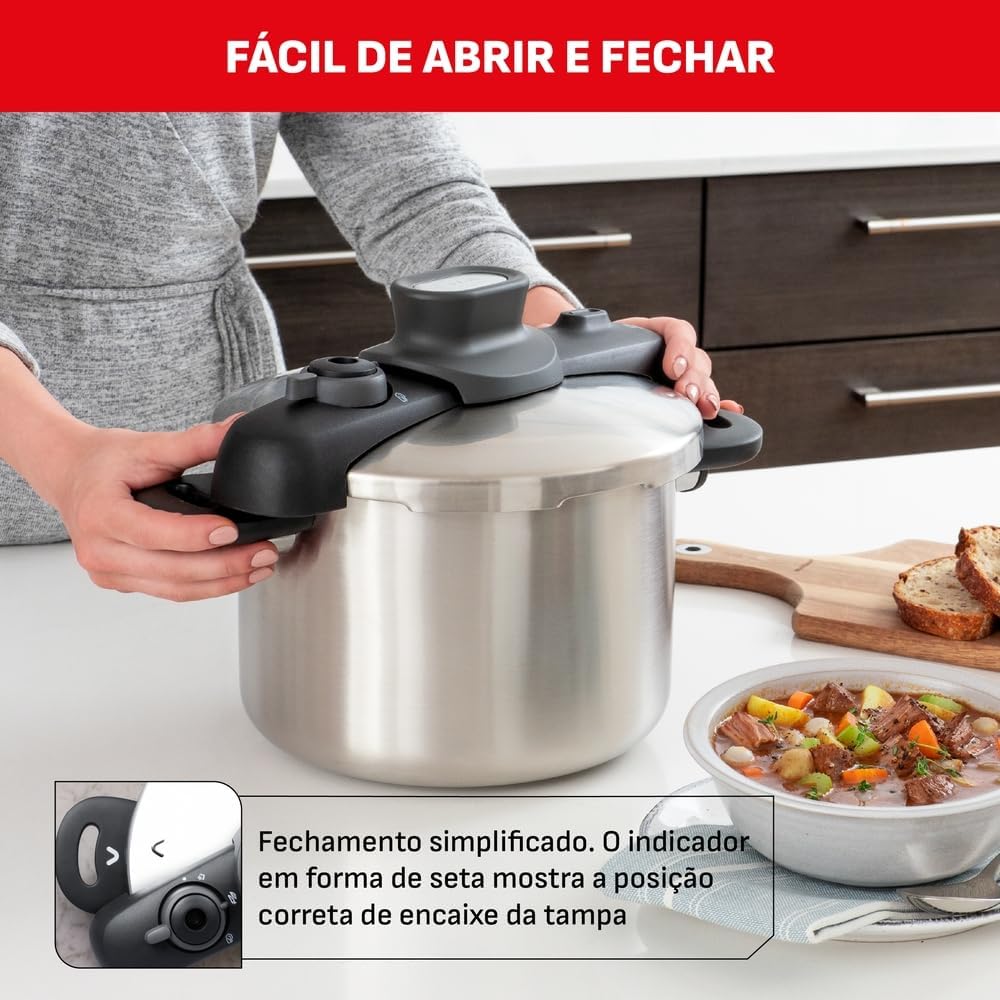

Image 4: A person demonstrating the easy closing mechanism of the Tefal OptiSpace pressure cooker lid, with an indicator showing the correct alignment.

5. Upute za rad

5.1 Filling the Pressure Cooker

Observe the internal markings for minimum (min 1/3) and maximum (max 2/3) capacity. Never exceed the maximum fill line. For foods that expand, such as rice or dried beans, do not fill more than half full.

Image 5: Close-up of the internal markings within the pressure cooker, indicating minimum and maximum fill levels.

5.2 Selecting Pressure Levels

Your pressure cooker offers two pressure levels:

• Level 1 (Lower Pressure): Ideal for delicate foods like vegetables and fish, preserving nutrients and vitamins.
• Level 2 (Higher Pressure): Suitable for heavier foods such as grains and meats, ensuring faster cooking.

Rotate the pressure selector on the lid to choose the desired setting before heating.

Image 6: The pressure selector on the lid, showing options for two pressure levels for different food types.

5.3 Korištenje košare za kuhanje na pari

The included steam basket allows for healthy steam cooking. Place the basket inside the cooker with a small amount of water below it, ensuring the water does not touch the food. This method is perfect for delicate items, retaining their nutrients and vitamins.

Image 7: A hand placing the steam basket, filled with chopped vegetables, into the pressure cooker for healthy cooking.

5.4 Izvori topline

The Tefal OptiSpace pressure cooker is compatible with all heat sources, including gas, electric, ceramic, and induction cooktops, thanks to its triple bottom design that ensures uniform heat distribution.

Image 8: The triple bottom of the pressure cooker, indicating its compatibility with various heat sources, including induction.

6. Čišćenje i održavanje

Pravilno čišćenje i održavanje produžit će vijek trajanja vašeg ekspres lonca.

• Može se prati u perilici posuđa: The pressure cooker body and steam basket are dishwasher safe.
• Pranje ruku: For the lid, hand washing with warm soapy water is recommended to protect the delicate valve mechanisms.
• Brtva: Regularly inspect the gasket for wear and tear. Replace if damaged to maintain proper sealing.
• Ventili: Ensure all valves are clean and free of food particles after each use. Use a small brush if necessary.

7. Rješavanje problema

Ako naiđete na probleme s ekspres loncem, pogledajte sljedeće uobičajene probleme i rješenja:

• No Pressure Build-up: Check if the lid is properly closed and sealed. Ensure the gasket is correctly positioned and not damaged. Verify that the pressure valve is not clogged.
• Para izlazi iz poklopca: This often indicates an improperly seated lid or a worn-out gasket. Re-seat the lid or replace the gasket if necessary.
• Hrana se ne kuha pravilno: Ensure the correct pressure level was selected for the food type and that the cooking time was adequate. Verify that the heat source is appropriate and consistent.

For persistent issues, please contact Tefal customer support.

8. Specifikacije

Image 9: Visual representation of the Tefal OptiSpace pressure cooker with its key dimensions.

9. Jamstvo i podrška

Your Tefal OptiSpace pressure cooker comes with a comprehensive warranty:

• Metallic Body: 10-godišnje jamstvo protiv grešaka u proizvodnji.
• Ostale komponente: 2-year warranty for all other parts, as specified in the warranty terms and instruction manual.

For support, spare parts, or warranty claims, please refer to the official Tefal website or contact your local authorized service center. You can also visit the Tefal trgovina na Amazonu za više informacija.

10. Videozapisi proizvoda

10.1 Product Details Video

Video 1: Detaljan pregledview of the pressure cooker's features and benefits, provided by Amazon Brasil.
