Uvod
This manual provides essential information for the safe and effective use of your ProForm Treadmill t8.5. Please read all instructions carefully before assembly and operation. Keep this manual for future reference.
Važne sigurnosne informacije
Before using this equipment, ensure you understand all safety precautions. Consult a physician before beginning any exercise program. Always use the safety key during operation.
- Držite djecu i kućne ljubimce dalje od trake za trčanje tijekom rada.
- Place the treadmill on a level surface with adequate clearance around it.
- Ne koristite traku za trčanje ako je oštećena ili neispravna.
- Nosite odgovarajuću odjeću za vježbanje i sportske cipele.
- Uvijek se držite za rukohvate prilikom pokretanja ili zaustavljanja trake za trčanje.
Postavljanje i montaža
Raspakiranje
Carefully remove all components from the packaging. Place the packaging materials aside for potential future transport or disposal. Ensure all parts listed in the assembly guide (not included in this manual) are present.
Plasman
Position the treadmill on a flat, stable surface. Ensure there is at least 2 meters (6.5 feet) of clear space behind the treadmill and 0.5 meters (1.6 feet) on each side for safe operation and access.
Priključak za napajanje
Connect the power cord to a grounded electrical outlet. Do not use extension cords unless absolutely necessary and ensure they are rated for the treadmill's power requirements.
Image: The ProForm Treadmill t8.5 fully assembled, showcasing its design and console.
Sklapanje i rasklapanje
The ProForm Treadmill t8.5 features a SpaceSaver design for convenient storage. To fold, lift the running deck until it locks into an upright position. To unfold, gently push the release mechanism and lower the deck to the floor.
Image: A user demonstrating the folding mechanism of the treadmill for storage.
Image: A user demonstrating the unfolding process of the treadmill, preparing it for use.
Upute za rad
Konzola gotovaview
The console features a display for workout metrics, digital quick speed and incline controls, and dual 2-inch speakers. Familiarize yourself with the button layout before starting your workout.
Slika: Detaljna view of the treadmill's console, highlighting the display and control panel.
Početak vježbanja
- Attach the Safety Key: Clip the safety key to your clothing and insert the other end into the console's designated slot. The treadmill will not operate without the safety key.
- Ručni način rada: Pritisnite gumb 'Start' za početak ručnog treninga. Traka će se početi kretati malom brzinom.
- Programski način rada: Select a pre-set workout program from the console. Follow the on-screen prompts to begin.
Podešavanje brzine i nagiba
- Ubrzati: Use the 'QuickSpeed' buttons or the '+' and '-' buttons to adjust the belt speed from 0 to 16 kph.
- Nagib: Use the 'Quick Incline' buttons or the '+' and '-' buttons to adjust the incline from 0% to 10%.
Image: A user actively running on the treadmill, illustrating its operational use.

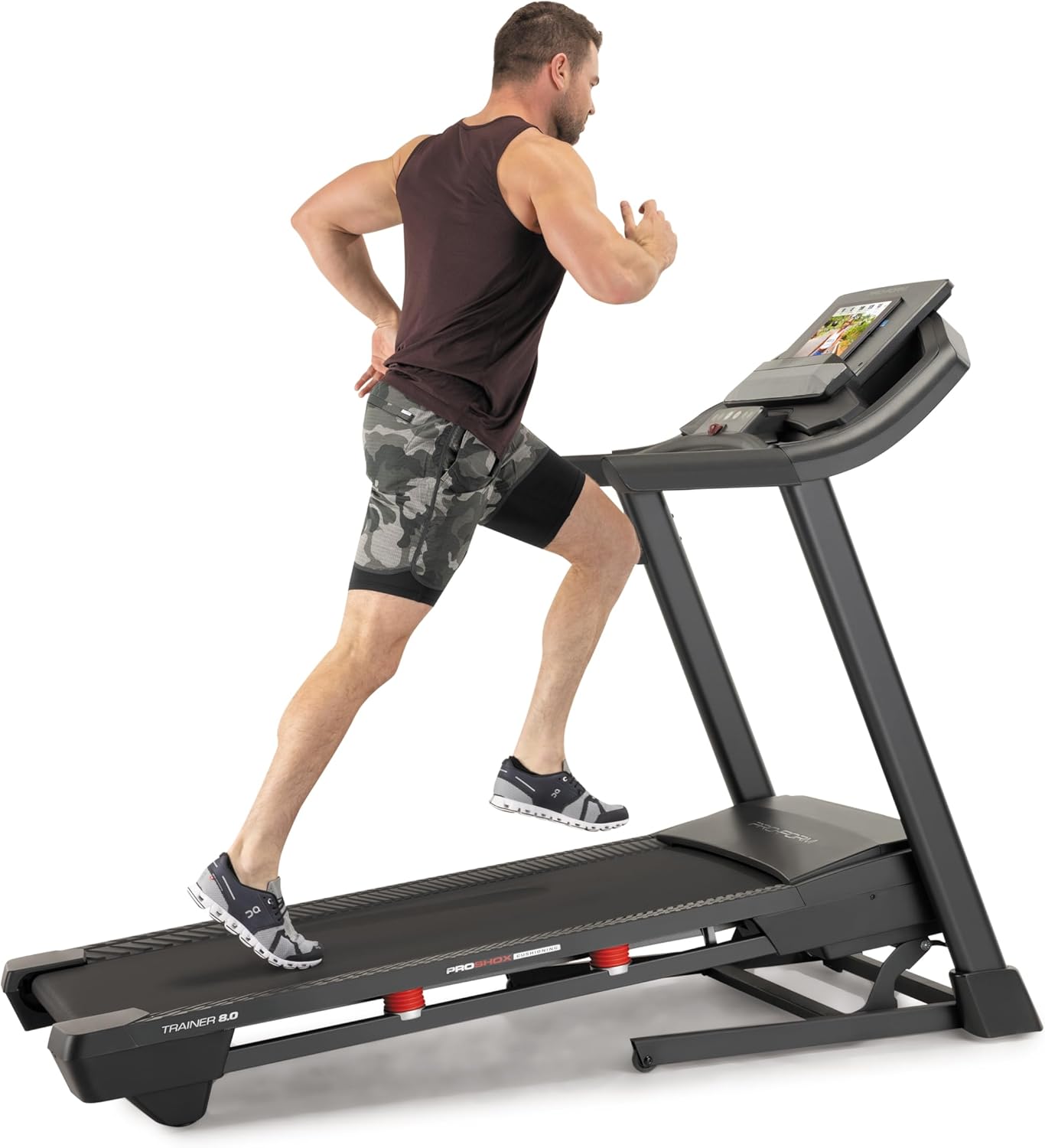

Image: Another perspective of a user running on the treadmill, highlighting the running surface.
Zaustavljanje trake za trčanje
To stop the treadmill, press the 'Stop' button on the console. For an emergency stop, pull the safety key from the console. The treadmill will immediately cease operation.
Održavanje
Redovito održavanje osigurava dugotrajnost i optimalne performanse vaše trake za trčanje.
Čišćenje
- Konzola: Wipe the console with a damp krpom. Izbjegavajte abrazivna sredstva za čišćenje ili prekomjernu vlagu.
- Running Deck and Belt: Periodically clean the running deck and belt with a damp krpom za uklanjanje prašine i krhotina.
Podmazivanje remena
The running belt may require lubrication after extended use. Refer to the specific lubrication instructions provided with your treadmill or contact customer service for guidance. Use only approved treadmill lubricant.
Belt Tension and Alignment
If the running belt slips or drifts to one side, it may need adjustment. Consult the detailed assembly guide or contact customer service for instructions on how to properly tension and align the belt. Incorrect adjustment can damage the treadmill.
Rješavanje problema
This section addresses common issues you might encounter with your ProForm Treadmill t8.5.
| Problem | Mogući uzrok | Otopina |
|---|---|---|
| Traka za trčanje se ne pokreće | Power cord not plugged in; Safety key not inserted; Circuit breaker tripped. | Provjerite je li kabel za napajanje sigurno priključen; Potpuno umetnite sigurnosni ključ; Provjerite osigurač kućnog strujnog kruga. |
| Klizne trake za trčanje | Napetost remena previše labava. | Adjust belt tension (refer to maintenance section or assembly guide). |
| Console display is blank | Power issue; Console cable disconnected. | Check power connection; Ensure all console cables are securely connected (refer to assembly guide). |
| Neuobičajena buka tijekom rada | Labavi dijelovi; Trenje remena; Problem s motorom. | Inspect for loose bolts and tighten; Lubricate belt if needed; If noise persists, contact customer service. |
Tehnički podaci
Key technical specifications and features of the ProForm Treadmill t8.5:
| Značajka | Detalj |
|---|---|
| Model | t8.5 |
| Marka | ProForm |
| Digital Quick Incline Control | 0% – 10% |
| Digital QuickSpeed Control | 0 – 16 kph (0 – 11.2 Miles per Hour) |
| Tread Belt Dimensions | 51 x 140 cm |
| Maksimalna nosivost | 135 kg |
| Zvučnici | Dual 2” Speakers |
| Težina artikla | 81 kilogram |
| Materijal | Aluminij |
| Posebne značajke | Portable (SpaceSaver Design) |
| Ciljna publika | Odrasli, Mladi |
| Maksimalna konjska snaga | 2.6 konjskih snaga |
Jamstvo i podrška
For detailed warranty information, please refer to the warranty card included with your product or visit the official ProForm webstranica. Uvjeti jamstva mogu se razlikovati ovisno o regiji.
Služba za korisnike
If you have questions, require technical assistance, or need to order replacement parts, please contact ProForm customer service. Contact details can typically be found on the ProForm webweb-mjestu ili u pakiranju vašeg proizvoda.
