Funsicle 12' x 30" Round Metal Frame Above Ground Pool with SkimmerPlus Filter Pump

Važne sigurnosne informacije

Read and understand all instructions before installing and using this product. Failure to follow these warnings and instructions can result in serious injury or death. This manual contains important information about the installation, operation, and maintenance of your Funsicle above ground pool. Keep this manual for future reference.

• Nadzor odraslih je potreban cijelo vrijeme dok su djeca u bazenu ili u blizini.
• Never dive or jump into the pool. The pool depth is 30 inches, which is not suitable for diving.
• Ensure the pool is set up on a level surface to prevent structural failure and water spillage.
• Držite djecu podalje od filter pumpe i električnih priključaka.
• Nemojte sjediti, stajati ili se penjati na okvir bazena.

Sadržaj paketa

Prije početka montaže provjerite jesu li sve komponente prisutne:

• Round Pool Liner (12 ft diameter, 30 inches tall)
• Metal Frame Poles and Connectors
• SkimmerPlus SFX330 Filter Pump (110-120V)
• Type I Filter Cartridge
• Crijeva i Clamps for Pump Connection
• Odvodni čep

Upute za postavljanje

Follow these steps for proper pool assembly and installation:

1. Priprema mjesta: Choose a firm, level surface free of debris. Lay a ground cloth or tarp (not included) to protect the pool liner.
2. Sklop okvira: Assemble the metal frame poles by snapping them into place with the provided lock pins. Ensure all connections are secure.
3. Ugradnja obloge: Carefully spread the durable 3-ply ToughMesh pool liner within the assembled frame. Ensure the drain plug is securely closed.
4. Partial Filling: Begin filling the pool with water. As the water level rises, smooth out any wrinkles in the bottom of the liner.
5. SkimmerPlus Filter Pump Installation: Attach the SkimmerPlus SFX330 filter pump to the sidewall of the pool according to the pump's specific instructions. Ensure all hoses are securely connected and clamps su zategnuti.
6. Potpuno punjenje: Continue filling the pool to the recommended water level, typically just below the top rail.

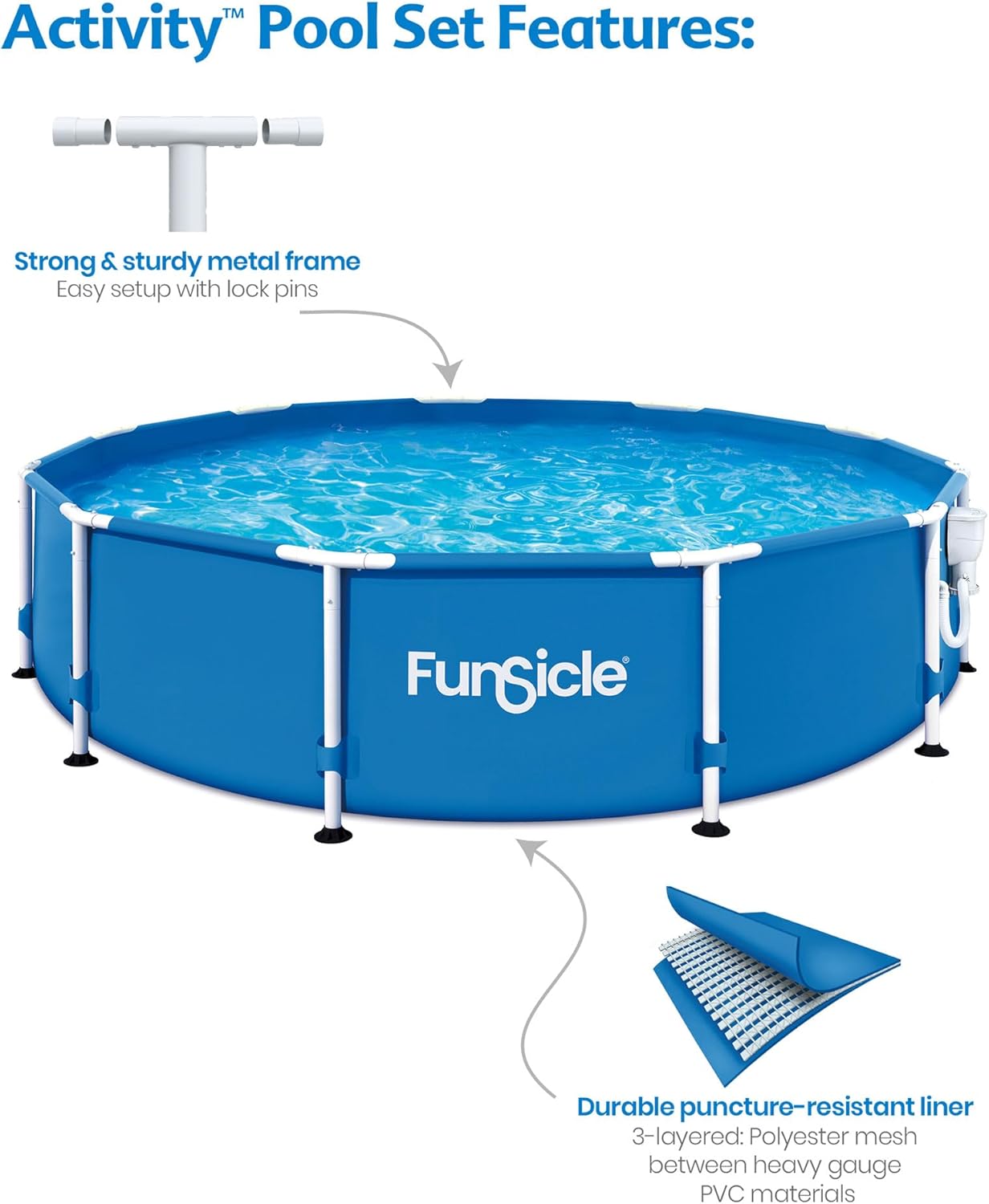

Slika: Prekoview of the Funsicle pool highlighting its strong metal frame and durable liner construction.

Image: Detail of the snap-in-place metal frame poles for easy assembly.

Operating the SkimmerPlus Filter Pump

The SkimmerPlus SFX330 filter pump is designed to keep your pool water clean and clear. It combines a skimmer and a filter pump into one unit.

• The skimmer basket collects larger debris such as leaves and insects from the water surface.
• The Type I filter cartridge captures small particles as water passes through the pump.
• The pump features an automatic timer to operate for a set duration, ensuring consistent filtration without manual intervention.

Slika: Interna view of the SkimmerPlus pump showing debris collection and filtration process.

Image: The SkimmerPlus filter pump and a Type I replacement filter cartridge.

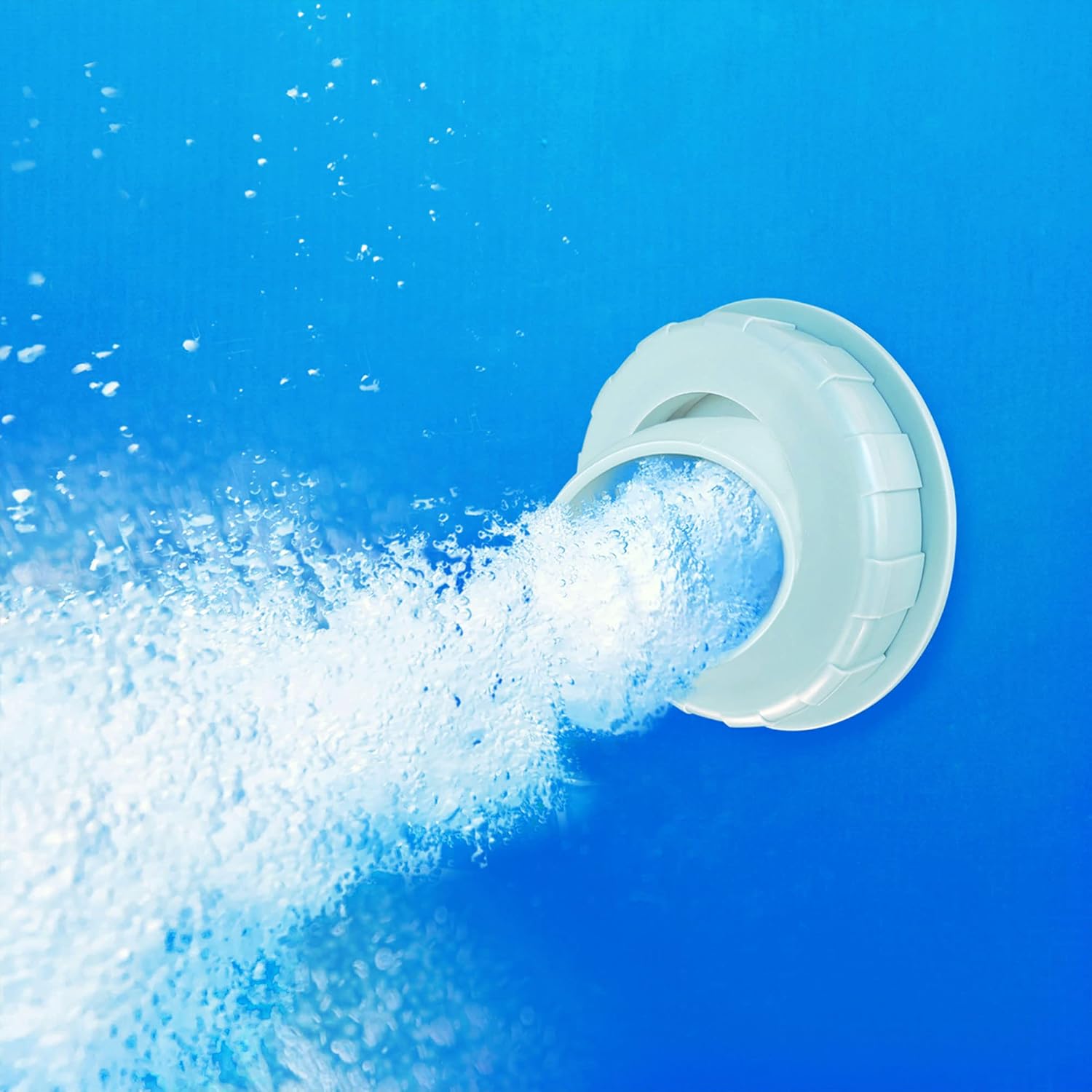

Image: Clean, filtered water returning to the pool.

Održavanje

Redovito održavanje ključno je za produljenje vijeka trajanja vašeg bazena i osiguranje čiste vode.

• Čišćenje/zamjena filter uloška: The Type I filter cartridge should be rinsed daily with a power hose to remove debris. Replace the cartridge every two weeks or sooner if heavily soiled.
• Skimmer Basket Cleaning: Periodically empty the skimmer basket to ensure optimal debris collection.
• Kemija vode: Regularly test and adjust pool water chemistry (pH, chlorine levels) using appropriate pool chemicals (not included) to prevent algae growth and maintain water quality.
• Pražnjenje bazena: When preparing to store the pool, use the 2-in-1 drainage plug located at the bottom of the pool liner. Unscrew the cap to allow water to drain easily.

Image: The 2-in-1 drainage plug for convenient water removal.

Rješavanje problema

If you encounter issues with your Funsicle pool, refer to the following common problems and solutions:

• Weak Pump Flow: Ensure the filter cartridge is clean and free of debris. Check for any blockages in the hoses or skimmer basket. Verify the pump is properly connected and receiving power.
• Curenje vode: Inspect the pool liner for any punctures or tears. Check all hose connections and the drainage plug for tightness. Ensure the pool is on a level surface, as uneven ground can stress the liner and frame, potentially causing leaks.
• Mutna voda: This often indicates insufficient filtration or improper water chemistry. Clean or replace the filter cartridge, ensure the pump runs for adequate periods, and test/adjust water chemical levels.

Tehnički podaci

Jamstvo i podrška

Your Funsicle pool, pump, and ladder are covered by a 1-godišnje jamstvo proizvođača od datuma kupnje. Molimo sačuvajte dokaz o kupnji za potrebe jamstvenog zahtjeva.

For customer service, technical support, or warranty inquiries, please contact Funsicle directly:

• Telefon: (888) 870-4388
• Webstranica: support.funsicle.com

Image: Funsicle Customer Service contact details.
