Upute za uporabu analizatora kože i dlaka vlasišta Dioche (model Diochednq497xva3)

1. Uvod

The Dioche Skin Scalp Hair Analyzer is a versatile USB digital microscope designed for detailed observation of skin, scalp, and hair conditions. With its high magnification and LED illumination, it provides clear images for analysis, making it suitable for personal use or professional settings like beauty salons.

Ključne značajke uključuju:

• Scalp Detection: Specifically designed to observe scalp conditions, offering LED light source and up to 500X magnification.
• Multifunkcionalnost: Allows for detailed examination of scalp, hair, and skin. Can also be used for other magnified observations such as porcelain, stamps, and textiles.
• Kompaktna veličina: Lightweight and portable, functioning as a convenient handheld microscope.
• Accurate Results: Delivers high-resolution, clear images for easy assessment and scientific test results.
• Profesionalna upotreba: Ideal for analyzing hair damage and recommending appropriate products in salon environments.

2. Proizvod je gotovview

The Dioche Skin Scalp Hair Analyzer is a USB-connected digital microscope. It features adjustable magnification and built-in LED lighting to illuminate the subject for clear viewing.

Figure 2.1: The Dioche Skin Scalp Hair Analyzer connected via USB, mounted on its adjustable stand.

The device includes a focus roller for adjusting image clarity, a button for capturing images, and a control for LED light brightness. It connects to a computer via a USB cable.

Figure 2.2: All components of the Dioche Skin Scalp Hair Analyzer package, including the microscope, stand, USB adapters, and calibration ruler.

3. Sadržaj paketa

Molimo provjerite jesu li svi artikli prisutni u vašem paketu:

• 1 x Skin Hair Detector (USB Microscope)
• 1 x Bracket (Adjustable Stand)
• 1 x CD (Software Driver)
• 1 x Micro USB Port Adapter
• 1 x Type C Port Adapter
• 1 x Corrective Ruler (Calibration Ruler)

4. Zahtjevi sustava

To use the Dioche Skin Scalp Hair Analyzer, your computer must meet the following specifications:

• Port Support: USB 3.0, USB 2.0, or USB 1.1
• Podržani operativni sustavi: For WINDOWS XP, VISTA, 7, 8, 10 (both 32-bit and 64-bit versions)

5. Upute za postavljanje

Follow these steps to set up your Dioche Skin Scalp Hair Analyzer:

1. Instaliraj softver: Insert the provided CD into your computer's CD drive and install the camera tool software. If your computer does not have a CD drive, you may need to download the software from the manufacturer's webweb mjesto (ako je dostupno).
2. Povežite uređaj: Connect the USB microscope to an available USB port on your computer. Use the appropriate Micro USB or Type C adapter if necessary.
3. Open Software: Launch the installed camera tool software.
4. Odaberite uređaj: Within the camera tool software, navigate to the 'Device' or 'Camera Selection' option and select the connected USB microscope as the observation camera.

6. Upute za rad

Once the device is set up and recognized by the software, you can begin observation:

1. Position Object: Aim the lens of the USB microscope at the object you wish to examine (e.g., scalp, hair, skin).
2. Podešavanje fokusa: Slowly rotate the focus roller on the microscope until a clear image appears on your computer screen. Note that different distances between the lens and the object will result in varying magnifications.
3. Kontrolna LED rasvjeta: Use the light brightness control on the device to adjust the intensity of the 8 built-in LED lights for optimal illumination.
4. Capture Images/Video: Utilize the camera tool software to take photos or record videos of your observations. The device also has a dedicated button for capturing pictures.

Slika 6.1: Npramples of magnified views, showing a circuit board and hair follicles, demonstrating the device's capability.

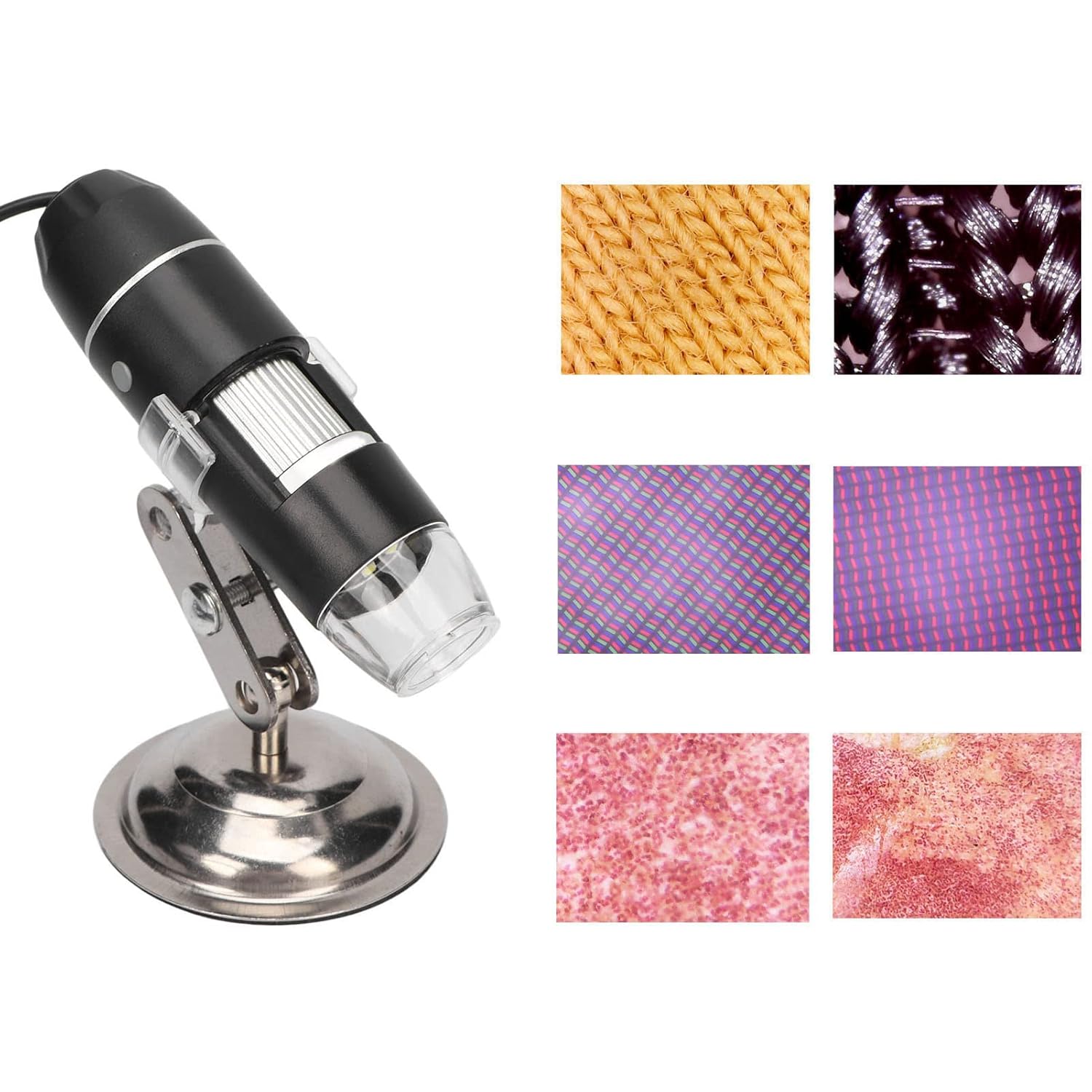

Slika 6.2: Daljnji primjeramples of magnified views, illustrating fabric texture and skin cells under observation.

7. Održavanje i njega

To ensure the longevity and proper functioning of your Dioche Skin Scalp Hair Analyzer, please observe the following guidelines:

• Nemojte rastavljati: Avoid disassembling the product to prevent electrostatic breakdown of the sensitive internal components.
• Čišćenje: Do not use organic solvents for cleaning. Use a soft, dry cloth for external cleaning.
• Njega leća: Do not touch the lens with your fingers to prevent scratches and dirt accumulation on the surface. Use a lens cleaning cloth if necessary.
• Uvjeti okoliša: When used outdoors, avoid high temperatures and high humidity to prevent short circuits in electronic devices. This product is not waterproof; avoid exposure to rain and water.
• Strana stvar: If any foreign matter or liquid enters the product, immediately disconnect the USB cable and send the device to a qualified maintenance center for repair. Do not attempt to repair it yourself.

8. Rješavanje problema

If you encounter issues with your Dioche Skin Scalp Hair Analyzer, please refer to the following common solutions:

• Nema slike na ekranu:
  • Ensure the USB cable is securely connected to both the microscope and the computer.
  • Verify that the camera tool software is open and the correct device is selected.
  • Check your computer's device manager to confirm the microscope is recognized.
• Unclear or Blurry Image:
  • Adjust the focus roller on the microscope slowly until the image becomes clear.
  • Provjerite je li objektiv čist i bez prašine ili mrlja.
  • Adjust the distance between the microscope lens and the object.
• LED svjetla ne rade:
  • Check the light brightness control on the device to ensure it is turned up.
  • Ensure the device is properly connected and receiving power via USB.
• Softver ne prepoznaje uređaj:
  • Reinstall the camera tool software from the provided CD or manufacturer's webmjesto.
  • Pokušajte spojiti uređaj na drugi USB priključak na računalu.
  • Ensure your operating system is compatible (Windows XP/Vista/7/8/10).

9. Specifikacije

10. Jamstvo i podrška

For warranty information and customer support, please refer to the documentation included with your purchase or contact Dioche customer service directly. Keep your proof of purchase for any warranty claims.

Za dodatnu pomoć posjetite Dioche Store on Amazon.
