UWANT M300 Mattress Vacuum Cleaner User Manual

Uvod

The UWANT M300 Mattress Vacuum Cleaner is designed to provide a deep and thorough cleaning for your mattresses, sofas, and other fabric surfaces. Featuring powerful suction, UV sterilization, and a patented dual-cup design, it effectively removes dust mites, allergens, and fine dust particles, contributing to a healthier living environment. This manual provides essential information on the safe operation, maintenance, and troubleshooting of your UWANT M300.

Sigurnosne informacije

Prije upotrebe uređaja pažljivo pročitajte sve sigurnosne upute. Nepoštivanje ovih uputa može uzrokovati strujni udar, požar ili ozbiljne ozljede.

• Nemojte koristiti uređaj na otvorenom ili na mokrim površinama.
• Ne dopustite da se koristi kao igračka. Potrebna je velika pažnja kada se koristi od strane djece ili u blizini djece.
• Koristite samo kako je opisano u ovom priručniku. Koristite samo nastavke koje preporučuje proizvođač.
• Ne koristite s oštećenim kabelom ili utikačem. Ako uređaj ne radi kako bi trebao, ispušten je, oštećen, ostavljen na otvorenom ili u vodu, vratite ga u servisni centar.
• Nemojte vući ili nositi za kabel, koristiti kabel kao ručku, zatvarati vrata na kabelu ili povlačiti kabel oko oštrih rubova ili uglova. Ne prelazite uređajem preko kabela. Držite kabel dalje od zagrijanih površina.
• Ne isključujte utikač povlačenjem za kabel. Za isključivanje, uhvatite utikač, a ne kabel.
• Nemojte rukovati utikačem ili uređajem mokrim rukama.
• Ne stavljajte nikakve predmete u otvore. Nemojte koristiti sa začepljenim otvorima; čistite od prašine, dlačica, dlaka i svega što može smanjiti protok zraka.
• Držite kosu, široku odjeću, prste i sve dijelove tijela dalje od otvora i pokretnih dijelova.
• Isključite sve kontrole prije isključivanja.
• Budite posebno pažljivi kada čistite stepenice.
• Nemojte koristiti za skupljanje zapaljivih ili zapaljivih tekućina, poput benzina, ili koristiti u područjima gdje bi mogle biti prisutne.
• Ne skupljajte ništa što gori ili se dimi, poput cigareta, šibica ili vrućeg pepela.
• Nemojte koristiti bez posude za prašinu i/ili filtera na mjestu.
• UV lamp emits ultraviolet radiation. Avoid direct exposure to eyes and skin. The UV lamp automatically turns off when lifted from the surface.

Proizvod gotovview

Familiarize yourself with the components of your UWANT M300 Mattress Vacuum Cleaner.

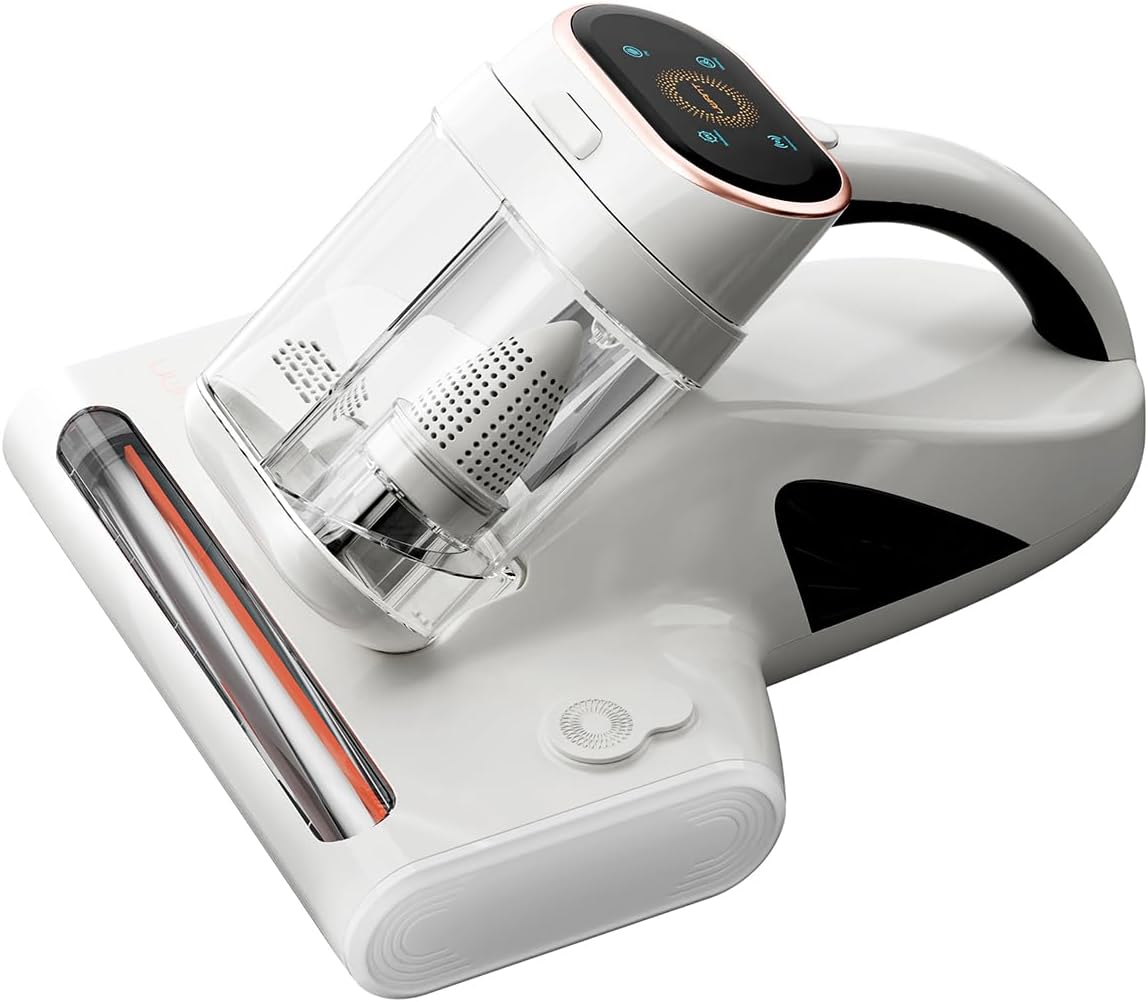

Figure 1: UWANT M300 Main Unit. This image displays the overall design of the vacuum cleaner, highlighting its compact form factor and the clear dust collection bins.

Slika 2: Vrh View with LED Display and Dual-Cup System. This image provides a closer look at the control panel with its intelligent LED display and the innovative dual-cup design for separate filtering and dust collection.

Slika 3: Donja strana View. This image shows the bottom of the UWANT M300, revealing the UV sterilization lamp and the roller brush mechanism.

• Glavna jedinica: Sadrži motor, bateriju i upravljačku ploču.
• Dust Collection Cups: Patented dual-cup design for filtering and dust storage.
• HEPA filtar: High-efficiency particulate air filter for trapping fine dust.
• UV Sterilization Lamp: Located on the underside, for eliminating bacteria and mites.
• Vibration Pad/Roller Brush: For dislodging dust mites from deep within fabrics.
• LED Intelligent Display Panel: Shows dust mite levels, ambient humidity, and operating status.
• Gumb za napajanje: Za uključivanje/isključivanje uređaja.

Postavljanje

1. Raspakiranje

Carefully remove all components from the packaging. Retain the packaging for future storage or transport if needed. Ensure all parts listed in the "Product Overview"odjeljci su prisutni i neoštećeni.

2. Početno punjenje

Before first use, fully charge the UWANT M300. Connect the power adapter to the charging port on the device and plug it into a suitable power outlet. The LED display will indicate charging status. A full charge typically takes approximately 3-4 hours.

3. Filter Installation (if not pre-installed)

Ensure the HEPA filter and dust collection cups are correctly installed before operation. Refer to the "Maintenance" section for details on how to access and install these components.

Upute za rad

1. Uključivanje/isključivanje

Press the power button located on the handle to turn the device on. Press it again to turn off. The LED display will illuminate upon activation.

2. Understanding the LED Display

The intelligent LED display panel provides real-time information:

• Dust Mite Level Indicator: Shows the concentration of dust mites detected, helping you identify areas needing more attention.
• Ambient Humidity Display: Provides real-time humidity readings.
• Indikator baterije: Prikazuje preostalo trajanje baterije.
• Indikatori načina rada: Shows active functions (e.g., UV, vibration, suction).

3. Cleaning Operation

Place the vacuum cleaner flat on the surface you wish to clean. The UV lamp will automatically activate when the unit is placed on a surface and deactivate when lifted to ensure safety. Move the cleaner slowly and steadily across the surface to allow the vibration, suction, and UV functions to work effectively.

Figure 4: Cleaning a Mattress. This image demonstrates the UWANT M300 being used on a mattress, illustrating the vibration function that helps dislodge deeply embedded dust and mites.

Figure 5: Powerful Suction. This diagram visually represents the 13Kpa suction power of the M300, showing how it extracts dust mites and allergens from deep within fabric surfaces.

Figure 6: UV Sterilization. This image illustrates the effective UV sterilization function, demonstrating how the UV light eliminates 99.99% of allergens, bacteria, and mites on the cleaned surface.

Figure 7: Wide Suction Mouth. This image highlights the 23cm wide suction mouth of the M300, indicating its efficiency in covering larger areas quickly.

The M300 is suitable for various surfaces including beds, sofas, toys, and carpets. Its strong vibration force (12,000 times/min) and 13Kpa suction power ensure deep cleaning, reaching up to 20 inches into fabrics.

Održavanje

Regular maintenance ensures optimal performance and extends the lifespan of your UWANT M300.

1. Emptying Dust Collection Cups

The UWANT M300 features a patented dual-cup design, separating filtering from dust storage. Empty the dust storage cup regularly, especially when the "Dust Mite Level Indicator" on the LED display shows high levels or when the cup appears full. To empty, detach the dust cup assembly from the main unit, open the designated compartment, and dispose of the collected dust. The cups are detachable and washable.

2. Filteri za čišćenje

The HEPA filter and other filter components should be cleaned regularly to maintain suction efficiency. Detach the filter cup and carefully remove the HEPA filter. Tap the filter gently to remove loose dust. For a more thorough clean, the filter and other washable parts can be rinsed under running water. Ensure all parts are completely dry before reassembling them into the unit. Do not use the appliance with wet filters.

3. UV Lamp Održavanje

Povremeno obrišite UV lamp surface with a soft, dry cloth to ensure optimal sterilization performance. Do not use water or cleaning solutions directly on the UV lamp.

4. Skladištenje

When not in use, store the UWANT M300 in a cool, dry place, away from direct sunlight and moisture. Ensure the battery is partially charged if storing for extended periods.

Rješavanje problema

Tehnički podaci

Jamstvo i podrška

The UWANT M300 Mattress Vacuum Cleaner comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact UWANT customer service. Contact information can typically be found on the official UWANT webmjestu ili na pakiranju proizvoda.

Napomena: Sačuvajte račun kao dokaz o kupnji u svrhu jamstva.
