waveshare Multi-Functional Mini-Computer Kit for Raspberry Pi 5 User Manual

1. Uvod

This manual provides detailed instructions for the assembly, operation, and maintenance of the waveshare Multi-Functional Mini-Computer Kit for Raspberry Pi 5. This kit is designed to transform your Raspberry Pi 5 into a robust mini-computer with enhanced expandability and efficient heat dissipation.

Please read this manual thoroughly before beginning assembly to ensure correct installation and optimal performance of your device.

2. Proizvod je gotovview i značajke

The waveshare Mini-Computer Kit for Raspberry Pi 5 is an all-in-one solution featuring an aluminum alloy case, a Pi5 HDMI and Type-C adapter, and a PCIe to M.2 board. It offers significant internal space for expansion and efficient thermal management.

Figure 2.1: Assembled waveshare Mini-Computer Kit for Raspberry Pi 5. This image shows the complete black aluminum alloy case with various ports visible on the front panel, including USB, Ethernet, and HDMI.

Ključne karakteristike:

• All-in-one Mini-Computer Kit: Designed specifically for Raspberry Pi 5 (Raspberry Pi 5 not included), providing a compact and functional enclosure.
• Enhanced Expandability: Features larger internal space to support various HATs (Hardware Attached on Top) such as PoE HATs, and includes space for cable management.
• PCIe to M.2 Interface: The Pi5 Module BOX-C supports PCIe extension to an M.2 interface, enabling the use of M.2 Solid State Drives for faster storage.
• Integrated HDMI and Type-C Adapter: Includes an adapter with dual HDMI female ports and a Type-C port for convenient peripheral connections. Supports two power supply connection methods (front or back).
• Učinkovita disipacija topline: Reserved airflow vents and support for an optional cooling fan ensure optimal thermal performance for the Raspberry Pi 5.
• Izdržljiva konstrukcija: Made with an aluminum alloy case and white aluminum alloy base plate for robust protection.

Slika 2.2: Gotovoview of the Mini-Computer Kit for Raspberry Pi 5. This image highlights the kit's purpose as a mini-computer solution for the Raspberry Pi 5, emphasizing its expandability and rich interfaces.

Figure 2.3: Pi5 HDMI and Type-C Adapter details. This image illustrates the included adapter board, showing its Type-C and dual HDMI female ports, and how it connects to the Raspberry Pi 5.

Slika 2.4: Detaljno view of the Pi5 Module BOX-C. This image provides an annotated diagram of the kit's components, including the Type-C port, HDMI ports, Gigabit Ethernet, USB 2.0 and 3.2 ports, internal PCIe to M.2 adapter, M.2 slot, 16PIN PCIe connector, power inputs, and UART debugging connector.

Figure 2.5: Internal space and expandability. This image shows the internal dimensions of the case, indicating ample room for the Raspberry Pi 5 and additional HATs, with measurements in millimeters.

Figure 2.6: Airflow vents for efficient heat dissipation. This image illustrates the design of the case with reserved vents to facilitate airflow and support for an optional cooling fan.

Figure 2.7: Dual 4K output capability. This image demonstrates the kit's ability to support dual 4K displays, showcasing two monitors connected to the system.

3. Sadržaj paketa

Please verify that all items listed below are present in your package. If any items are missing or damaged, please contact customer support.

• Pi5 HDMI and Type-C adapter x1
• PCIe TO M.2 Board x1
• Metal case and white aluminum alloy base plate x1
• Silicone button x1
• M.2 Solid State Drive fixed screw x1
• PCIe cable x1
• Screw terminal x1
• Paket vijaka x1
• SH1.0 3PIN cable x1
• SH1.0 3PIN squid cable x1
• PH2.0 3PIN cable x1

Note: Raspberry Pi 5 board is NOT included in this kit and must be purchased separately.

4. Postavljanje i instalacija

Follow these steps carefully to assemble your waveshare Mini-Computer Kit with the Raspberry Pi 5.

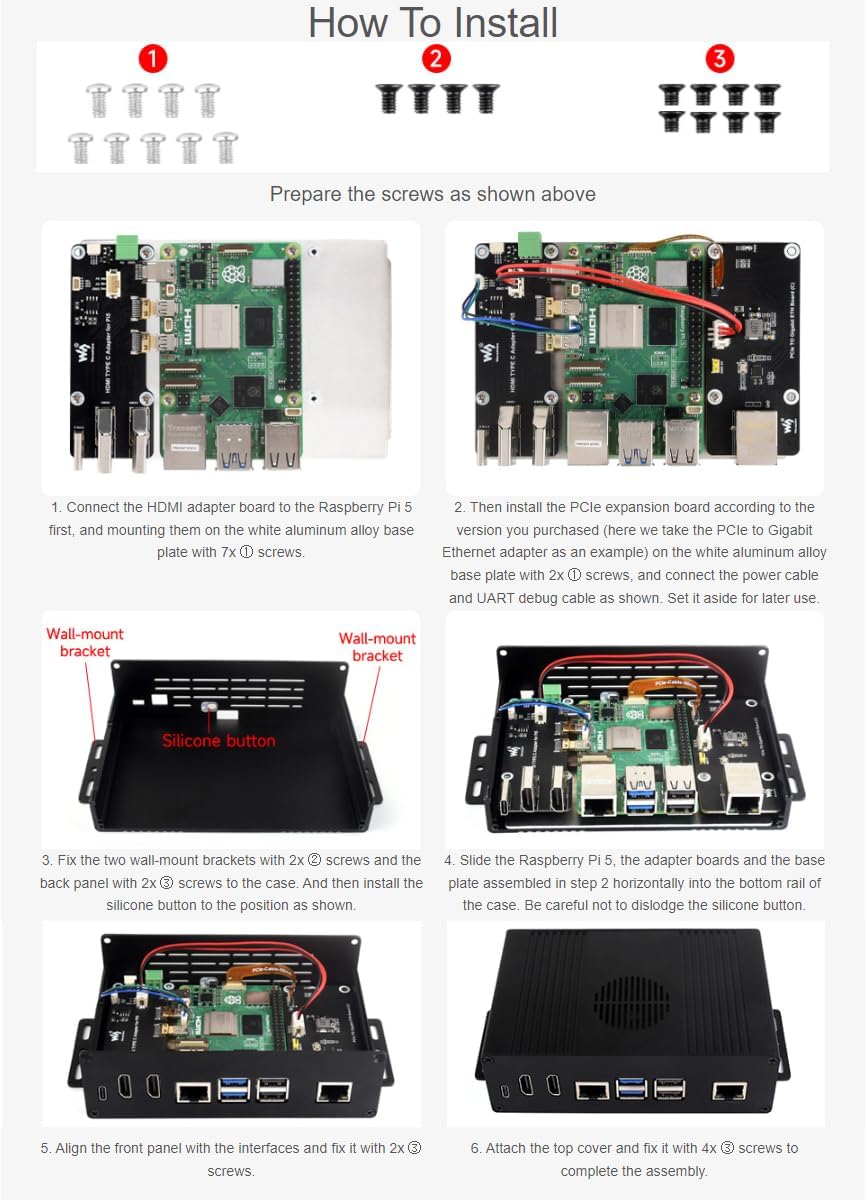

Figure 4.1: Step-by-step installation guide. This image provides a visual walkthrough of the assembly process, showing the components and screw types required for each stage.

Koraci instalacije:

1. Prepare Screws: Organize the screws as shown in Figure 4.1 (top section) for easy access during assembly.
2. Connect HDMI Adapter: Connect the HDMI adapter board to the Raspberry Pi 5 first. Then, mount them onto the white aluminum alloy base plate using 7x ① screws.
3. Install PCIe Expansion Board: Install the PCIe expansion board according to the version you purchased. For example, if using the PCIe to Gigabit Ethernet adapter, connect it to the white aluminum alloy base plate with 2x ② screws. Connect the power cable and UART debug cable as shown in Figure 4.1. Set it aside for later use.
4. Attach Wall-Mount Brackets: Fix the two wall-mount brackets with 2x ② screws and the back panel with 2x ③ screws to the case. Then, install the silicone button into its designated position.
5. Slide Raspberry Pi Assembly: Carefully slide the Raspberry Pi 5, adapter boards, and the base plate assembly (from step 2) horizontally into the bottom rail of the case. Exercise caution to avoid dislodging the silicone button.
6. Align Front Panel: Align the front panel with the interfaces and fix it with 2x ① screws.
7. Attach Top Cover: Attach the top cover and fix it with 4x ③ screws to complete the assembly.

Ensure all connections are secure and screws are tightened appropriately, but do not overtighten.

5. Upute za rad

Once assembled, your waveshare Mini-Computer Kit with Raspberry Pi 5 is ready for operation. The kit enhances the functionality and connectivity of your Raspberry Pi 5.

Uključivanje:

• Connect a compatible 5V power supply to the Type-C port on the front panel or the screw terminal on the back panel, as per your preference.
• Ensure all peripherals (monitor, keyboard, mouse) are connected before powering on.
• The Raspberry Pi 5 will boot up according to its configured operating system (e.g., Raspberry Pi OS).

Povezivost:

• HDMI: Utilize the dual HDMI ports for connecting up to two displays, supporting resolutions up to 4K.
• USB: The front panel provides USB 2.0 and USB 3.2 ports for connecting various USB devices.
• Ethernet: Connect to a wired network using the Gigabit Ethernet port.
• M.2 SSD: If an M.2 SSD is installed via the PCIe to M.2 board, configure your Raspberry Pi 5 to boot from or utilize the SSD for storage, significantly improving data transfer speeds.
• HATs: The internal space allows for the installation of various Raspberry Pi HATs, expanding functionality such as Power over Ethernet (PoE) or other custom applications.

6. Održavanje

To ensure the longevity and optimal performance of your waveshare Mini-Computer Kit, follow these maintenance guidelines:

• Čišćenje: Periodically clean the exterior of the case with a soft, dry cloth. Avoid using liquid cleaners directly on the case or near ports.
• Uklanjanje prašine: Use compressed air to gently clear dust from the airflow vents and internal components. Ensure the device is powered off and disconnected from power before cleaning.
• Ventilacija: Ensure the case's airflow vents are not obstructed to maintain proper heat dissipation.
• Uvjeti okoliša: Operate the kit in a well-ventilated area, away from direct sunlight, excessive heat, humidity, and dust.
• Firmware/OS Updates: Regularly update the Raspberry Pi OS and any relevant firmware for connected HATs or components to ensure stability and security.

7. Rješavanje problema

If you encounter issues with your waveshare Mini-Computer Kit, refer to the following common troubleshooting steps:

• No Power/Boot:
  • Verify the power supply is correctly connected and providing sufficient voltage (5 V).
  • Ensure the Raspberry Pi 5 is properly seated and all internal cables (e.g., PCIe cable) are securely connected.
  • Check the power button connection if applicable.
• Nema izlaza za prikaz:
  • Confirm HDMI cables are securely connected to both the kit and the monitor.
  • Test with a different HDMI cable or monitor if possible.
  • Ensure the Raspberry Pi 5 is booting correctly (check activity LEDs).
• M.2 SSD nije otkriven:
  • Ensure the M.2 SSD is correctly installed in the M.2 slot and the fixed screw is in place.
  • Verify the PCIe cable connecting the M.2 board to the Raspberry Pi 5 is secure.
  • Check Raspberry Pi OS documentation for M.2 SSD setup and booting instructions.
• Pregrijavanje:
  • Ensure the case's ventilation holes are not blocked.
  • Consider installing an optional cooling fan if temperatures remain high under load.
  • Reduce the workload on the Raspberry Pi 5 if necessary.

For further assistance, please refer to the official Raspberry Pi documentation or contact waveshare customer support.

8. Specifikacije

Below are the technical specifications for the waveshare Mini-Computer Kit (Model: Pi 5 BOX C).

Figure 8.1: Outline dimensions of the waveshare Mini-Computer Kit. This technical drawing provides precise measurements of the assembled case in millimeters.

9. Jamstvo i podrška

This waveshare product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official waveshare webmjesto.

For technical support, troubleshooting assistance, or inquiries regarding replacement parts, please contact waveshare customer service through their official channels. When contacting support, please have your product model number (Pi 5 BOX C) and purchase information readily available.

Mrežni resursi:

• Official waveshare Webstranica: www.waveshare.com
• Raspberry Pi Documentation: www.raspberrypi.com/documentation/
