1. Uvod
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your Cooking Performance Group 351302130427 Natural Gas Pilot. This pilot is designed as a replacement component for select Cooking Performance Group natural gas ranges, ensuring consistent and reliable ignition.
Molimo vas da pažljivo pročitate ovaj priručnik prije bilo kakvih postupaka instalacije ili održavanja. Sačuvajte ovaj priručnik za buduću upotrebu.
2. Sigurnosne informacije
- Sigurnost plina: Installation and service must be performed by a qualified installer, service agency, or gas supplier. Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death.
- Odspojite napajanje: Always disconnect the appliance from its power source and shut off the gas supply before performing any service or maintenance.
- Ventilacija: Ensure adequate ventilation in the work area when dealing with gas appliances.
- Ispitivanje curenja: After any gas connection is made, always check for gas leaks using a non-corrosive leak detection solution. Never use an open flame to check for leaks.
- Originalni dijelovi: Use only genuine replacement parts specified by the manufacturer.
3. Postavljanje i instalacija
The 351302130427 Natural Gas Pilot is designed for straightforward replacement in compatible Cooking Performance Group natural gas ranges. Ensure the appliance is cool and the gas supply is off before beginning.
3.1. Potrebni alati
- Adjustable wrench or appropriate size open-end wrench
- Screwdriver (if mounting screws are present)
- Rješenje za otkrivanje curenja
3.2. Koraci instalacije
- Pripremite uređaj: Turn off the gas supply to the range and disconnect the appliance from any electrical power. Allow the appliance to cool completely.
- Access the Pilot Assembly: Depending on your specific range model, you may need to remove grates, burner heads, or access panels to reach the existing pilot assembly.
- Remove Old Pilot: Carefully disconnect the gas line and any thermocouple or igniter wires from the old pilot assembly. Unscrew or unmount the old pilot from its bracket. Note the orientation for correct installation of the new pilot.
- Install New Pilot: Position the new Cooking Performance Group 351302130427 Natural Gas Pilot in the same orientation as the old one. Secure it to the mounting bracket using the appropriate fasteners.
- Spojite komponente: Reconnect the gas line to the pilot assembly. Ensure all connections are tight but do not overtighten. Reconnect any thermocouple or igniter wires.
- Provjerite ima li curenja: Turn on the main gas supply. Apply a leak detection solution to all new gas connections. Bubbles indicate a leak. If a leak is detected, turn off the gas supply immediately, tighten the connection, and retest. Repeat until no leaks are present.
- Vratite napajanje i testirajte: Reconnect electrical power to the range. Follow your range's instructions to light the pilot and test burner operation.

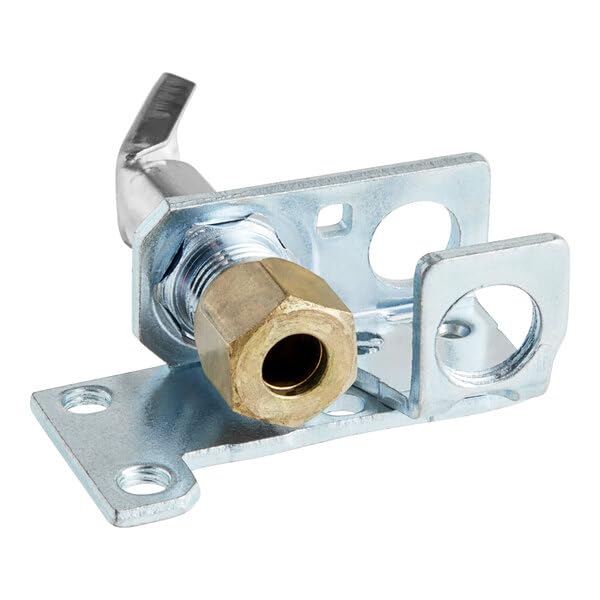

An image showing the Cooking Performance Group 351302130427 Natural Gas Pilot. The pilot assembly features a galvanized metal bracket with mounting holes, a brass hexagonal fitting, and a chrome-plated pilot head with a flame spreader.
4. Upute za rad
Once properly installed and tested, the natural gas pilot operates automatically with your range's ignition system. Its primary function is to provide a continuous small flame that ignites the main burner when the control knob is turned on.
- Plamičak: The pilot light should remain consistently lit when the gas supply to the range is active. This ensures that the main burners can be ignited instantly when needed.
- Paljenje: When a burner control knob is turned to the 'ON' position, gas flows to the main burner and is ignited by the adjacent pilot flame.
- Praćenje plamena: The pilot assembly often includes a thermocouple or thermopile that senses the pilot flame. If the pilot flame goes out, this safety device will shut off the gas supply to prevent unignited gas from accumulating.
5. Održavanje
Regular inspection and maintenance of the pilot assembly are crucial for ensuring the safety and efficiency of your natural gas range.
- Vizualni pregled: Periodically inspect the pilot flame. It should be a steady, blue flame. A weak, yellow, or flickering flame may indicate a problem.
- Čišćenje: Ensure the pilot opening and surrounding area are free from grease, food debris, or carbon buildup. Use a soft brush or compressed air to gently clear any obstructions. Do not use sharp objects that could damage the pilot orifice.
- Thermocouple/Thermopile Check: Ensure the tip of the thermocouple or thermopile is properly positioned within the pilot flame. A loose or misaligned sensor can cause the pilot to go out or fail to ignite the main burner.
- Zamjena: If the pilot assembly shows signs of significant wear, corrosion, or consistent malfunction despite cleaning, it should be replaced by a qualified technician.
6. Rješavanje problema
If you encounter issues with your natural gas pilot, refer to the following common problems and solutions:
- Pilot Will Not Light:
- Nema opskrbe plinom: Check if the main gas valve to the appliance is open.
- Clogged Pilot Orifice: Clean the pilot opening as described in the Maintenance section.
- Faulty Igniter/Thermocouple: If applicable, the igniter or thermocouple may be faulty and require replacement.
- Pilot Lights But Goes Out:
- Weak Pilot Flame: The flame may be too small or weak to properly heat the thermocouple/thermopile. Adjust if possible, or clean the orifice.
- Misaligned Thermocouple: Ensure the thermocouple tip is fully enveloped by the pilot flame.
- Faulty Thermocouple/Thermopile: The safety device may be failing and needs replacement.
- Nacrti: Strong drafts in the kitchen area can extinguish the pilot.
- Pilot Lights But Main Burner Does Not Ignite:
- Pilot Flame Too Small/Misdirected: The pilot flame may not be large enough or positioned correctly to ignite the main burner gas.
- Clogged Main Burner Orifice: The main burner orifice may be partially or fully blocked.
Ako koraci za rješavanje problema ne riješe problem, obratite se kvalificiranom serviseru.
7. Specifikacije
| Značajka | Detalj |
|---|---|
| Broj modela | 351302130427 |
| Marka | Grupa za kuhanje |
| Tip | Natural Gas Pilot |
| Kompatibilnost | Select Cooking Performance Group natural gas ranges |
| Dimenzije paketa | 2 x 2 x 1 inča |
| Težina artikla | 3.2 unci |
| Datum prve dostupnosti | 16. kolovoza 2024 |
8. Informacije o jamstvu
For specific warranty details regarding the Cooking Performance Group 351302130427 Natural Gas Pilot, please refer to the documentation provided with your original appliance or contact Cooking Performance Group directly. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.
9. Podrška
If you require further assistance, have questions not covered in this manual, or need to order replacement parts, please contact Cooking Performance Group customer support or your authorized service provider.
When contacting support, please have your appliance model number and the pilot model number (351302130427) readily available.
