Canyon DVR40 Dash Camera User Manual

1. Uvod

The Canyon DVR40 is a dash camera designed to record driving footage. It features a Sony Starvis 415 sensor for 4K video recording, a 140° wide field of view, and a 3-inch IPS capacitive touchscreen. The device includes a supercapacitor for reliable operation and supports Wi-Fi connectivity for control via a mobile application.

Slika 1.1: Prednja strana view of the Canyon DVR40 Dash Camera, showing the lens and branding.

2. Sadržaj paketa

Verify that all items listed below are present in the product packaging.

Image 2.1: All items included in the Canyon DVR40 Dash Camera package.

• Canyon DVR40 Dash Camera
• Kratki vodič za početak
• Jamstveni list
• Accessories for Cable Installation
• Čitač kartica
• Magnetic suction cup holder with a USB Type-C connector
• Car power adapter (2 output connectors USB Type-A)
• Cable USB Type-C (cable length 3.6 m)
• CPL filter
• Cloth for screen cleaning
• Tekstilna torbica

3. Proizvod je gotovview

Familiarize yourself with the main components of the DVR40 dash camera.

Image 3.1: The Canyon DVR40 Dash Camera, highlighting its compact design.

Ključne karakteristike:

• 4K UltraHD Recording: Captures video at 30 frames per second for clear footage.
• Sony Starvis 415 Sensor: Enhances low-light performance with night vision mode.
• 140° Polje od View: Provides wide coverage of the road.
• 3-inch IPS Capacitive Touchscreen: For direct control and playback.
• Superkondenzator: Offers improved durability and temperature resistance compared to traditional batteries.
• Magnetski nosač: Facilitates easy installation and removal with integrated power supply.
• Wi-Fi povezivanje: Allows control and footage management via the Canyon Eye mobile application.
• G-senzor: Automatically detects impacts and locks video files to prevent overwriting.

4. Postavljanje

4.1 Mounting the Dash Camera

The DVR40 uses a magnetic mount for secure attachment to your vehicle's windshield.

1. Clean the area on your windshield where you intend to mount the camera.
2. Attach the magnetic suction cup holder to the windshield. Ensure it is positioned to provide an unobstructed view od ceste.
3. Connect the USB Type-C power cable to the magnetic mount.
4. Align the dash camera with the magnetic mount. The camera will snap into place, establishing the power connection.

Image 4.1: The magnetic mount with integrated power supply for easy installation.

4.2 Priključak za napajanje

Use the provided car power adapter and USB Type-C cable to power the dash camera.

1. Plug the car power adapter into your vehicle's 12V power outlet (cigarette lighter socket).
2. Connect the USB Type-C cable from the car power adapter to the magnetic mount.
3. Once the vehicle's ignition is turned on, the dash camera will automatically power on and begin recording.

4.3 Initial Setup and MicroSD Card

Before first use, insert a compatible MicroSD card (not included) and format it.

1. Insert a high-speed MicroSD card (Class 10 or higher, up to 128GB recommended) into the designated slot on the dash camera.
2. Uključite kameru.
3. Access the camera's settings via the touchscreen or the mobile app.
4. Locate the "Format SD Card" option and confirm to format the card. This prepares the card for recording and ensures optimal performance.

5. Upute za rad

5.1 Osnovno snimanje

The DVR40 automatically begins loop recording when powered on.

• Snimanje petlje: The camera records video in segments (e.g., 1, 3, or 5 minutes). When the MicroSD card is full, the oldest unprotected files su prebrisani.
• Ručno snimanje: Press the record button on the camera (if available) or use the mobile app to manually start/stop recording.
• Kvaliteta videa: The camera records in 4K UltraHD at 30 frames per second.

Image 5.1: Visual representation of the DVR40's high-quality video capabilities.

5.2 G-Sensor for Accident Recording

The built-in G-Sensor detects sudden impacts or rapid acceleration/deceleration.

• When an event is detected, the current video segment is automatically locked and saved to a protected folder on the MicroSD card.
• These protected files neće biti prebrisan snimanjem u petlji.
• Adjust the G-Sensor sensitivity in the camera settings if needed.

Image 5.2: Illustration of the G-Sensor's function in accident recording.

5.3 Zaslon osjetljiv na dodir

The 3-inch IPS capacitive touchscreen allows for direct interaction with the camera.

• Navigacija izbornicima, podešavanje postavki i ponovnoview snimljeno footage izravno na uređaju.
• The IPS display offers wide viewing angles and clear visibility.

Image 5.3: The touch screen display in use on the DVR40.

5.4 Wi-Fi and Mobile Application Control

Connect the DVR40 to your smartphone via Wi-Fi using the Canyon Eye mobile application.

1. Download the "Canyon Eye" application from your smartphone's app store.
2. Enable Wi-Fi on the DVR40 through its settings menu.
3. On your smartphone, connect to the DVR40's Wi-Fi network (SSID and password will be displayed on the camera screen).
4. Open the Canyon Eye app. You can now view živi footage, access recorded videos, change settings, and download fileizravno na vaš telefon.

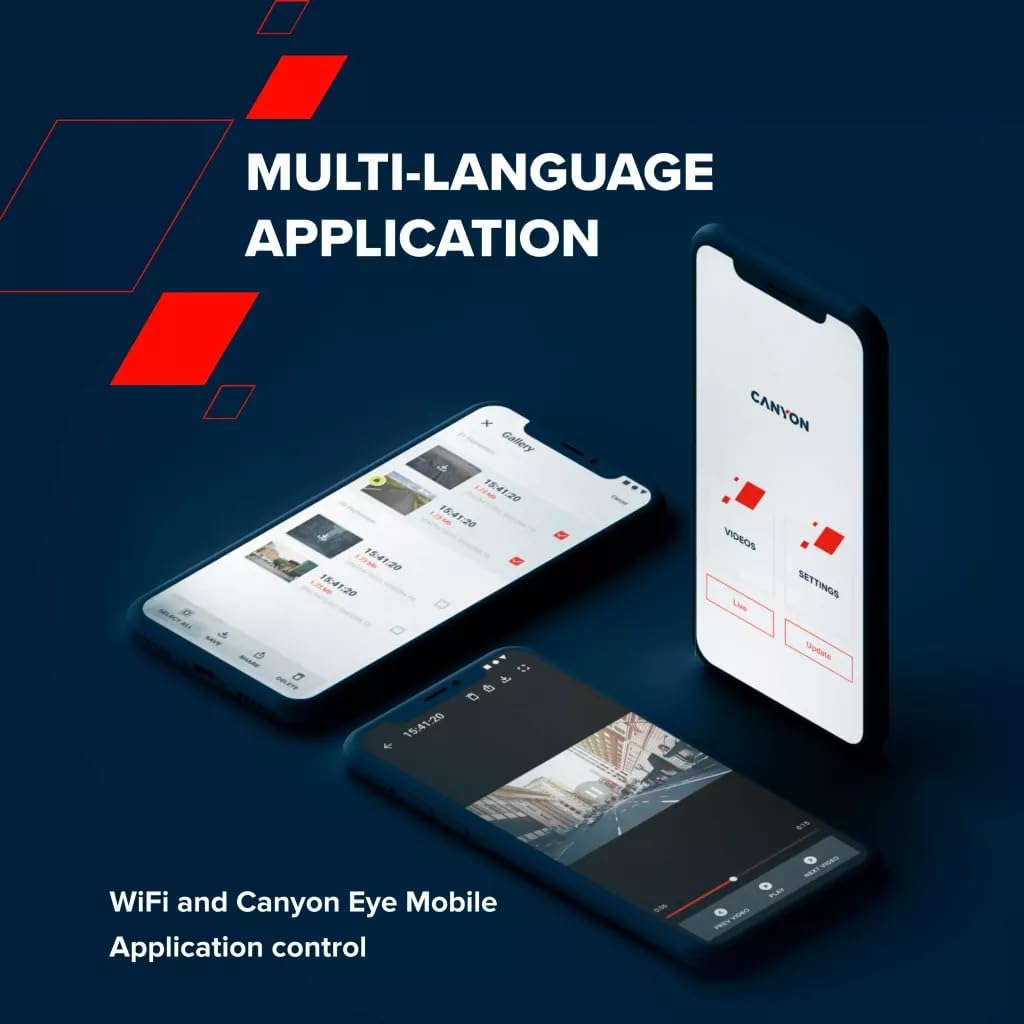

Image 5.4: The Canyon Eye mobile application interface for remote control and file upravljanje.

6. Održavanje

6.1 Superkondenzator

The DVR40 is equipped with a supercapacitor instead of a traditional lithium-ion battery.

• Supercapacitors offer enhanced durability and a wider operating temperature range (-30°C to 80°C).
• They are less prone to overheating and have a longer lifespan, making them suitable for automotive environments.
• The supercapacitor provides enough power to safely save the last recording when external power is disconnected.

Image 6.1: The DVR40's supercapacitor ensures reliable operation across a wide temperature range.

6.2 Čišćenje i skladištenje

• Use the provided cleaning cloth to gently wipe the screen and lens. Avoid abrasive materials or chemical cleaners.
• Ensure the camera is clean and dry before storing it.
• When not in use for extended periods, store the camera in a cool, dry place, away from direct sunlight.

7. Rješavanje problema

Uobičajene probleme i njihova rješenja potražite u donjoj tablici.

8. Specifikacije

Detailed technical specifications for the Canyon DVR40 Dash Camera.

9. Sigurnosne informacije

• Do not operate the camera or adjust settings while driving. Always pull over to a safe location.
• Ensure the camera is securely mounted and does not obstruct your view od ceste.
• Use only the provided power adapter and cables to prevent damage to the device.
• Do not expose the camera to extreme moisture or liquids.
• Avoid disassembling the device. Refer to qualified service personnel for repairs.
• Držite fotoaparat i pribor izvan dohvata djece.

10. Jamstvo i podrška

For warranty information and technical support, please refer to the warranty card included in your package or visit the official Canyon webmjesto.

Mrežna podrška: https://canyon.eu/support/
