Anern 3600W hibridni solarni inverter - korisnički priručnik

1. Uvod

This manual provides essential information for the safe and efficient operation of your Anern 3600W Hybrid Solar Inverter. This all-in-one unit integrates a 3600W pure sine wave inverter, a 120A MPPT solar charge controller, and a battery charger. It is designed to convert 24V DC power to 110V/120V AC power, suitable for various home backup, RV, and off-grid applications. Please read this manual thoroughly before installation and use.

Figure 1: Anern 3600W Hybrid Solar Inverter (Model Anern-3600)

2. Sigurnosne informacije

Observe the following safety precautions to prevent injury and damage to the inverter or connected equipment:

• Instalaciju mora izvršiti kvalificirano osoblje.
• Osigurajte da sve ožičenje bude u skladu s lokalnim i nacionalnim električnim propisima.
• Ne rastavljajte pretvarač. Unutra nema dijelova koje korisnik može sam servisirati.
• Isključite sve izvore napajanja (PV, bateriju, AC ulaz) prije izvođenja bilo kakvog ožičenja ili održavanja.
• Izbjegavajte kontakt s priključcima pod naponom.
• Install the inverter in a well-ventilated area, away from flammable materials and moisture.
• Osigurajte ispravno uzemljenje pretvarača.
• This inverter is equipped with multiple protection features including overcurrent, low-voltage, short-circuit, overheating, and overload protection.

Figure 2: Inverter Protection Features and Wi-Fi Monitoring Capability

3. Značajke proizvoda

The Anern 3600W Hybrid Solar Inverter offers a range of features for reliable power management:

• Integrirani sustav: Combines a 3600W pure sine wave inverter, 120A MPPT solar charge controller, and battery charger.
• Visoka učinkovitost: Solar charge module utilizes optimized MPPT tracking technology for up to 98% efficiency.
• Kompatibilnost baterije: Supports 24V Lead-Acid (Sealed, AGM, Gel, Flooded) and Lithium batteries. Includes built-in lithium activation.
• Rad bez baterije: Capable of powering loads directly from the PV array without a connected battery.
• Dvostruki AC izlaz: Provides two AC outputs for flexible load management.
• LCD zaslon: Features a responsive RGB LCD screen and indicator LEDs for real-time monitoring and configuration.
• Više načina rada: Offers 4 charging modes and 2 output modes to suit diverse application needs.
• Sveobuhvatna zaštita: Includes protection against overvoltage, podvoltage, reverse polarity, short circuits, overheating, and overload.
• Daljinski nadzor: Supports Wi-Fi monitoring for system control via a mobile application.

Figure 3: Key Specifications and Features Overview

Figure 4: Battery Compatibility and Battery-Free Operation

4. Sadržaj paketa

Provjerite jesu li svi artikli uključeni u vaš paket:

• Anern 3600W Hybrid Solar Inverter (Model Anern-3600)
• Korisnički priručnik (ovaj dokument)
• Mounting accessories (if applicable, check packaging)
• Communication cable (if applicable, for Wi-Fi module)

5. Upute za postavljanje

5.1. Raspakiranje i pregled

Carefully unpack the inverter and inspect it for any shipping damage. If any damage is found, contact your supplier immediately.

5.2. Montiranje pretvarača

Select a suitable location for mounting the inverter. It should be:

• U zatvorenom prostoru, zaštićeno od izravne sunčeve svjetlosti, kiše i prašine.
• Well-ventilated to ensure adequate heat dissipation.
• Mounted vertically on a solid surface.
• Pristupačno za ožičenje i održavanje.

Use appropriate mounting hardware (not always included) to secure the inverter to the wall.

5.3. Spajanje ožičenja

All wiring must be performed with all power sources disconnected. Refer to the wiring diagram (usually found on the inverter or in a detailed wiring section of the full manual) for specific terminal connections.

1. Spajanje baterije: Connect the 24V battery bank to the inverter's battery terminals. Ensure correct polarity (+ to + and - to -). Use appropriately sized cables and fuses.
2. Priključak PV panela: Connect the solar panel array to the PV input terminals. Observe correct polarity and ensure the PV input voltage and current are within the inverter's specifications (Max PV Power 4200W, Max DC Voltage 500VDC).
3. Priključak za AC ulaz (mreža/generator): If connecting to a utility grid or generator, connect the AC input to the designated terminals.
4. Priključak AC izlaza (opterećenja): Connect your AC loads (appliances) to the inverter's AC output terminals. The inverter features dual AC outputs.
5. Uzemljenje: Spojite uzemljenje pretvarača na pouzdano uzemljenje.

5.4. Početno uključivanje i konfiguracija

After all connections are secure and verified:

1. Turn on the battery breaker/switch.
2. Turn on the PV array breaker/switch.
3. If applicable, turn on the AC input breaker.
4. The inverter will power on and the LCD display will illuminate.
5. Use the control buttons on the LCD panel to configure system settings such as charging current, voltage thresholds, and priority modes according to your requirements.

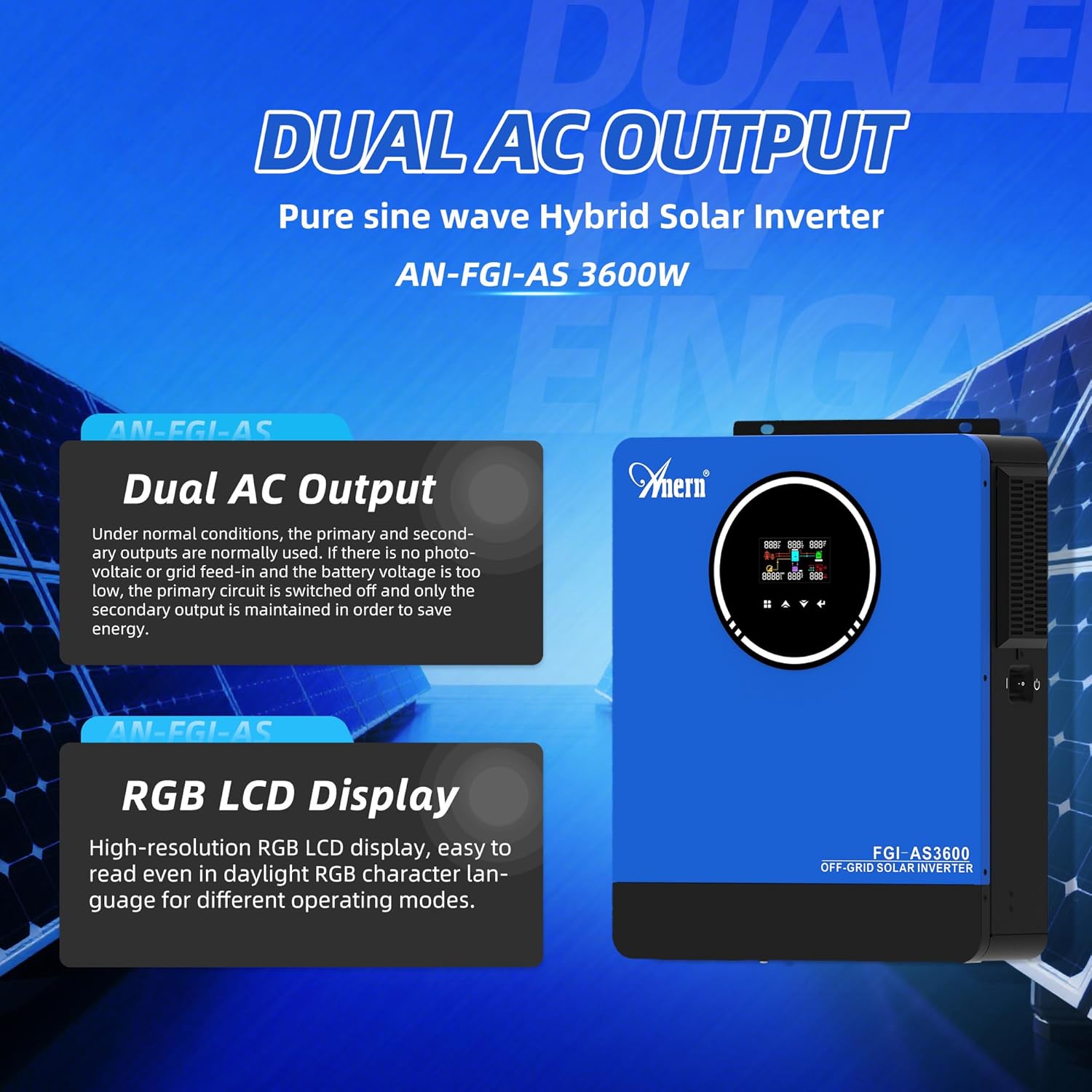

Figure 5: Dual AC Output and RGB LCD Display for Configuration

6. Načini rada

The inverter supports various charging and output modes to optimize power usage.

6.1. Načini punjenja

You can select one of four charging modes:

• Samo solarna energija: The inverter charges the battery exclusively from solar energy.
• Mains Supply Priority: The inverter prioritizes charging from the utility grid (mains supply). Solar energy will supplement if available.
• Solarni prioritet: The inverter prioritizes charging from solar energy. The utility grid will be used if solar power is insufficient.
• Mains Supply and Solar Charging Combination: The inverter uses both mains supply and solar energy to charge the battery simultaneously.

6.2. Izlazni načini rada

The inverter offers two output modes for continuous power supply:

• Power Bypass: In this mode, loads are powered directly from the AC input (utility grid or generator), bypassing the inverter. The inverter acts as a charger.
• Izlaz invertera: Loads are powered by the inverter, drawing energy from the battery or directly from the PV array (if in battery-free mode).

Figure 6: Charging and Output Mode Diagram

7. Održavanje

Redovito održavanje osigurava optimalne performanse i dugovječnost vašeg invertera:

• Čišćenje: Povremeno čistite vanjski dio pretvarača i ventilacijske otvore kako biste spriječili nakupljanje prašine koja može ometati hlađenje. Koristite suhu, meku krpu.
• Provjera veze: Annually inspect all electrical connections for tightness and corrosion. Loose connections can cause overheating and poor performance.
• Provjera zaštite okoliša: Osigurajte da temperatura i vlažnost okoline u kojoj se postavljaju ostanu unutar propisanih raspona.
• Provjera baterije: Ako koristite olovne akumulatore, provjerite razinu elektrolita i stanje terminala prema uputama proizvođača akumulatora.
• Ažuriranja firmvera: Provjerite proizvođača webweb-mjesto za sva dostupna ažuriranja firmvera za poboljšane performanse ili nove značajke.

8. Rješavanje problema

This section provides solutions to common issues. For problems not listed here, contact technical support.

9. Specifikacije

Detailed technical specifications for the Anern 3600W Hybrid Solar Inverter:

10. Jamstvo i podrška

For warranty information, please refer to the documentation provided with your purchase or contact Anern customer service. If you encounter any issues or require technical assistance, please reach out to Anern support through their official webweb-mjesto ili kontaktni kanali.
