1. Uvod
The LAUNCH CRP123I V3.0 Elite OBD2 Scanner is an advanced diagnostic tool designed for comprehensive vehicle system analysis. This device offers enhanced diagnostic capabilities for engine, anti-lock braking system (ABS), supplemental restraint system (SRS), and transmission systems, alongside a suite of reset functions and full OBD2 modes. It features a new processor, Android 8.1 operating system, a 5-inch touchscreen, and a 6000mAh rechargeable battery for efficient and reliable performance.
Slika 1.1: Gotovoview of the LAUNCH CRP123I V3.0 Elite OBD2 Scanner's key features, including 4 system diagnostics and 7 special functions.
Image 1.2: Feature comparison between the CRP123I V3.0 and its predecessor, highlighting upgrades such as DOIP, CANFD, and dual-band WiFi.
2. Sadržaj paketa
Nakon raspakiranja provjerite jesu li sve komponente prisutne:
- CRP123I V3.0 Scan Tool
- OBDII dijagnostički kabel
- USB kabel
- korisnički priručnik
- Torba za nošenje
Image 2.1: The complete package contents, including the scan tool, cables, user manual, and carrying case.
3. Postavljanje
Za početno postavljanje i povezivanje slijedite ove korake:
- Uključivanje: Ensure the device is charged. The CRP123I V3.0 features a 6000mAh rechargeable battery.
- Povežite se s vozilom: Locate your vehicle's OBDII port, typically under the dashboard on the driver's side. Connect the diagnostic cable from the scanner to the vehicle's OBDII port. The device supports OBDII and Type-C connections.
- Početno pokretanje: The scanner will power on automatically or prompt you to press the power button. The 5-inch touchscreen will display the LAUNCH logo and then the main interface.
- Mrežna veza: For updates and online features, connect the device to a Wi-Fi network. The CRP123I V3.0 supports 2.4GHz and 5GHz dual Wi-Fi. Navigate to 'Settings' > 'Wi-Fi' to connect.
- Ažuriranje softvera: It is recommended to perform a software update upon first use to ensure you have the latest features and vehicle coverage. Access the 'Upgrade' menu for one-touch lifetime free updates.

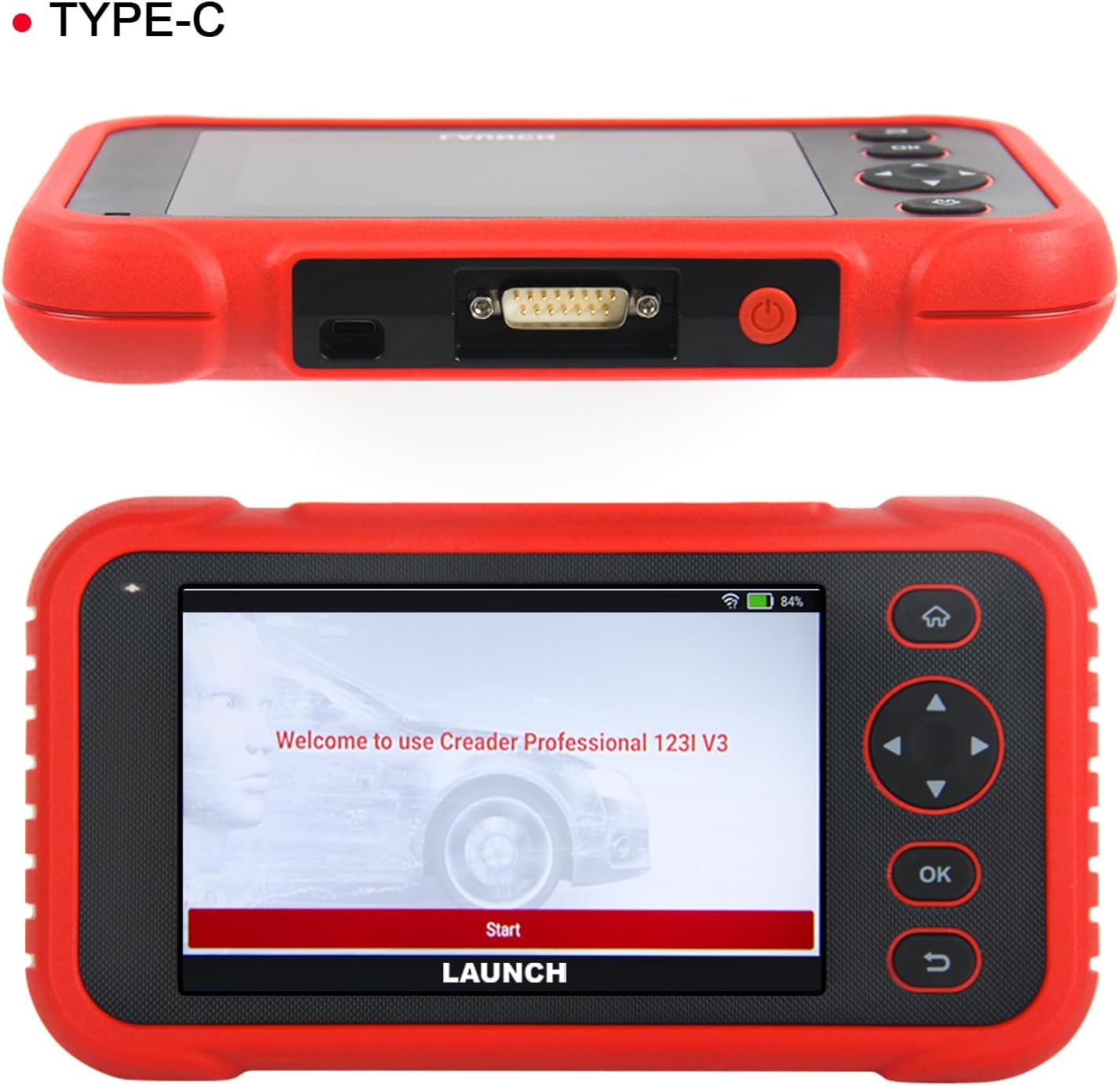

Slika 3.1: Vrh view of the scanner showing the OBDII connector, and front view displaying the initial welcome screen.
4. Upute za rad
4.1. 4-Dijagnostika sustava
The CRP123I V3.0 allows for in-depth diagnostics of four major vehicle systems:
- Sustav motora: Čita i briše kodove grešaka motora, views live data, and turns off the Malfunction Indicator Lamp (MIL).
- Sustav protiv blokiranja kotača (ABS): Diagnoses ABS issues, reads/clears codes, and monitors live data related to braking performance.
- Dodatni sustav zaštite (SRS/zračni jastuk): Detects and clears airbag system fault codes, ensuring proper functionality of safety components.
- Prijenosni sustav: Analyzes transmission performance, reads/clears codes, and displays live data such as transmission temperature.
Image 4.1: Visual representation of the four OE-level systems (Engine, SRS, Transmission, ABS) that the scanner can diagnose.
4.2. 7 funkcija resetiranja
The tool provides 7 frequently used reset functions for common maintenance tasks:
- Resetiranje ulja: Resetira sustav vijeka trajanja ulja nakon izmjene ulja.
- Ponovno učenje električnog gasa: Ponovno uči položaj kućišta leptira za gas nakon čišćenja ili zamjene.
- Steering Angle Reset (SAS): Resetira senzor kuta upravljanja.
- Krvarenje iz ABS-a: Vrši odzračivanje ABS kočnica kako bi se vratila osjetljivost kočnica.
- Usklađivanje baterije (BMS resetiranje): Resetira sustav upravljanja baterijom nakon zamjene baterije.
- Resetiranje kočnice (EPB): Resetira pločice elektroničke ručne kočnice nakon zamjene.
- Resetiranje DPF-a: Vrši regeneraciju filtera dizelskih čestica.
Note: The availability of specific service functions may vary by vehicle make, model, and year.
Image 4.2: An illustration of the seven hot reset services available on the CRP123I V3.0.
4.3. Potpune OBDII funkcije
The CRP123I V3.0 supports all 10 OBDII test modes for comprehensive emissions-related diagnostics:
- Pročitajte kodove: Prikazuje dijagnostičke kodove grešaka (DTC).
- Brisanje kodova: Erases DTCs and turns off the MIL.
- Podaci uživo: Shows real-time data stream from vehicle sensors.
- I/M spremnost: Checks the readiness of emission monitors.
- Zamrzni sliku: Stores a snapshot of vehicle operating conditions when an emission-related fault occurs.
- Test O2 senzora: Dohvaća rezultate ispitivanja monitora O2 senzora.
- Test ugrađenog monitora: Dohvaća rezultate za komponente i sustave pogonskog sklopa povezane s emisijama.
- EVAP test: Pokreće ispitivanje sustava za isparavanje.
- Informacije o vozilu: Retrieves vehicle identification information (VIN, CID, CVN).
- Traženje DTC koda: Pruža definicije za generičke i proizvođačke specifične kodove.
Image 4.3: A comprehensive display of the professional full OBDII functions supported by the scanner.
4.4. Live Data Streams and Smog Test
Monitor up to 4 real-time data streams simultaneously on one screen. This allows for quick diagnosis and verification of repairs without switching views. The I/M Readiness function helps check emission system status, assisting in preparation for smog tests by identifying potential issues like faulty sensors or catalytic converter problems.
Image 4.4: The 4-in-1 live data graphic display feature, enabling visualization and analysis of multiple data streams.
Image 4.5: A real-time voltage monitor display, useful for assessing battery and charging system health.
4.5. Vehicle Identification and Diagnostic Reports
The scanner supports automatic VIN (Vehicle Identification Number) detection for quick vehicle identification. For vehicles that do not support AUTO VIN, you can manually input the VIN. After diagnosis, the tool can generate and allow you to share or print detailed diagnostic reports.
Image 4.6: The AUTO VIN feature, simplifying vehicle identification.
Image 4.7: The VIN scan function and options for sharing and printing diagnostic reports.
4.6. Pokrivenost vozila
The CRP123I V3.0 is compatible with all U.S. road vehicles manufactured after 1996 that comply with OBD2/EOBD/JOBD standards. This includes over 10,000 models, covering most gasoline cars, many 12V diesel vehicles, light-duty trucks, and a small range of gasoline-electric hybrid vehicles. It also supports AutoAuth for FCA SGW to access 2018+ FCA SGW-equipped models.
Image 4.8: An illustration of the extensive vehicle coverage across different regions and vehicle types.
5. Održavanje
To ensure optimal performance and access to the latest features and vehicle compatibility, regularly update the scanner's software. The CRP123I V3.0 offers lifetime free software updates.
- Ažuriranja softvera: Connect the device to Wi-Fi and navigate to the 'Upgrade' section on the main menu to download and install available updates.
- Čišćenje: Za čišćenje uređaja koristite meku, suhu krpu. Izbjegavajte abrazivna sredstva za čišćenje ili otapala.
- Skladištenje: Store the scanner in its carrying case in a cool, dry place when not in use.
Image 5.1: The 'Lifetime Free Updated' feature ensures the scanner remains current with the latest vehicle data and functions.
6. Rješavanje problema
If you encounter issues with the CRP123I V3.0, consider the following:
- Uređaj se ne uključuje: Ensure the battery is charged or the device is properly connected to the vehicle's OBDII port.
- Problemi s vezom: Verify the OBDII cable is securely connected to both the scanner and the vehicle. Ensure the vehicle's ignition is on.
- Nema komunikacije s vozilom: Check if your vehicle is OBDII compliant (generally 1996 and newer for U.S. vehicles). Ensure the vehicle's battery has sufficient voltage.
- Funkcija ne radi: Some functions are vehicle-specific. Confirm compatibility for your vehicle's make, model, and year.
- Spora izvedba: Ensure the device has sufficient memory. Perform regular software updates.
For specific fault code definitions, use the built-in DTC Library or the Fault Codes Google Search feature.
Image 6.1: The DTC Search function, providing quick access to fault code explanations via Google.
7. Specifikacije
| Proizvođač | POKRETANJE |
| Model | CRP123I |
| Operativni sustav | Android 8.1 |
| Veličina zaslona | 5 Inches (720P) |
| Memorija | 32 GB |
| Baterija | 6000 mAh litij-ionska (uključena) |
| Povezivost | 2.4 & 5GHz Dual WiFi, OBDII / Type-C |
| Podržani protokoli | CANFD & DoIP, OBD2/EOBD/JOBD |
| Težina artikla | 2.27 funti |
| Dimenzije paketa | 9.84 x 7.09 x 2.76 inča |
| Automobilska vrsta | Univerzalno pristajanje |
8. Jamstvo i podrška
The LAUNCH CRP123I V3.0 Elite OBD2 Scanner comes with a 5-year warranty. Enjoy lifetime free software updates to keep your diagnostic tool current with the latest features and vehicle compatibility. For any inquiries, technical assistance, or support, please contact our dedicated customer service team.
E-pošta korisničke podrške: nina@hilson.com.cn
Our 24/7 professional service team is committed to providing one-on-one customer service to ensure your satisfaction.
